1989 Porsche 911 A/C & Heating
My Vehicle Change Vehicle
1989 Porsche 911
< Back to View All
Engine & Drivetrain
- Department
- Part Type
- Brands
- Prices
Product Specifications- Clutch Maximum Diameter: 120.0 mm
- Compressor Mount Hole Quantity: 4
- Mounting Type: Bolt Tangent
- OE Part Number: 96412612101, 944126121AX
- Pulley Belt Type: V-Belt
- Refrigerant Type: R12
- UPC: 042511165458

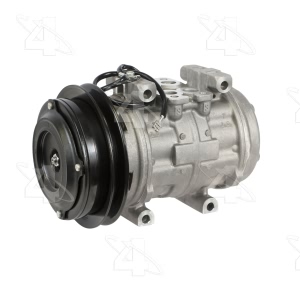

- Part Description: 1989 Porsche 911 A/C Compressor with Clutch
Vehicle Fitment- 1989 Porsche 911 | Carrera 4 | 6 Cyl 3.6L
Product Specifications- Notes: w/ 10PA15C Compressor; New w/ Clutch
- Clutch Included: Yes
- Clutch Maximum Diameter: 5.000
- Coil Clock Position: Wire Lead
- Coil Voltage: 12
- Compatible Refrigerant Oil Type: PAG 46
- Compressor Type: 10PA15C
- Discharge Port Type: Pad Mount
- Distance From Clutch To Mounting Flange: 1.65625
- Mount Distance MM: 41.910
- Mounting Hardware: Not Included
- Mounting Type: Tangent Mount
- New or Reman: New
- O-Ring A Number/Desc: [24156] / Compressor Manifold Port Gasket
- O-Ring A Quantity: 1
- O-Ring B Number/Desc: Not Required
- O-Ring B Quantity: NR
- O-Ring C Number/Desc: Not Required
- O-Ring C Quantity: NR
- Printed Foot Note: May Require use of OE Manifold
- Pulley Belt Type: V-Belt
- Pulley Diameter MM: 127.000
- Pulley Groove Quantity: 1
- Pulley Lip Diameter: 5.000
- Pulley Outside Diameter: 5.000
- Pulley Ridge Diameter: 5.000
- Refrigerant Type: R134a
- Suction Port Type: Pad Mount
- Terminal Type: Butt
- UPC: 096361616776
- Part Description: 1989 Porsche 911 A C Compressor With Clutch
Vehicle Fitment- 1989 Porsche 911 | All Trims | 6 Cyl 3.6L
Product Specifications- Notes: w/ 10PA15C Compressor; New w/o Clutch; May Require use of OE Manifold
- Clutch Included: No
- Coil Clock Position: Non Clutch
- Coil Voltage: NR
- Compatible Refrigerant Oil Type: PAG 46
- Compressor Type: 10PA15C
- Mounting Hardware: Not Included
- Mounting Type: Tangent Mount
- New or Reman: New
- O-Ring A Number/Desc: [24156] / Compressor Manifold Port Gasket
- O-Ring A Quantity: 1
- O-Ring B Number/Desc: Not Required
- O-Ring B Quantity: NR
- Printed Foot Note: May Require use of OE Manifold
- Pulley Belt Type: Non-Clutch
- Pulley Groove Quantity: NR
- Refrigerant Type: R134a
- Suction Port Type: Pad Mount
- UPC: 096361583412
- Part Description: 1989 Porsche 911 A C Compressor Without Clutch
Vehicle Fitment- 1989 Porsche 911 | All Trims | 6 Cyl 3.6L
Product Specifications- Body Diameter: 2.500
- Body Length: 6.500
- Bracket: w/o Bracket
- Connector B Type: Pad Mount
- Connector Type: Pad Mount
- Desiccant: Yes
- Desiccant Replaceable: Not Replaceable
- Dia. MM: 63.500
- Fuse Plug: No
- Gasket / Seals: Included
- In Line Filter Material: Desiccant
- In Line Filter Outlet Fitting Type: Pad Mount
- Inlet Filter Fitting Type: Pad Mount
- Inlet Fitting Diameter: .402
- Inlet Fitting Type: Pad Mount
- Inlet Fraction: 3/8
- Inlet MM: 10.000
- Length MM: 165.100
- Material: Aluminum
- Meets / Exceeds OEM: Yes
- Moisture Indicator Window: No
- Mounting Bracket Included: Hardware not included
- New or Reman: New
- O-Ring A Number/Desc: [24611] / Green O-Ring
- Outlet Fitting Type: Pad Mount
- Outlet Fraction: 3/8
- Outlet IN: .402
- Outlet MM: 10.000
- Overall Depth IN: 6.500
- Overall Depth MM: 165.000
- P. R. V.: No
- Pad Mount: w/ Pad Mount
- Service Port: w/o Service Port
- Sight Glass: No
- Stud: No
- Style: Aluminum Filter Drier w/ Pad Mount
- Switch Port: w/o Switch Port
- UPC: 096361335929
- Part Description: 1989 Porsche 911 A C Receiver Drier
Vehicle Fitment- 1989 Porsche 911 | All Trims | 6 Cyl 3.6L
Product Specifications- Notes: Caps and Valve Core Seal Kit; w/ R12 or R134a Retrofit System
- Cap Color: Red, Blue, Black
- Cap Inside Diameter: Specific
- Cap Material: Plastic
- Material: Aluminum
- Refrigerant Type: R12, R134a
- Style: Cap & Valve Kit
- UPC: 096361267770
- Valve Core Material: Specific
- Part Description: 1989 Porsche 911 A C System Valve Core And Cap Kit
Vehicle Fitment- 1989 Porsche 911 | All Trims | All Engines
Product Specifications- Color: Brass
- Refrigerant Type: R134A
- Super Heat: 8.0
- UPC: 096361386099
- Part Description: 1989 Porsche 911 A C Expansion Valve
Vehicle Fitment- 1989 Porsche 911 | All Trims | All Engines
Product Specifications- Clutch Maximum Diameter: 140.0 mm
- Compressor Mount Hole Quantity: 4
- Mounting Type: Bolt Tangent
- OE Part Number: 93012602101, 930126021AX
- Pulley Belt Type: V-Belt
- Refrigerant Type: R12
- UPC: 042511160248

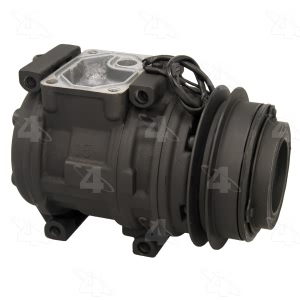

- Part Description: 1989 Porsche 911 Remanufactured A/C Compressor with Clutch
Vehicle Fitment- 1989 Porsche 911 | Carrera | 6 Cyl 3.2L
- 1989 Porsche 911 | Speedster | 6 Cyl 3.2L
- 1989 Porsche 911 | Turbo Carrera | 6 Cyl 3.3L
Product Specifications- Notes: w/60mm ID Duct
- Centerline Length (in): 39.37"
- Inside Diameter 1 (in): 2.36"
- UPC: 072053028157
- Part Description: 1989 Porsche 911 Hvac Control Duct Hose
Vehicle Fitment- 1989 Porsche 911 | All Trims | 6 Cyl 3.3L
- 1989 Porsche 911 | All Trims | 6 Cyl 3.2L
- 1989 Porsche 911 | All Trims | 6 Cyl 3.6L
Product Specifications- Notes: w/ 10P15C Compressor; New w/ Clutch
- Belt Width IN: 0.500
- Belt Width MM: 12.700
- Clutch Included: Yes
- Clutch Maximum Diameter: 5.59375
- Coil Clock Position: Lead Wire
- Coil Voltage: 12
- Compatible Refrigerant Oil Type: PAG 46
- Compressor Type: 10P15C
- Distance From Clutch To Mounting Flange: 1.46875
- Mount Distance MM: 37.084
- Mounting Hardware: Not Included
- Mounting Type: Direct Mount
- New or Reman: New
- O-Ring A Number/Desc: 24613
- O-Ring A Quantity: 4
- O-Ring B Number/Desc: Not Required
- O-Ring B Quantity: NR
- O-Ring C Number/Desc: Not Required
- O-Ring C Quantity: NR
- Printed Foot Note: May Require use of OE Manifold
- Pulley Belt Type: V-Belt
- Pulley Diameter MM: 142.240
- Pulley Groove Quantity: 1
- Pulley Lip Diameter: 5.59375
- Pulley Outside Diameter: 5.59375
- Pulley Ridge Diameter: 5.59375
- Refrigerant Type: R134a
- Terminal Type: Spade
- UPC: 096361783454
- w/ Diode: No

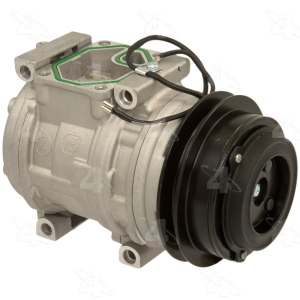

- Part Description: 1989 Porsche 911 A C Compressor With Clutch
Vehicle Fitment- 1989 Porsche 911 | All Trims | 6 Cyl 3.2L
- 1989 Porsche 911 | All Trims | 6 Cyl 3.3L
Product Specifications- Notes: w/Nippondesno 10P15 AC Compressor
- Part Description: 1989 Porsche 911 A/C Compressor Bearing
Vehicle Fitment- 1989 Porsche 911 | All Trims | All Engines
Product Specifications- Notes: OE recommended replacement part.
- UPC: 042511165144
- Part Description: 1989 Porsche 911 A/C Expansion Valve
Vehicle Fitment- 1989 Porsche 911 | All Trims | 6 Cyl 3.6L
Product Specifications- Notes: w/ 10PA15C Compressor; Reman w/ Clutch
- Clutch Included: Yes
- Clutch Maximum Diameter: 5.000
- Coil Clock Position: Wire Lead
- Coil Voltage: 12
- Compatible Refrigerant Oil Type: PAG 46
- Compressor Type: 10PA15C
- Discharge Port Type: Pad Mount
- Distance From Clutch To Mounting Flange: 1.65625
- Mount Distance MM: 41.910
- Mounting Hardware: Not Included
- Mounting Type: Tangent Mount
- New or Reman: Remanufactured
- O-Ring A Number/Desc: [24156] / Compressor Manifold Port Gasket
- O-Ring A Quantity: 1
- O-Ring B Number/Desc: Not Required
- O-Ring B Quantity: NR
- Printed Foot Note: May Require use of OE Manifold
- Pulley Belt Type: V-Belt
- Pulley Diameter MM: 127.000
- Pulley Groove Quantity: 1
- Pulley Lip Diameter: 5.000
- Pulley Outside Diameter: 5.000
- Pulley Ridge Diameter: 5.000
- Refrigerant Type: R134a
- Suction Port Type: Pad Mount
- Terminal Type: Butt
- UPC: 096361617605

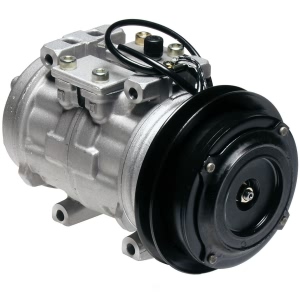

- Part Description: 1989 Porsche 911 Remanufactured A C Compressor With Clutch
Vehicle Fitment- 1989 Porsche 911 | All Trims | 6 Cyl 3.6L
