1989 Saab 9000 A/C & Heating
My Vehicle Change Vehicle
1989 Saab 9000
< Back to View All
Engine & Drivetrain
- Department
- Part Type
- Brands
- Prices
Product Specifications- Notes: w/ SD709 Compressor; New w/ Clutch
- Belt Width IN: 0.500
- Belt Width MM: 12.700
- Clutch Included: Yes
- Clutch Maximum Diameter: 5.125
- Coil Clock Position: Wire Lead
- Coil Voltage: 12
- Comp Head Prt Config: Top-Vert-Pad
- Compatible Refrigerant Oil Type: PAG 100
- Compressor Head Type: QK/QU
- Compressor Type: SD709
- Discharge Port Type: O-Ring
- Distance From Clutch To Mounting Flange: 1.203125
- Mount Distance B IN: 1.796875
- Mount Distance B MM: 45.720
- Mount Distance MM: 30.480
- Mounting Hardware: Not Included
- Mounting Type: Ear Mount
- New or Reman: New
- O-Ring A Number/Desc: [24615] / Green O-Ring
- O-Ring A Quantity: 2
- O-Ring B Number/Desc: Not Required
- O-Ring B Quantity: NR
- O-Ring C Number/Desc: Not Required
- O-Ring C Quantity: NR
- Pulley Belt Type: Serpentine
- Pulley Diameter MM: 130.048
- Pulley Groove Quantity: 2
- Pulley Lip Diameter: 5.125
- Pulley Outside Diameter: 5.125
- Pulley Ridge Diameter: 5.125
- Refrigerant Type: R134a
- Suction Port Type: O-Ring
- Terminal Type: Bullet
- UPC: 096361685598

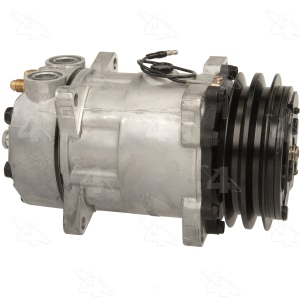

- Part Description: 1989 Saab 9000 A C Compressor With Clutch
Vehicle Fitment- 1989 Saab 9000 | All Trims | All Engines
Product Specifications- Core Depth Fraction: 3-3/4; 3-5/8
- Core Depth MM: 92.075; 95.250
- Core Height Fraction: 9
- Core Height MM: 228.600
- Core Width Fraction: 12-3/8
- Core Width MM: 314.325
- Depth: 3.625; 3.750
- Height: 9.000
- Inlet Fitting Outside Diameter: No. 8
- Material: Aluminum
- O-Ring A Number/Desc: [24131] / Green O-Ring
- O-Ring A Quantity: 1
- O-Ring B Number/Desc: [24610] / Green O-Ring
- O-Ring B Quantity: 1
- O-Ring C Number/Desc: [24604] / Green O-Ring
- O-Ring C Quantity: 1
- Outlet Fitting Outside Diameter: No. 10
- UPC: 096361546363
- Width: 12.375

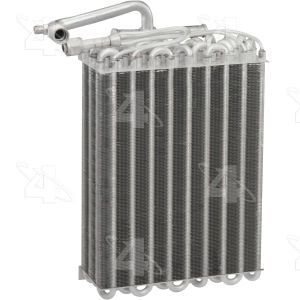

- Part Description: 1989 Saab 9000 A C Evaporator Core
Vehicle Fitment- 1989 Saab 9000 | All Trims | All Engines
Product Specifications- Notes: Caps and Valve Core Seal Kit; w/ R12 or R134a Retrofit System
- Cap Color: Red, Blue, Black
- Cap Inside Diameter: Specific
- Cap Material: Plastic
- Material: Aluminum
- Refrigerant Type: R12, R134a
- Style: Cap & Valve Kit
- UPC: 096361267770
- Valve Core Material: Specific
- Part Description: 1989 Saab 9000 A C System Valve Core And Cap Kit
Vehicle Fitment- 1989 Saab 9000 | All Trims | All Engines
Product Specifications- Connector Pin Qty: 5
- Connector Shape: Other design
- Gender: Female
- Printed Foot Note: Harness Connector for Bosch Relays 4 or 5
- Style: Harness Connector
- Terminal Gender: Female
- Terminal Quantity: 5
- UPC: 096361372108
- Wire Length IN: 6.000
- Part Description: 1989 Saab 9000 A C Clutch Control Relay Harness Connector
Vehicle Fitment- 1989 Saab 9000 | All Trims | All Engines
Product Specifications- Notes: New Part
- Color: Brass
- Refrigerant Type: R134A
- Super Heat: 8.0
- UPC: 096361386099

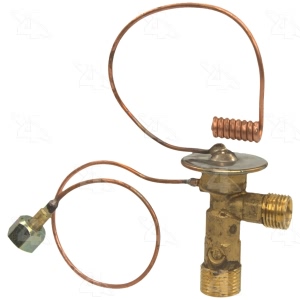

- Part Description: 1989 Saab 9000 A C Expansion Valve
Vehicle Fitment- 1989 Saab 9000 | All Trims | All Engines
Product Specifications- Notes: w/Sandend SD-709 AC Compressor
- Part Description: 1989 Saab 9000 A/C Compressor Clutch Ball Bearing
Vehicle Fitment- 1989 Saab 9000 | All Trims | All Engines
Product Specifications- Notes: w/ SS-170PSS Compressor; Reman w/ Clutch
- Belt Width IN: 0.500
- Clutch Included: Yes
- Clutch Maximum Diameter: 5.250
- Coil Clock Position: Wire Lead
- Coil Voltage: 12
- Compatible Refrigerant Oil Type: PAG 46
- Compressor Type: SS-170PSS
- Discharge Port Type: O-Ring
- Distance From Clutch To Mounting Flange: 1.34375
- Mounting Hardware: Not Included
- Mounting Type: Ear Mount
- New or Reman: Remanufactured
- O-Ring A Number/Desc: [24615] / Green O-Ring
- O-Ring A Quantity: 2
- O-Ring B Number/Desc: Not Required
- O-Ring B Quantity: NR
- Pulley Belt Type: V-Belt
- Pulley Diameter MM: 133.350
- Pulley Groove Quantity: 1
- Pulley Lip Diameter: 5.250
- Pulley Outside Diameter: 5.250
- Pulley Ridge Diameter: 5.250
- Refrigerant Type: R134a
- Suction Port Type: O-Ring
- Switch Included: Heat Sensor
- Terminal Type: Spade
- UPC: 096361574991

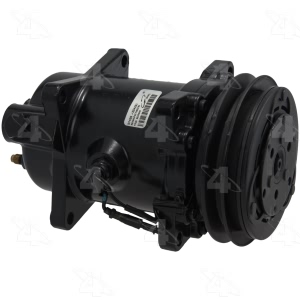

- Part Description: 1989 Saab 9000 Remanufactured A C Compressor With Clutch
Vehicle Fitment- 1989 Saab 9000 | All Trims | All Engines
