1993 Mazda RX-7 A/C & Heating
My Vehicle Change Vehicle
1993 Mazda RX-7
$24.93Product Specifications- Notes: Japan Built; DENSO is the OE supplier for this vehicle; OE-specified O-rings Incld.
- OE Part Number: 885153301083, 8851533010, MB878067, 8851528040, FD0461J14, 8851514062, 8851528020, 8851506030, 8851514061, 8851514060
- Type: Block valve
- UPC: 042511223103

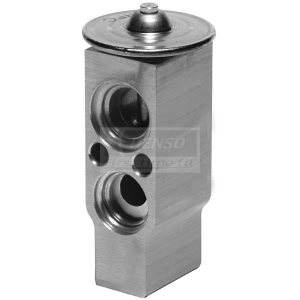

- Part Description: 1993 Mazda RX-7 A/C Expansion Valve
Vehicle Fitment- 1993 Mazda RX-7 | All Trims | 2 Cyl 1.3L
$40.65Product Specifications- Notes: Cut to Length, 17";Cut to Length, 16"
- Centerline Length: 50 ft
- End 1 Inside Diameter: 10 mm
- End 2 Inside Diameter: .375 in
- Material: EPDM
- OE Part Number: 8899
- UPC: 072053081183
- Weight Per Length: 8.25 lbs./Carton
- Working Pressure: 60 PSI
- Part Description: 1993 Mazda RX-7 Safety Stripe Hvac Heater Hose
Vehicle Fitment- 1993 Mazda RX-7 | All Trims | 2 Cyl 1.3L
$114.60Product Specifications- Notes: w/ TV12 Compressor; New
- Belt Type: Serpentine
- Belt Width IN: 0.875
- Can Size: w/ Coil
- Clutch Maximum Diameter: 5.250
- Coil: w/ Coil
- Coil Voltage: 12
- Color: Black
- Distance From Clutch To Mounting Flange: 1.46875
- Groove: 6
- Lead Wire : Lead Wires
- Material: Steel
- Meets / Exceeds OEM: Yes
- Mounting Type: Snap Ring
- Printed Foot Note: May Require use of OE Manifold
- Rotation: CCW-CW
- Style: 10PA
- Thermal Or Non Thermal: NR
- UPC: 096361475700
- Part Description: 1993 Mazda RX-7 A C Compressor Clutch
Vehicle Fitment- 1993 Mazda RX-7 | All Trims | All Engines
$43.49Product Specifications- Notes: Cut to Length, 5"
- Centerline Length (in): 600"
- Inside Diameter 1 (in): 0.3125"
- OE Part Number: 49692
- UPC: 072053133226
- Weight Per Length: 7.25 lbs./Carton
- Working Pressure (psi): 60
- Part Description: 1993 Mazda RX-7 Safety Stripe Hvac Heater Hose
Vehicle Fitment- 1993 Mazda RX-7 | All Trims | 2 Cyl 1.3L
$27.90Product Specifications- Color: Black
- Contains Heat Shield: N
- Contains Protective Sleeve: Y
- End 1 Inside Diameter: 5/8
- End 2 Inside Diameter: 5/8
- Hose Type: Single I.D. Hose
- Material: EPDM
- SAE Specification: SAE J20R3 Class D-1, SAE J1684 Type EC
- Trunk Height: 17
- UPC: 036687543691
- Part Description: 1993 Mazda RX-7 Small Id Hvac Heater Hose
Vehicle Fitment- 1993 Mazda RX-7 | All Trims | All Engines
$36.54Product Specifications- Notes: Cut to fit
- Centerline Length (in): 19.8"
- Inside Diameter 1 (in): 0.62"
- Number of Branches: 0
- UPC: 072053180244
- Part Description: 1993 Mazda RX-7 Hvac Heater Molded Hose
Vehicle Fitment- 1993 Mazda RX-7 | All Trims | 2 Cyl 1.3L
$48.26Product Specifications- Notes: w/o Wheel
- Cage Wheel Included: w/o Wheel
- Connector Gender: None
- Connector qty: None
- Flanged End: Yes
- Material: Metal
- Motor Diameter: 3.250
- Motor Length: 4.125
- Mount Type: OE Mount
- New or Reman: New
- Number of Terminals: Connector Not Included
- O.E. Replacement: Yes
- Rotation: CW/CCW
- Shaft Diameter: 0.3125
- Shaft Length: 1.3125
- Shaft Shape: D-Shaped
- Shaft Type: D-Shaped
- Style: Flanged
- Terminal Type: 2 Lead Wires
- UPC: 096361350113
- Vented: Vented
- Voltage: 12
- Wheel Dia. IN: Yes
- Part Description: 1993 Mazda RX-7 Hvac Blower Motor Without Wheel
Vehicle Fitment- 1993 Mazda RX-7 | All Trims | All Engines
$17.55Product Specifications- Connector Shape: Rectangle
- Gender: Male
- Style: Harness Connector
- Terminal Gender: Female
- Terminal Quantity: 4
- UPC: 096361372573
- Part Description: 1993 Mazda RX-7 A C Clutch Control Relay Harness Connector
Vehicle Fitment- 1993 Mazda RX-7 | All Trims | All Engines
$8.91Product Specifications- Notes: Cut to fit
- Centerline Length (in): 7.2"
- Inside Diameter 1 (in): 0.62"
- Number of Branches: 0
- OE Part Number: 42847
- UPC: 072053179231
- Part Description: 1993 Mazda RX-7 Hvac Heater Molded Hose
Vehicle Fitment- 1993 Mazda RX-7 | All Trims | 2 Cyl 1.3L
$15.31Product Specifications- Body Diameter: 2.250
- Body Length: 6.000
- Bracket: w/o Bracket
- Connector B Type: Pad Mount
- Connector Type: Pad Mount
- Desiccant: Yes
- Desiccant Replaceable: Not Replaceable
- Dia. MM: 57.150
- Fuse Plug: No
- Gasket / Seals: Included
- In Line Filter Material: Desiccant
- In Line Filter Outlet Fitting Type: Pad Mount
- Inlet Filter Fitting Type: Pad Mount
- Inlet Fitting Diameter: 0.500
- Inlet Fitting Type: Pad Mount
- Inlet Fraction: 1/2
- Length MM: 152.400
- Material: Aluminum
- Meets / Exceeds OEM: Yes
- Moisture Indicator Window: No
- Mounting Bracket Included: Hardware not included
- New or Reman: New
- O-Ring A Number/Desc: [24646] / Green Round O/Ring
- Outlet Fitting Type: Pad Mount
- Outlet Fraction: 1/2
- Outlet IN: .342
- Outlet MM: 12.26
- Overall Depth IN: 6.000
- Overall Depth MM: 152.400
- P. R. V.: No
- Pad Mount: w/ Pad Mount
- Service Port: w/o Service Port
- Sight Glass: No
- Stud: No
- Style: Aluminum Filter Drier w/ Pad Mount
- Switch Port: w/o Switch Port
- UPC: 096361332379
- Part Description: 1993 Mazda RX-7 A C Receiver Drier
Vehicle Fitment- 1993 Mazda RX-7 | All Trims | All Engines
$5.24Product Specifications- Notes: Cut to fit
- Centerline Length (in): 7.1"
- Inside Diameter 1 (in): 0.31"
- Number of Branches: 0
- UPC: 072053178234
- Part Description: 1993 Mazda RX-7 Hvac Heater Molded Hose
Vehicle Fitment- 1993 Mazda RX-7 | All Trims | 2 Cyl 1.3L
$14.75Product Specifications- Notes: O-Ring and Gasket Seal Kit
- Material: Green Rubber O-Rings
- Style: O-Ring & Gasket Kit
- UPC: 096361267541
- Part Description: 1993 Mazda RX-7 A C System O Ring And Gasket Kit
Vehicle Fitment- 1993 Mazda RX-7 | All Trims | All Engines
$12.75Product Specifications- Notes: Caps and Valve Core Seal Kit; w/ R12 or R134a Retrofit System
- Cap Color: Red, Blue, Black
- Cap Inside Diameter: Specific
- Cap Material: Plastic
- Material: Aluminum
- Refrigerant Type: R12, R134a
- Style: Cap & Valve Kit
- UPC: 096361267770
- Valve Core Material: Specific
- Part Description: 1993 Mazda RX-7 A C System Valve Core And Cap Kit
Vehicle Fitment- 1993 Mazda RX-7 | All Trims | All Engines
Product Specifications- Connector Gender: Female
- Connector Shape: Rectangle
- Meets / Exceeds OEM: Yes
- Number of Terminals: 4
- Speed: Fixed # 3
- Terminal Type: Spade
- UPC: 096361201798
- Part Description: 1993 Mazda RX-7 Hvac Blower Motor Resistor
Vehicle Fitment- 1993 Mazda RX-7 | All Trims | All Engines
Product Specifications- Notes: Japan Built;Japan Built; DENSO is the OE Supplier for this Vehicle; OE-specified O-rings Incld.
- UPC: 042511075054

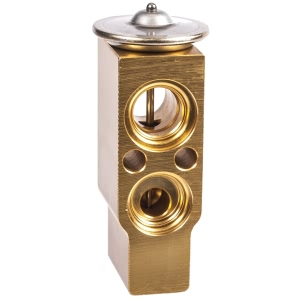

- Part Description: 1993 Mazda RX-7 A/C Expansion Valve
Vehicle Fitment- 1993 Mazda RX-7 | All Trims | 2 Cyl 1.3L
