1994 Geo Metro Fuel Systems & Components
My Vehicle Change Vehicle
1994 Geo Metro
< Back to View All
Engine & Drivetrain
- Department
- Part Type
- Brands
- Prices
Product Specifications- Notes: Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
- Current Draw: 3
- Flow Rating: 19 gph
- Fuel Type: Gas
- Gasket or Seal Included: No
- In Tank or External: In Tank
- Inlet Outside Diameter: 0.438''
- Inlet Type: Straight
- Internal or External Strainer: External
- Item Grade: Standard Replacement
- Maximum Pressure: 109.0 PSI
- Outlet Outside Diameter: 0.344''
- Outlet Type: Hose Bead
- Pump Type: Electric
- Strainer Included: Yes
- System Pressure: 14.5 psi
- Terminal Gender: Male
- Terminal Quantity: 2
- Terminal Type: Blade
- UPC: 689604269992
- Voltage: 12.0 VDC
- Wiring Harness Included: No
- Part Description: 1994 Geo Metro Fuel Pump And Strainer Set
Vehicle Fitment- 1994 Geo Metro | All Trims | 3 Cyl 1.0L
Product Specifications- Cam Type: Threaded
- Cap Depth: 2.38"
- Locking: Yes
- Neck Diameter: 1.77"
- Shell Diameter: 2.75"
- Type: Pre-Release Locking Fuel Cap
- UPC: 072053416091
- Venting: Emission Control
- Part Description: 1994 Geo Metro Pre Release Locking Fuel Tank Cap
Vehicle Fitment- 1994 Geo Metro | All Trims | 3 Cyl 1.0L
Product Specifications- Notes: Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
- Item Grade: Standard Replacement
- Micron Rating: 60
- Strainer Material: Polyester
- UPC: 689604033265
- Part Description: 1994 Geo Metro Fuel Pump Strainer
Vehicle Fitment- 1994 Geo Metro | All Trims | 3 Cyl 1.0L
Product Specifications- Cam Type: Threaded
- Cap Depth: 2.61"
- Locking: Yes
- Neck Diameter: 1.77"
- Shell Diameter: 2.91"
- Type: Regular Fuel Cap
- UPC: 072053021455
- Venting: Emission Control
- Part Description: 1994 Geo Metro Locking Fuel Tank Cap
Vehicle Fitment- 1994 Geo Metro | All Trims | 3 Cyl 1.0L
Product Specifications- Cam Type: Threaded
- Cap Depth: 2.05"
- Locking: No
- Neck Diameter: 1.77"
- Shell Diameter: 2.78"
- Type: OE Equivalent Fuel Cap
- UPC: 072053021325
- Venting: Emission Control
- Part Description: 1994 Geo Metro Replacement Non Locking Fuel Tank Cap
Vehicle Fitment- 1994 Geo Metro | All Trims | 3 Cyl 1.0L
Product Specifications- Cam Type: Threaded
- Cap Depth: 2.14"
- Locking: No
- Neck Diameter: 1.77"
- Shell Diameter: 2.81"
- Type: Pre-Release Fuel Cap
- UPC: 072053107760
- Venting: Emission Control
- Part Description: 1994 Geo Metro Pre Release Non Locking Fuel Tank Cap
Vehicle Fitment- 1994 Geo Metro | All Trims | 3 Cyl 1.0L
Product Specifications- Class: W
- Duty Type: LD
- Height: 4.000''
- Inlet: 8 MM
- Inner Diameter Top: Closed
- MediaType: Cellulose
- Micron: 0.00 Micron
- Outer Diameter Top: 3.390''
- Outlet: 8 MM
- Style: Fuel (Complete In-Line) Filter
- UPC: 765809332843
- Part Description: 1994 Geo Metro Complete In-Line Fuel Filter
Vehicle Fitment- 1994 Geo Metro | All Trims | 3 Cyl 1.0L
- 1994 Geo Metro | All Trims | 4 Cyl 1.3L
Product Specifications- Gasket Included: N
- Hazardous Material: No
- Inlet Count: 1
- Inlet Type: Strainer
- Item Grade: Standard Replacement
- Maximum Free Flow Rate (gph): 45
- Maximum Pressure Rate (psi): 60
- Minimum Free Flow Rate (gph): 45
- Minimum Pressure Rate (psi): 40
- Outlet Count: 1
- Outlet Size: 5/16
- Outlet Type: Hose Bead
- Package Contents: Pump & Kit
- Package Quantity: 1
- Warranty: Lifetime Limited Warranty

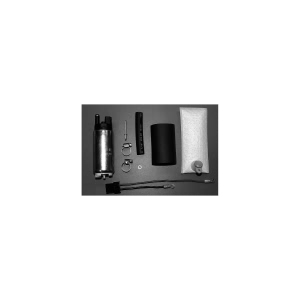

- Part Description: 1994 Geo Metro In-Tank Electric Fuel Pump
Vehicle Fitment- 1994 Geo Metro | All Trims | 3 Cyl 1.0L
Product Specifications- Notes: Exhaust stock and reorder
- Amperage: 30 A
- Connector Gender: Male
- Mounting Style: With bracket
- OE Part Number: 4320629
- Style: Exposed terminals
- Terminal Gender: Male
- Terminal Quantity: 5
- Terminal Type: Blade
- UPC: 841266052156
- Voltage: 12 V
- Part Description: 1994 Geo Metro Fuel Pump Relay
Vehicle Fitment- 1994 Geo Metro | All Trims | All Engines
Product Specifications- Average Current Draw(A): 2.5
- Average Flow Rating(GPH): 75
- Country of Orign: China
- Gasket or Seal Included: No
- Gasket Or Seal Material: FKM
- In Tank or External: In Tank
- Inlet Size: 0.531
- Inlet Type: Strainer
- Installation Warnings: No
- Maximum Pump Pressure (PSI): 60
- Minimum Pump Pressure (PSI): 40
- Negative Ground: No
- Outlet Quantity: 1
- Outlet Size: 0.335
- Outlet Type: Hose
- Product Height (in): 1.5
- Product Length (in): 4.57
- Product Width (in): 1.5
- Pump Type: Turbine
- Regulator Included: No
- Strainer Included: No
- Terminal Gender: Male
- Terminal Quantity: 2
- Terminal Type: Chip
- UPC: 00072845140876
- Voltage: 12V
- Weight (lbs): 0.64
- Wire Harness Included: No
- Part Description: 1994 Geo Metro Electric Fuel Pump
Vehicle Fitment- 1994 Geo Metro | All Trims | 3 Cyl 1.0L
Product Specifications- Notes: Color Black; Part Attributes W/ Threaded Filler Neck; Part Replacement Replaces 48349
- Cam Type: Threaded
- Cap Depth: 2.48"
- Neck Diameter: 1.77"
- Shell Diameter: 2.91"
- UPC: 033342062283
- Venting: Emission Control
- Part Description: 1994 Geo Metro Fuel Tank Cap
Vehicle Fitment- 1994 Geo Metro | All Trims | 3 Cyl 1.0L
Product Specifications- Filter Material: Gradient Density
- Gasket or Seal Included: No
- Inlet Count: 1
- Inlet Type: PUSH FIT
- Internal or External: Internal
- Internet Product Code (IPC): 2F10BBB5DAC
- Item Grade: OEM Standard Part
- Item has MSDS (SDS): No
- MFG Brand Name: Airtex Products
- MFG Model # (Series): FS149
- Mounting Hardware Included: No
- Outlet Count: 1
- Package Contents: PUMP & KIT
- Package Quantity: 1
- Smallest Filtered Particle (microns): 60
- Supplier Company Name: Airtex Products
- UPC: 080044131359
- Part Description: 1994 Geo Metro Fuel Pump Strainer
Vehicle Fitment- 1994 Geo Metro | All Trims | 3 Cyl 1.0L
Product Specifications- Notes: 12V; IN-TANK
- UPC: 760687051152
- Part Description: 1994 Geo Metro Fuel Pump
Vehicle Fitment- 1994 Geo Metro | All Trims | 3 Cyl 1.0L
Product Specifications- Notes: Threaded; Threaded Adapter Connected to Tester
- Cam Type: Threaded
- Color: Black
- UPC: 033342062443
- Part Description: 1994 Geo Metro Black Fuel Cap Tester Adapter
Vehicle Fitment- 1994 Geo Metro | All Trims | 3 Cyl 1.0L
- 1994 Geo Metro | All Trims | 4 Cyl 1.3L
Product Specifications- Notes: Color Black; Part Attributes W/ Threaded Filler Neck; Part Replacement Replaces 48349
- Cam Type: Threaded
- Cap Depth: 1.78"
- Neck Diameter: 1.77"
- Shell Diameter: 2.61"
- UPC: 033342062191
- Venting: Emission Control
- Part Description: 1994 Geo Metro Fuel Tank Cap
Vehicle Fitment- 1994 Geo Metro | All Trims | 3 Cyl 1.0L
Product Specifications- Notes: Color Black
- Cap Depth: 2.375
- Color: Black
- Fuel Cap Venting: Emission Control
- Locking: Yes
- Material: Plastic
- Neck Diameter: 1.750
- Shell Diameter: 2.750
- Tether Included: No
- UPC: 333420190106
- Part Description: 1994 Geo Metro Pre-Release Keyed Alike Fuel Cap
Vehicle Fitment- 1994 Geo Metro | All Trims | 3 Cyl 1.0L
Product Specifications- Notes: Color Black
- Cap Depth: 2.625
- Color: Black
- Fuel Cap Venting: Emission Control
- Locking: Yes
- Material: Plastic
- Neck Diameter: 1.750
- Shell Diameter: 2.938
- Tether Included: No
- UPC: 333420179170
- Part Description: 1994 Geo Metro Regular Keyed Alike Fuel Cap
Vehicle Fitment- 1994 Geo Metro | All Trims | 3 Cyl 1.0L
