1998 Saab 900 Driveline, Axles & 4WD
My Vehicle Change Vehicle
1998 Saab 900
< Back to View All
Engine & Drivetrain
- Department
- Part Type
- Brands
- Prices
Product Specifications- Notes: w/ZF 4HP-18Q Trans
- Part Description: 1998 Saab 900 Driver Side Differential Bearing
Vehicle Fitment- 1998 Saab 900 | All Trims | All Engines
Product Specifications- Notes: w/Saab F25 Trans;Saab F25
- Bore (Inch): 1.9685
- Bore (mm): 50.00
- Cone Length (Inch): 0.7874
- Cone Length (mm): 20.00
- Cone Radius (Inch): 0.0591
- Cone Radius (mm): 1.5000
- Cup Length (Inch): 0.6102
- Cup Length (mm): 15.4990
- Cup Radius (Inch): 0.0200
- Cup Radius (mm): 0.5080
- Design: ISO Metric
- Outside Diameter (Inch): 3.1496
- Outside Diameter (mm): 80.00
- Series: 32000
- Standout (Inch): 0.1772
- Standout (mm): 4.5000
- Type: TS
- UPC: 724956092055
- Width (Inch): 0.7874
- Width (mm): 20.00
- Part Description: 1998 Saab 900 Differential Bearing
Vehicle Fitment- 1998 Saab 900 | All Trims | 4 Cyl 2.0L
- 1998 Saab 900 | All Trims | 4 Cyl 2.3L
- 1998 Saab 900 | All Trims | All Engines
Product Specifications- ABS Ring Included: Yes
- ABS Ring Tooth Count: 29
- Axle Nut Locking Type: Self Lock
- Input Shaft Connection Style: Spline
- Input Shaft Spline Count: 34
- Length: 22 15/16" to 23 3/16"
- Output Shaft Connection Style: Spline
- Output Shaft Spline Count: 33
- Product Condition: Remanufactured
- Spindle Nut Hex Head Size: 32mm
- Spindle Nut Included: Yes
- Spindle Nut Thread Size: M22 x 1.5

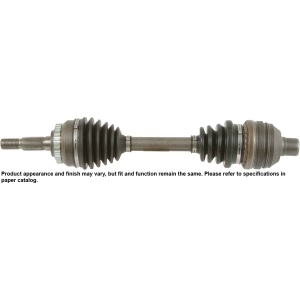

- Part Description: 1998 Saab 900 Remanufactured CV Axle Assembly
Vehicle Fitment- 1998 Saab 900 | All Trims | 4 Cyl 2.3L
Product Specifications- ABS Ring Included: Yes
- ABS Ring Tooth Count: 29
- Axle Nut Locking Type: Self Lock
- Input Shaft Connection Style: Spline
- Input Shaft Spline Count: 34
- Length: 23 5/16"
- Output Shaft Connection Style: Spline
- Output Shaft Spline Count: 33
- Product Condition: Remanufactured
- Spindle Nut Hex Head Size: 32mm
- Spindle Nut Included: Yes
- Spindle Nut Thread Size: M22 x 1.5

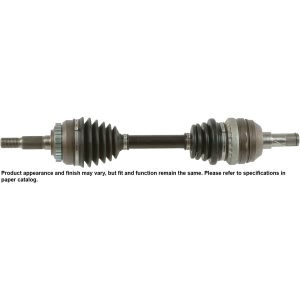

- Part Description: 1998 Saab 900 Remanufactured CV Axle Assembly
Vehicle Fitment- 1998 Saab 900 | All Trims | 4 Cyl 2.0L
- 1998 Saab 900 | All Trims | 4 Cyl 2.3L
Product Specifications- ABS Ring Included: Yes
- ABS Ring Tooth Count: 29
- Axle Nut Locking Type: Self Lock
- Input Shaft Connection Style: Spline
- Input Shaft Spline Count: 34
- Length: 22 1/16" to 21 7/8"
- Output Shaft Connection Style: Spline
- Output Shaft Spline Count: 33
- Product Condition: Remanufactured
- Spindle Nut Hex Head Size: 32mm
- Spindle Nut Included: Yes
- Spindle Nut Thread Size: M22 x 1.5

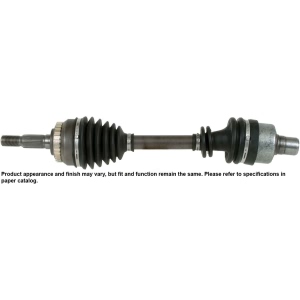

- Part Description: 1998 Saab 900 Remanufactured CV Axle Assembly
Vehicle Fitment- 1998 Saab 900 | All Trims | 4 Cyl 2.3L
Product Specifications- ABS Count: 29
- ABS Style: Teeth
- IBJ Spline Count: 34
- IBJ Type: Male
- Length: 23 3/8"
- OBJ Spline Count: 33
- UPC: 883331620075
- Part Description: 1998 Saab 900 Front Driver Side CV Axle Assembly
Vehicle Fitment- 1998 Saab 900 | All Trims | 4 Cyl 2.0L
- 1998 Saab 900 | All Trims | 4 Cyl 2.3L
- 1998 Saab 900 | All Trims | All Engines
Product Specifications- Notes: w/ZF 4HP-18Q Trans
- Bore: 1.378"
- Design: Single Row Radial
- Inner Race Bore (Inch): 1.378
- Inner Race Radius (Inch): 0.040
- Inner Race Width (Inch): 0.551
- Outer Race Outside Diameter (Inch): 2.441
- Outer Race Radius (Inch): 0.040
- Outer Race Width (Inch): 0.551
- Outside Diameter: 2.441"
- Series: 100
- Type: A-1
- Width: 0.551"
- Part Description: 1998 Saab 900 Driveshaft Center Support Bearing
Vehicle Fitment- 1998 Saab 900 | All Trims | All Engines
Product Specifications- ABS Count: 29
- ABS Style: Teeth
- IBJ Spline Count: 34
- IBJ Type: Female
- Length: 21 15/16"
- OBJ Spline Count: 33
- UPC: 883331620082
- Part Description: 1998 Saab 900 Front Passenger Side CV Axle Assembly
Vehicle Fitment- 1998 Saab 900 | All Trims | 4 Cyl 2.3L
Product Specifications- Notes: w/ZF 4HP-18Q Trans
- Cup Bore: 3.5000" / 88.9 mm
- Cup Length: 0.5312" / 13.492 mm
- Cup Radius: 0.0780" / 1,981 mm
- Part Description: 1998 Saab 900 Differential Bearing Race
Vehicle Fitment- 1998 Saab 900 | All Trims | All Engines
Product Specifications- ABS Ring Included: Yes
- ABS Ring Tooth Count: 29
- Axle Nut Locking Type: Self Lock
- Compressed Length: 21 3/8" To 21 5/8"
- E-Waste: No
- Input Shaft Connection Style: Spline
- Input Shaft Spline Count: 34
- Output Shaft Connection Style: Spline
- Output Shaft Spline Count: 33
- Package Contents: Complete Axle
- Product Condition: Remanufactured
- Spindle Nut Hex Head Size: 32mm
- Spindle Nut Included: Yes
- Spindle Nut Thread Size: M22 x 1.5
- UPC: 082617693240
- Part Description: 1998 Saab 900 Remanufactured CV Axle Assembly
Vehicle Fitment- 1998 Saab 900 | All Trims | 4 Cyl 2.3L
