2002 Mazda Protege A/C & Heating
My Vehicle Change Vehicle
2002 Mazda Protege
$44.30Product Specifications- Connector Quantity: 1
- Connector Type: Male
- Fan Blade Material: Plastic
- Mount Type: Brushed
- OE Part Number: FS2V15035F, FS2V15035D, RF1S15140, RF1S15150, ZM0515210A, FS2V15035B, FS2V15035A, FS2V15035C, MA3115138, MA3112108, MA3114101
- Package Contents: Condenser Fan Assembly
- Package Quantity: 1
- Packaging Type: Box
- Shroud Included: Yes
- Shroud Material: Plastic
- Terminal Quantity: 2
- UPC: 019495038351
- Part Description: 2002 Mazda Protege A C Condenser Fan Assembly
Vehicle Fitment- 2002 Mazda Protege | All Trims | 4 Cyl 2.0L
$20.26Product Specifications- Centerline Length (in): 24.8"
- Inside Diameter 1 (in): 0.63"
- Number of Branches: 0
- UPC: 072053541786
- Part Description: 2002 Mazda Protege Hvac Heater Molded Hose
Vehicle Fitment- 2002 Mazda Protege | All Trims | 4 Cyl 2.0L
$228.26Product Specifications- Notes: w/ H12AOAH4JU Compressor; Reman w/ Clutch
- Clutch Included: Yes
- Clutch Maximum Diameter: 4.859375
- Coil Clock Position: Wire Lead
- Coil Voltage: 12
- Compatible Refrigerant Oil Type: PAG 100
- Compressor Type: H12A0AH4JU
- Discharge Port Type: O-Ring
- Distance From Clutch To Mounting Flange: 1.40625
- Mount Distance MM: 35.560
- Mounting Hardware: Not Included
- Mounting Type: Tangent Mount
- New or Reman: Remanufactured
- O-Ring A Number/Desc: [24608] / Green O-Ring
- O-Ring A Quantity: 1
- O-Ring B Number/Desc: [24610] / Green O-Ring
- O-Ring B Quantity: 1
- Pulley Belt Type: Serpentine
- Pulley Diameter MM: 133.350
- Pulley Groove Quantity: 5
- Pulley Lip Diameter: 4.859375
- Pulley Outside Diameter: 4.859375
- Pulley Ridge Diameter: 4.859375
- Refrigerant Type: R134a
- Suction Port Type: O-Ring
- Terminal Type: Spade
- UPC: 096361674790
- Part Description: 2002 Mazda Protege Remanufactured A C Compressor With Clutch
Vehicle Fitment- 2002 Mazda Protege | All Trims | All Engines
$27.63Product Specifications- Notes: Includes Connector
- Gasket or Seal Included: No
- Mounting Hardware Included: No
- OE Part Number: GE6R61B15B, GE6R61B15A, GE6R61B15
- Package Contents: Blower Motor Resistor and Harness
- Package Quantity: 1
- Packaging Type: Box
- Terminal Type: Blade
- UPC: 019495907947
- Part Description: 2002 Mazda Protege Hvac Blower Motor Resistor Kit
Vehicle Fitment- 2002 Mazda Protege | All Trims | All Engines
$12.71Product Specifications- UPC: 671607210477
- Part Description: 2002 Mazda Protege A/C Accumulator
Vehicle Fitment- 2002 Mazda Protege | All Trims | All Engines
$17.71Product Specifications- Notes: Cut to fit
- Centerline Length (in): 19.7"
- Inside Diameter 1 (in): 0.24"
- Inside Diameter 2 (in): 0.35"
- Number of Branches: 0
- UPC: 072053541298
- Part Description: 2002 Mazda Protege Hvac Heater Molded Hose
Vehicle Fitment- 2002 Mazda Protege | All Trims | 4 Cyl 2.0L
$15.08Product Specifications- Color: Black
- Contains Heat Shield: N
- Contains Protective Sleeve: Y
- End 1 Inside Diameter: 5/8
- End 2 Inside Diameter: 5/8
- Hose Type: Single I.D. Hose
- Material: EPDM
- SAE Specification: SAE J20R3 Class D-1, SAE J1684 Type EC
- Trunk Height: 20
- UPC: 036687412614
- Part Description: 2002 Mazda Protege Small Id Hvac Heater Hose
Vehicle Fitment- 2002 Mazda Protege | All Trims | 4 Cyl 2.0L
$408.17Product Specifications- Notes: w/ H12AOAH4JU Compressor; New w/ Clutch
- Clutch Included: Yes
- Clutch Maximum Diameter: 5.250
- Coil Clock Position: Wire Lead
- Coil Voltage: 12
- Compatible Refrigerant Oil Type: PAG 100
- Compressor Type: H12A0AH4JU
- Discharge Port Type: O-Ring
- Distance From Clutch To Mounting Flange: 1.40625
- Mount Distance MM: 35.560
- Mounting Hardware: Not Included
- Mounting Type: Tangent Mount
- New or Reman: New
- O-Ring A Number/Desc: [24608] / Green O-Ring
- O-Ring A Quantity: 1
- O-Ring B Number/Desc: [24610] / Green O-Ring
- O-Ring B Quantity: 1
- Pulley Belt Type: Serpentine
- Pulley Diameter MM: 133.350
- Pulley Groove Quantity: 5
- Pulley Lip Diameter: 5.250
- Pulley Outside Diameter: 5.250
- Pulley Ridge Diameter: 5.250
- Refrigerant Type: R134a
- Suction Port Type: O-Ring
- Terminal Type: Spade
- UPC: 096361684799
- Part Description: 2002 Mazda Protege A C Compressor With Clutch
Vehicle Fitment- 2002 Mazda Protege | All Trims | All Engines
$26.91Product Specifications- Activation Type: Electrical
- Color: Black
- Connector Gender: Male
- Housing Material: Plastic
- OE Part Number: LB8361200A
- Package Contents: 1 Switch
- Switch Type: Twist
- Terminal Gender: Male
- Terminal Quantity: 5
- Terminal Type: Blade
- UPC: 885484480568
- Wire Gauge Measurement: 0
- Wire Quantity: 0
- Part Description: 2002 Mazda Protege Hvac Blower Fan Switch
Vehicle Fitment- 2002 Mazda Protege | All Trims | All Engines
$13.26Product Specifications- Notes: Cut to fit
- Angle: 90
- Arm Length: 152 mm
- Centerline Length: 254 mm
- End 1 Inside Diameter: 16 mm
- End 2 Inside Diameter: 16 mm
- Material: EPDM
- OE Part Number: 8915
- UPC: 072053062007
- Part Description: 2002 Mazda Protege 90 Degree Hvac Heater Molded Hose
Vehicle Fitment- 2002 Mazda Protege | All Trims | 4 Cyl 2.0L
$101.67Product Specifications- Core Depth Fraction: 2-9/16
- Core Depth MM: 65.088
- Core Height Fraction: 8-5/8
- Core Height MM: 219.075
- Core Width Fraction: 9-1/4
- Core Width MM: 234.950
- Depth: 2.563
- Height: 8.625
- Material: Aluminum
- O-Ring B Number/Desc: [24608] / Green O-Ring
- O-Ring B Quantity: 1
- O-Ring C Number/Desc: [24672] / Green O-Ring
- O-Ring C Quantity: 3
- Outlet Fitting Outside Diameter: No. 10
- UPC: 096361440548
- Width: 9.250
- Part Description: 2002 Mazda Protege A C Evaporator Core
Vehicle Fitment- 2002 Mazda Protege | All Trims | All Engines
$13.13Product Specifications- Color: Black
- Contains Heat Shield: N
- Contains Protective Sleeve: Y
- End 1 Inside Diameter: 5/8
- End 2 Inside Diameter: 5/8
- Hose Type: Single I.D. Hose
- Material: EPDM
- SAE Specification: SAE J20R3 Class D-1, SAE J1684 Type EC
- Trunk Height: 14 3/4
- UPC: 036687416056
- Part Description: 2002 Mazda Protege Small Id Hvac Heater Hose
Vehicle Fitment- 2002 Mazda Protege | All Trims | 4 Cyl 2.0L

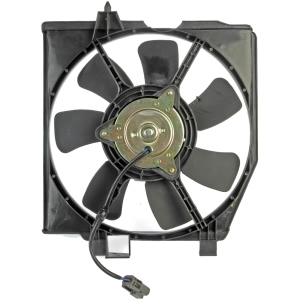

$67.45Product Specifications- Blade Material: Plastic
- Blade Type: Rigid
- Connector Gender: Female
- Connector qty: 1
- Connector Shape: Rectangle
- Connector Type: 2 wire lead w/ Connector
- Electrical or Mechanical: Electrical
- Fan 1 Blade Quantity: 6
- Fan Clutch Mounted: Fan clutch not mounted within the assembly.
- Fan Quantity: 1
- Height IN: 14.000
- Housing Finish: Black
- Hub Bolt Hole Quantity: OE Mount
- Material: Plastic / Metal
- Motor Type A: Radiator Fan Assembly
- Mount Location: Condenser Fan
- Mount Type: OE mount
- Mounting Hardware: Not Included
- O.E. Replacement: Yes
- Package Depth IN: 19.500
- Package Depth MM: 495.300
- Package Height IN: 5.500
- Package Height MM: 139.700
- Package Length IN: 16.500
- Package Length MM: 419.100
- Performance Rated: Yes
- Shroud Included: Included
- Shroud Material: Plastic
- Style: Condenser Fan
- Terminal Gender: Male
- Terminal Quantity: 2
- UPC: 096361755208
- Voltage: 12
- Width IN: 17.500
- Part Description: 2002 Mazda Protege A C Condenser Fan Assembly
Vehicle Fitment- 2002 Mazda Protege | All Trims | 4 Cyl 2.0L
$12.33Product Specifications- Notes: Cut to fit
- Branch Quantity: 0
- Centerline Length (in): 15.6
- Centerline Length (mm): 396
- End 1 Inside Diameter: 0.25 in
- End 2 Inside Diameter: 0.25 in
- Material: EPDM
- Molded: Yes
- Number of Quick Connect Fittings: 0
- OE Part Number: 1786
- UPC: 072053178012
- Part Description: 2002 Mazda Protege Engine Coolant Hose
Vehicle Fitment- 2002 Mazda Protege | All Trims | 4 Cyl 2.0L

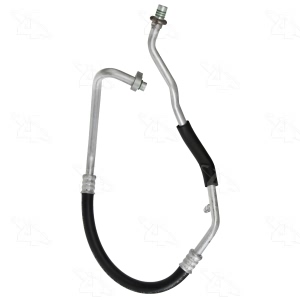

$64.34Product Specifications- Notes: Suction Line
- Bracket: w/o Bracket
- Component Type: Suction Line
- End 1 Type: Springlock
- End 2 Type: P-Nut Fitting
- Fittings Included: Included
- Gasket or Seal Included: Included
- Material: Aluminum / Rubber
- Muffler: w/o Muffler
- O-Ring A Number/Desc: [24672] / Green O-Ring
- O-Ring A Quantity: 3
- O-Ring B Number/Desc: [24610] / Green O-Ring
- O-Ring B Quantity: 1
- O.E. Replacement: Yes
- Refrigerant Type: R134-A
- Service Port: w/ Service Port
- Service Port Qty: 1
- Service Port Size: 13 mm
- Service Port Type: R134-A Quick Disconnect
- Suction End Type: P-Nut Fitting
- Sve Port Low Side: Low Side
- Switch Included: Not Included
- Switch Service Port: w/o Switch Port
- System Pressure: Low Pressure
- UPC: 096361566378
- Part Description: 2002 Mazda Protege A C Suction Line Hose Assembly
Vehicle Fitment- 2002 Mazda Protege | All Trims | 4 Cyl 2.0L
$47.20Product Specifications- Notes: w/ Wheel
- Cage Wheel Included: w/ Wheel
- Connector Gender: Female
- Connector qty: 1
- Flanged End: Yes
- Material: Metal
- Motor Dia. MM: 82.550
- Motor Diameter: 3.250
- Motor Length: 3.625
- Motor Length MM: 92.075
- Mount Type: OE Mount
- New or Reman: New
- Number of Terminals: 2
- O.E. Replacement: Yes
- Rotation: CCW
- Shaft Diameter: 0.3125
- Shaft Length: 2.000
- Shaft Length MM: 50.800
- Style: Flanged
- Terminal Type: 2 Lead Wires w/ Connector
- UPC: 096361769564
- Vented: Vented
- Voltage: 12
- Wheel Dia. IN: 5.875
- Wheel Height IN: 2.750
- Part Description: 2002 Mazda Protege Hvac Blower Motor With Wheel
Vehicle Fitment- 2002 Mazda Protege | All Trims | All Engines

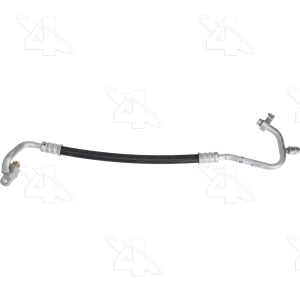

$38.52Product Specifications- Notes: Discharge Line
- Bracket: w/o Bracket
- Component Type: Discharge Line
- Fittings Included: Included
- Gasket or Seal Included: Included
- Muffler: w/o Muffler
- O-Ring A Number/Desc: [24661] / Green O-Ring
- O-Ring A Quantity: 2
- O.E. Replacement: Yes
- Refrigerant Type: R134a
- Service Port: w/ Service Port
- Service Port Qty: 1
- Service Port Type: R134-A Quick Disconnect
- Suction End Type: P-Nut Fitting
- Svc Port High Side: High Side
- Switch Included: Not Included
- Switch Service Port: w/o Switch Port
- UPC: 096361566361
- Part Description: 2002 Mazda Protege A C Discharge Line Hose Assembly
Vehicle Fitment- 2002 Mazda Protege | All Trims | 4 Cyl 2.0L
$20.09Product Specifications- Color: Brass
- Refrigerant Type: R134A
- Super Heat: 5.0
- UPC: 096361390553
- Part Description: 2002 Mazda Protege A C Expansion Valve
Vehicle Fitment- 2002 Mazda Protege | All Trims | All Engines

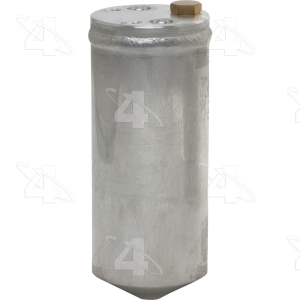

$16.91Product Specifications- Body Diameter: 2.375
- Body Length: 5.625
- Connector B Type: Pad Mount
- Connector Type: Pad Mount
- Desiccant: Yes
- Desiccant Replaceable: Not Replaceable
- Dia. MM: 60.325
- Gasket / Seals: Included
- In Line Filter Material: Desiccant
- In Line Filter Outlet Fitting Type: Pad Mount
- Inlet Filter Fitting Type: Pad Mount
- Inlet Fitting Diameter: 0.482
- Inlet Fitting Type: Pad Mount
- Inlet Fraction: 1/2
- Length MM: 142.875
- Material: Aluminum
- Meets / Exceeds OEM: Yes
- Mounting Bracket Included: Hardware not included
- O-Ring A Number/Desc: [24646] / Green Round O/Ring
- O-Ring A Quantity: 2
- O-Ring B Number/Desc: [24650] / Green O-Ring
- O-Ring B Quantity: 1
- Outlet Fitting Type: Pad Mount
- Outlet Fraction: 1/2
- Outlet IN: .482
- Overall Depth IN: 5.625
- Overall Depth MM: 142.875
- Pad Mount: w/ Pad Mount
- Service Port: w/o Service Port
- Sight Glass: No
- Style: Aluminum Filter Drier w/ Pad Mount
- Switch Port: w/ Switch Port
- UPC: 096361830394
- Part Description: 2002 Mazda Protege A C Receiver Drier
Vehicle Fitment- 2002 Mazda Protege | All Trims | 4 Cyl 2.0L
$14.75Product Specifications- Notes: O-Ring and Gasket Seal Kit
- Material: Green Rubber O-Rings
- Style: O-Ring & Gasket Kit
- UPC: 096361267541
- Part Description: 2002 Mazda Protege A C System O Ring And Gasket Kit
Vehicle Fitment- 2002 Mazda Protege | All Trims | All Engines
$17.62Product Specifications- Centerline Length (in): 19.4"
- Inside Diameter 1 (in): 0.63"
- Number of Branches: 0
- UPC: 072053559422
- Part Description: 2002 Mazda Protege Hvac Heater Molded Hose
Vehicle Fitment- 2002 Mazda Protege | All Trims | 4 Cyl 2.0L
$26.68Product Specifications- Connector Gender: Female
- Connector Shape: Rectangle
- Meets / Exceeds OEM: Yes
- Number of Terminals: 4
- Speed: Fixed # 3
- Terminal Type: Spade
- UPC: 096361202474
- Part Description: 2002 Mazda Protege Hvac Blower Motor Resistor
Vehicle Fitment- 2002 Mazda Protege | All Trims | All Engines
$48.40Product Specifications- Notes: w/o Wheel
- Cage Wheel Included: w/o Wheel
- Connector Gender: None
- Connector qty: None
- Flanged End: Yes
- Material: Metal
- Motor Diameter: 3.250
- Motor Length: 3.875
- Mount Type: OE Mount
- New or Reman: New
- Number of Terminals: 2
- O.E. Replacement: Yes
- Rotation: CCW
- Shaft Diameter: 0.3125
- Shaft Length: 1.625
- Shaft Shape: D-Shaped
- Shaft Type: D-Shaped
- Style: Flanged
- Terminal Type: 2 Lead Wires w/ Connector
- UPC: 096361351035
- Vented: Vented
- Voltage: 12
- Wheel Dia. IN: Yes
- Part Description: 2002 Mazda Protege Hvac Blower Motor Without Wheel
Vehicle Fitment- 2002 Mazda Protege | All Trims | All Engines
TYC® A/C Condenser for 2002 Mazda Protege
PartNumber: 3077Product Specifications- Notes: Dealer Installed AC; Configuration: Parallel Flow Condenser (PFC)
- Configuration: Parallel Flow Condenser (PFC)
- Core Height: 25.38
- Core Length: 13.13
- Core Size: 25 3/8" x 13 1/8" x 5/8"
- Core Thickness: 0.63
- Inlet Size: Block Fitting
- Outlet Size: Block Fitting
- UPC: 762405211916
- Part Description: 2002 Mazda Protege A/C Condenser
Vehicle Fitment- 2002 Mazda Protege | All Trims | All Engines
Product Specifications- Notes: OE recommended replacement part.
- Body Diameter: 60.325
- Body Length: 142.875
- Inlet Fitting Type: FEMALE
- Material: Aluminum
- New or Remanufactured: NEW
- Outlet Fitting Type: FEMALE
- UPC: 042511222038
- Part Description: 2002 Mazda Protege A/C Receiver Drier
Vehicle Fitment- 2002 Mazda Protege | All Trims | 4 Cyl 2.0L
Product Specifications- Notes: New-w/Clutch; Replacement Of Stretch Fit Belt Is Recommended
- UPC: 671607337525
- Part Description: 2002 Mazda Protege A/C Compressor
Vehicle Fitment- 2002 Mazda Protege | All Trims | 4 Cyl 2.0L
Product Specifications- Notes: (Condenser Only; Drier Not Incld); w/Straight Outlet Pipe
- Color / Finish: Silver or Black
- Fitting 1 Gender: Female
- Fitting 2 Gender: Female
- Height: 11.875
- Installation Instructions Included: No
- Internet Product Code (IPC): DF64F52BFED
- Item Grade: OEM Standard
- Item has MSDS (SDS): N
- Material: Aluminum
- MFG Brand Name: Spectra Premium
- MFG Model # (Series): 7-3077
- MFG Name: Spectra Premium Industries
- Package Contents: 1 x Condenser
- Product Condition: New
- Refrigerant Compatibility: All
- Supplier Company Name: Spectra Premium Industries
- UPC: 671607195491
- Part Description: 2002 Mazda Protege A/C Condenser
Vehicle Fitment- 2002 Mazda Protege | All Trims | All Engines
Product Specifications- Notes: (Condenser Only; Drier Not Incld); w/Bent Outlet Pipe
- Color / Finish: Silver or Black
- Fitting 1 Gender: Female
- Fitting 2 Gender: Female
- Height: 11.875
- Installation Instructions Included: No
- Internet Product Code (IPC): B9885BBBE5D
- Item Grade: OEM Standard
- Item has MSDS (SDS): N
- Material: Aluminum
- MFG Brand Name: Spectra Premium
- MFG Model # (Series): 7-3078
- MFG Name: Spectra Premium Industries
- Package Contents: 1 x Condenser
- Product Condition: New
- Refrigerant Compatibility: All
- Supplier Company Name: Spectra Premium Industries
- UPC: 671607195507
- Part Description: 2002 Mazda Protege A/C Condenser
Vehicle Fitment- 2002 Mazda Protege | All Trims | All Engines
