2004 Suzuki Grand Vitara A/C & Heating
My Vehicle Change Vehicle
2004 Suzuki Grand Vitara
Product Specifications- Connector Quantity: 1
- Connector Type: Male
- Fan Blade Material: Plastic
- Mount Type: Brushed
- OE Part Number: 95560-65000
- Package Contents: Condenser Fan Assembly
- Package Quantity: 1
- Packaging Type: Box
- Shroud Included: Yes
- Shroud Material: Stamped Steel
- Terminal Quantity: 2
- UPC: 019495038504
- Part Description: 2004 Suzuki Grand Vitara A C Condenser Fan Assembly
Vehicle Fitment- 2004 Suzuki Grand Vitara | All Trims | 6 Cyl 2.5L
Product Specifications- Clutch Maximum Diameter: 110.0 mm
- Compressor Mount Hole Quantity: 4
- Mounting Type: Bolt Tangent
- OE Part Number: 9520065DF1, 9520065DC1
- Pulley Belt Type: Serpentine
- Refrigerant Type: R134A
- UPC: 042511166820
- Part Description: 2004 Suzuki Grand Vitara A/C Compressor with Clutch
Vehicle Fitment- 2004 Suzuki Grand Vitara | All Trims | 6 Cyl 2.5L
Product Specifications- Notes: Cut to Length, 12";Cut to Length, 14";Cut to Length, 10";Cut to Length, 9";Cut to Length, 22"
- Centerline Length (in): 600"
- Inside Diameter 1 (in): 0.3125"
- OE Part Number: 49692
- UPC: 072053133226
- Weight Per Length: 7.25 lbs./Carton
- Working Pressure (psi): 60
- Part Description: 2004 Suzuki Grand Vitara Safety Stripe Hvac Heater Hose
Vehicle Fitment- 2004 Suzuki Grand Vitara | All Trims | 6 Cyl 2.5L
Four Seasons® Remanufactured A C Compressor With Clutch for 2004 Suzuki Grand Vitara
PartNumber: 97339$233.35Product Specifications- Notes: w/ 10S13C Compressor; Reman w/ Clutch; w/o Rear AC
- Clutch Included: Yes
- Clutch Maximum Diameter: 4.500
- Coil Clock Position: Wire Lead
- Coil Voltage: 12
- Compatible Refrigerant Oil Type: PAG 46
- Compressor Type: 10S13C
- Discharge Port Type: O-Ring
- Distance From Clutch To Mounting Flange: 0.4375
- Mount Distance MM: 11.176
- Mounting Hardware: Not Included
- Mounting Type: Tangent Mount
- New or Reman: Remanufactured
- O-Ring A Number/Desc: [24681] / Green O-Ring
- O-Ring A Quantity: 1
- O-Ring B Number/Desc: [24661] / Green O-Ring
- O-Ring B Quantity: 1
- Printed Foot Note: May Require use of OE Manifold
- Pulley Belt Type: Serpentine
- Pulley Diameter MM: 114.300
- Pulley Groove Quantity: 4
- Pulley Lip Diameter: 4.500
- Pulley Outside Diameter: 4.500
- Pulley Ridge Diameter: 4.500
- Refrigerant Type: R134a
- Suction Port Type: O-Ring
- Terminal Type: Pin
- UPC: 096361973398
- Part Description: 2004 Suzuki Grand Vitara Remanufactured A C Compressor With Clutch
Vehicle Fitment- 2004 Suzuki Grand Vitara | All Trims | All Engines
Gates® 90 Degree Engine Heater Molded Bypass Hose for 2004 Suzuki Grand Vitara
PartNumber: 28461$12.72Product Specifications- Notes: Cut to fit
- Angle: 90
- Arm Length 1 (in): 4"
- Arm Length 2 (in): 12"
- Centerline Length (in): 16"
- Inside Diameter 1 (in): 0.5"
- OE Part Number: 9002
- UPC: 072053061956
- Part Description: 2004 Suzuki Grand Vitara 90 Degree Engine Heater Molded Bypass Hose
Vehicle Fitment- 2004 Suzuki Grand Vitara | All Trims | 6 Cyl 2.5L
Product Specifications- Notes: w/ 10S13C Compressor; New w/ Clutch; w/o Rear AC
- Clutch Included: Yes
- Clutch Maximum Diameter: 4.500
- Coil Clock Position: Wire Lead
- Coil Voltage: 12
- Compatible Refrigerant Oil Type: PAG 46
- Compressor Type: 10S13C
- Discharge Port Type: O-Ring
- Distance From Clutch To Mounting Flange: 0.4375
- Mount Distance MM: 11.176
- Mounting Hardware: Not Included
- Mounting Type: Tangent Mount
- New or Reman: New
- O-Ring A Number/Desc: [24681] / Green O-Ring
- O-Ring A Quantity: 1
- O-Ring B Number/Desc: [24661] / Green O-Ring
- O-Ring B Quantity: 1
- Printed Foot Note: May Require use of OE Manifold
- Pulley Belt Type: Serpentine
- Pulley Diameter MM: 114.300
- Pulley Groove Quantity: 4
- Pulley Lip Diameter: 4.500
- Pulley Outside Diameter: 4.500
- Pulley Ridge Diameter: 4.500
- Refrigerant Type: R134a
- Suction Port Type: O-Ring
- Terminal Type: Pin
- UPC: 096361983397
- Part Description: 2004 Suzuki Grand Vitara A C Compressor With Clutch
Vehicle Fitment- 2004 Suzuki Grand Vitara | All Trims | All Engines
Product Specifications- Core Depth Fraction: 2-3/8; 2-5/16
- Core Depth MM: 60.000
- Core Height Fraction: 10-1/2
- Core Height MM: 267.000
- Core Width Fraction: 9-1/4
- Core Width MM: 235.000
- Depth: 2.360; 2.375
- Height: 10.510
- Material: Aluminum
- O-Ring A Number/Desc: [24610] / Green O-Ring
- O-Ring A Quantity: 2
- UPC: 096361440173
- Width: 9.250
- Part Description: 2004 Suzuki Grand Vitara A C Evaporator Core
Vehicle Fitment- 2004 Suzuki Grand Vitara | All Trims | All Engines
Product Specifications- Notes: Cut to fit
- Centerline Length (in): 10.5"
- Inside Diameter 1 (in): 0.5"
- Number of Branches: 0
- UPC: 072053191226
- Part Description: 2004 Suzuki Grand Vitara Hvac Heater Molded Hose
Vehicle Fitment- 2004 Suzuki Grand Vitara | All Trims | 6 Cyl 2.5L
Product Specifications- Notes: w/ Wheel; w/ AC
- Cage Wheel Included: w/ Wheel
- Connector Gender: Female
- Connector qty: 1
- Flanged End: Yes
- Material: Metal
- Motor Diameter: 3.250
- Motor Length: 3.875
- Mount Type: OE Mount
- New or Reman: New
- Number of Terminals: 2
- O.E. Replacement: Yes
- Rotation: CCW
- Shaft Diameter: 0.3125
- Shaft Length: 1.8125
- Style: Flanged
- Terminal Type: 2 Lead Wires w/ Connector
- UPC: 096361769137
- Vented: Vented
- Voltage: 12
- Wheel Dia. IN: 6.250
- Wheel Height IN: 2.750
- Part Description: 2004 Suzuki Grand Vitara Hvac Blower Motor With Wheel
Vehicle Fitment- 2004 Suzuki Grand Vitara | All Trims | All Engines
Product Specifications- Notes: Cut to fit
- Branch Quantity: 0
- Centerline Length (in): 15.6
- Centerline Length (mm): 396
- End 1 Inside Diameter: 0.25 in
- End 2 Inside Diameter: 0.25 in
- Material: EPDM
- Molded: Yes
- Number of Quick Connect Fittings: 0
- OE Part Number: 1786
- UPC: 072053178012
- Part Description: 2004 Suzuki Grand Vitara Engine Coolant Hose
Vehicle Fitment- 2004 Suzuki Grand Vitara | All Trims | 6 Cyl 2.5L
Product Specifications- Color: Aluminum
- Liquid Inlet Fitting Gender: Female
- Liquid Inlet Fitting Thread Diameter: No. 6
- Liquid Inlet Size IN: 0.390
- Liquid Inlet Size MM: 10.100
- Liquid Inlet Style: Captured O-Ring
- Liquid Inlet Type: O-Ring
- Liquid Outlet Fitting Gender: Female
- Liquid Outlet Fitting Thread Diameter: No. 10
- Liquid Outlet Style: Female Insert O-Ring
- Liquid Outlet Type: Insert O-Ring
- Lqd Out Size IN: 0.650
- Lqd Out Size MM: 16.600
- Material: Aluminum
- Meets / Exceeds OEM: Yes
- Mounting Hole Quantity: 2
- O-Ring A Number/Desc: [24610] / Green O-Ring
- O-Ring A Quantity: 2
- O-Ring B Number/Desc: [24611] / Green O-Ring
- O-Ring B Quantity: 1
- O-Ring C Number/Desc: [24681] / Green O-Ring
- O-Ring C Quantity: 1
- Refrigerant Type: R134A
- Style: w/o Solenoid
- Suc In Size IN: 0.650
- Suc In Size MM: 16.600
- Suc Out Size IN: 0.710
- Suc Out Size MM: 18.200
- Suction Inlet Fitting Gender: Female
- Suction Inlet Fitting Thread Diameter: No. 10
- Suction Inlet Style: Female Insert O-Ring
- Suction Inlet Type: Insert O-Ring
- Suction Outlet Fitting Gender: Female
- Suction Outlet Fitting Thread Diameter: No. 10; No. 12
- Suction Outlet Type: O-Ring
- Super Heat: 7.500
- Switch Included: Not Included
- Tonnage: 1.500
- UPC: 096361391406
- Part Description: 2004 Suzuki Grand Vitara A C Expansion Valve
Vehicle Fitment- 2004 Suzuki Grand Vitara | All Trims | All Engines
Four Seasons® A C Clutch Control Relay Harness Connector for 2004 Suzuki Grand Vitara
PartNumber: 37257$16.30Product Specifications- Connector Shape: Rectangle
- Gender: Male
- Style: Harness Connector
- Terminal Gender: Female
- Terminal Quantity: 4
- UPC: 096361372573
- Part Description: 2004 Suzuki Grand Vitara A C Clutch Control Relay Harness Connector
Vehicle Fitment- 2004 Suzuki Grand Vitara | All Trims | All Engines
Product Specifications- Notes: Caps and Valve Core Seal Kit; w/ JRA Valves
- Cap Color: Red, Blue
- Cap Inside Diameter: Specific
- Cap Material: Plastic
- Material: Aluminum
- Refrigerant Type: R12, R134a
- Style: Cap & Valve Kit
- UPC: 096361267831
- Valve Core Material: Specific
- Part Description: 2004 Suzuki Grand Vitara A C System Valve Core And Cap Kit
Vehicle Fitment- 2004 Suzuki Grand Vitara | All Trims | All Engines
Product Specifications- Notes: O-Ring & Gasket Seal Kit; Factory Air
- Material: Green Rubber O-Rings
- Style: O-Ring & Gasket Kit
- UPC: 096361070738
- Part Description: 2004 Suzuki Grand Vitara A C System O Ring And Gasket Kit
Vehicle Fitment- 2004 Suzuki Grand Vitara | All Trims | All Engines
Product Specifications- Color: Black
- Contains Heat Shield: N
- Contains Protective Sleeve: N
- End 1 Inside Diameter: 1/2
- End 2 Inside Diameter: 1/2
- Hose Type: Single I.D. Hose
- Material: EPDM
- SAE Specification: SAE J20R3 Class D-1, SAE J1684 Type EC
- Trunk Height: 7 1/2
- UPC: 038244597796
- Part Description: 2004 Suzuki Grand Vitara Outlet Rear Small Id Hvac Heater Hose
Vehicle Fitment- 2004 Suzuki Grand Vitara | All Trims | All Engines
Product Specifications- Connector Gender: Female
- Connector Shape: Rectangle
- Number of Terminals: 4
- Speed: Variable
- UPC: 096361029842
- Part Description: 2004 Suzuki Grand Vitara Hvac Blower Motor Resistor Block
Vehicle Fitment- 2004 Suzuki Grand Vitara | All Trims | All Engines
Four Seasons® Filter Drier Desiccant Bag Kit w/ Plug for 2004 Suzuki Grand Vitara
PartNumber: 83151$10.64Product Specifications- Color: White
- Desiccant Length IN: 9.625
- Desiccant Wt Grams: 35
- Gasket or Seal Included: Sealing Washer and or O-Rings Included
- Length: 9.625
- Length MM: 244.475
- Material: Cloth
- Outside Diameter: 1.000
- Style: Desiccant
- Universal Or Specific Fit: Direct
- UPC: 096361831513
- Part Description: 2004 Suzuki Grand Vitara Filter Drier Desiccant Bag Kit w/ Plug
Vehicle Fitment- 2004 Suzuki Grand Vitara | All Trims | All Engines
Product Specifications- Notes: OE Recommended Replacement filter; Premium electrostatically charged media; Captures ultra-fine particulates such as diesel carbon & smoke
- Filter Type: Electrostatic
- Length: 10.3"
- OE Part Number: 9586154J00
- UPC: 042511217928
- Width: 7.88"
- Part Description: 2004 Suzuki Grand Vitara Cabin Air Filter
Vehicle Fitment- 2004 Suzuki Grand Vitara | All Trims | 6 Cyl 2.5L
Product Specifications- Filter Type: Particulate
- Height: 1.165" (30mm)
- Length: 10.125" (257mm)
- OE Part Number: 9586154J00
- UPC: 765809244757
- Width: 7.88" (200mm)
- Part Description: 2004 Suzuki Grand Vitara Cabin Air Filter
Vehicle Fitment- 2004 Suzuki Grand Vitara | All Trims | 6 Cyl 2.5L
Product Specifications- Pallet Layer Quantity: 108
- Part Description: 2004 Suzuki Grand Vitara Cabin Air Filter
Vehicle Fitment- 2004 Suzuki Grand Vitara | All Trims | 6 Cyl 2.5L
Product Specifications- Notes: New-w/Clutch; Replacement Of Stretch Fit Belt Is Recommended
- UPC: 671607339338
- Part Description: 2004 Suzuki Grand Vitara A/C Compressor
Vehicle Fitment- 2004 Suzuki Grand Vitara | All Trims | All Engines

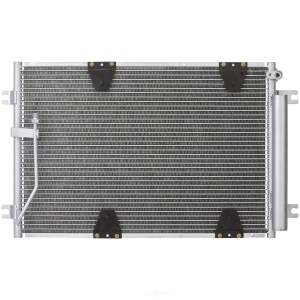

Product Specifications- Notes: (Condenser & Drier Assy)
- Color / Finish: Silver or Black
- Fitting 1 Gender: Female
- Fitting 2 Gender: Female
- Height: 14.875
- Installation Instructions Included: No
- Internet Product Code (IPC): C7495BD5455
- Item Grade: OEM Standard
- Item has MSDS (SDS): N
- Material: Aluminum
- MFG Brand Name: Spectra Premium
- MFG Model # (Series): 7-3423
- MFG Name: Spectra Premium Industries
- Package Contents: 1 x Condenser
- Product Condition: New
- Refrigerant Compatibility: All
- Supplier Company Name: Spectra Premium Industries
- UPC: 671607211177
- Part Description: 2004 Suzuki Grand Vitara A/C Condenser
Vehicle Fitment- 2004 Suzuki Grand Vitara | All Trims | All Engines
Product Specifications- Fan Blade Material: Plastic
- Fan Quantity: 1.0
- Internet Product Code (IPC): FFBD3BE5315
- Item Grade: OEM Standard
- Item has MSDS (SDS): N
- MFG Brand Name: Spectra Premium
- MFG Model # (Series): 671607784992
- MFG Name: Spectra Premium Industries
- Mounting Bracket Included: No
- Package Contents: Radiator Fan Assembly
- Shroud Color / Finish: Black
- Shroud Material: Plastic
- Supplier Company Name: Spectra Premium Industries
- UPC: 671607784992
- Part Description: 2004 Suzuki Grand Vitara A/C Condenser Fan Assembly
Vehicle Fitment- 2004 Suzuki Grand Vitara | All Trims | All Engines
