2004 Volvo V40 Fuel Systems & Components
My Vehicle Change Vehicle
2004 Volvo V40
< Back to View All
Engine & Drivetrain
- Department
- Part Type
- Brands
- Prices
Product Specifications- Notes: Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
- Current Draw: 7
- Flow Rating: 37 gph
- Fuel Level Sender Assembly Included: Yes
- Fuel Type: Gas
- Gasket or Seal Included: Yes
- In Tank or External: In Tank
- Inlet Type: Strainer
- Internal or External Strainer: Internal
- Item Grade: Standard Replacement
- Maximum Pressure: 94.0 PSI
- Outlet Outside Diameter: 0.313''
- Outlet Quantity: 2
- Outlet Type: Quick Connect
- Pump Type: Electric
- Regulator Included: Yes
- Resistance Ohms Empty: 120.0
- Resistance Ohms Full: 8.0
- Strainer Included: Yes
- System Pressure: 45 psi
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: Blade
- UPC: 886931170322
- Vapor Pressure Sensor: No
- Voltage: 12.0 VDC

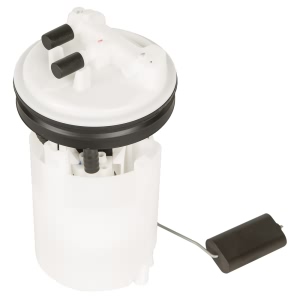

- Part Description: 2004 Volvo V40 Fuel Pump Module Assembly
Vehicle Fitment- 2004 Volvo V40 | All Trims | 4 Cyl 1.9L
Product Specifications- Cam Type: Threaded
- Cap Depth: 2.48"
- Locking: Yes
- Neck Diameter: 1.77"
- Shell Diameter: 2.91"
- Type: Regular Fuel Cap
- UPC: 072053446722
- Venting: Emission Control
- Part Description: 2004 Volvo V40 Locking Fuel Tank Cap
Vehicle Fitment- 2004 Volvo V40 | All Trims | 4 Cyl 1.9L
Product Specifications- Part Description: 2004 Volvo V40 Barometric Pressure Sensor
Vehicle Fitment- 2004 Volvo V40 | Base | All Engines
- 2004 Volvo V40 | LSE | All Engines
Product Specifications- Remanufactured: N
- Part Description: 2004 Volvo V40 Fuel Filter
Vehicle Fitment- 2004 Volvo V40 | All Trims | 4 Cyl 1.9L
Product Specifications- Cam Type: Threaded
- Cap Depth: 1.78"
- Locking: No
- Neck Diameter: 1.77"
- Shell Diameter: 2.61"
- Type: OE Equivalent Fuel Cap
- UPC: 072053408027
- Venting: Emission Control
- Part Description: 2004 Volvo V40 Replacement Non Locking Fuel Tank Cap
Vehicle Fitment- 2004 Volvo V40 | All Trims | 4 Cyl 1.9L
Product Specifications- Class: C
- Duty Type: LD
- Height: 6.500''
- Inlet: 5/16''
- Inner Diameter Top: Closed
- MediaType: Cellulose
- Micron: 0.00 Micron
- Outer Diameter Bottom: 3.170''
- Outer Diameter Top: 3.360''
- Outlet: 5/16''
- Style: Fuel (Complete In-Line) Filter
- UPC: 765809336056
- Part Description: 2004 Volvo V40 Complete In Line Fuel Filter
Vehicle Fitment- 2004 Volvo V40 | All Trims | 4 Cyl 1.9L
Product Specifications- Cup Type: Threaded
- Diameter: 1-1/2
- Fuel Type: Gas
- Length: 34-1/2
- UPC: 671607119671
- Vent 1: 3/8Vent Quantity

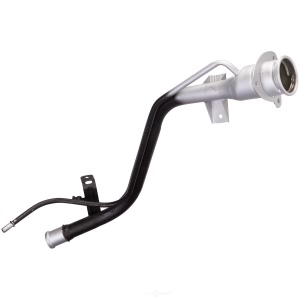

- Part Description: 2004 Volvo V40 Fuel Filler Neck
Vehicle Fitment- 2004 Volvo V40 | All Trims | All Engines
Product Specifications- Gasket or Seal Included: Yes
- Inlet Attachment: Inlet-Strainer
- Inlet Type: STRAINER
- Internal or External: Internal
- Internet Product Code (IPC): 25611C78C3E
- Item Grade: OEM Standard Part
- Item has MSDS (SDS): No
- Maximum Pressure (psi): 110
- MFG Brand Name: Airtex Products
- MFG Model # (Series): E8607M
- Minimum Pressure (psi): 90
- Outlet Attachment: Outlet-QuickConnect
- Outlet Size: 5/16
- Outlet Type: QUICK CONNECT
- Package Contents: Fuel Pump Module Assembly
- Package Quantity: 1
- Pump Type: Electrical
- Supplier Company Name: Airtex Products
- UPC: 080044015581
- Voltage [V]: 12V
- Wiring Harness Included: No

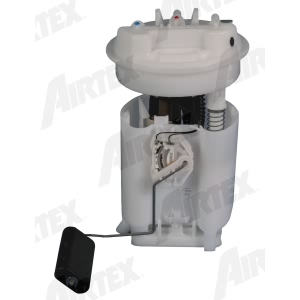

- Part Description: 2004 Volvo V40 Electric Fuel Pump
Vehicle Fitment- 2004 Volvo V40 | All Trims | 4 Cyl 1.9L
Product Specifications- Pallet Layer Quantity: 120
- Part Description: 2004 Volvo V40 In-Line Fuel Filter
Vehicle Fitment- 2004 Volvo V40 | All Trims | 4 Cyl 1.9L
Product Specifications- Notes: Color Black; Part Attributes W/ Threaded Filler Neck; Part Replacement Replaces 48349
- Cam Type: Threaded
- Cap Depth: 2.48"
- Neck Diameter: 1.77"
- Shell Diameter: 2.91"
- UPC: 033342062283
- Venting: Emission Control
- Part Description: 2004 Volvo V40 Fuel Tank Cap
Vehicle Fitment- 2004 Volvo V40 | All Trims | 4 Cyl 1.9L
Product Specifications- Notes: Color Black; Part Attributes W/ Threaded Filler Neck; Part Replacement Replaces 48349
- Cam Type: Threaded
- Cap Depth: 1.78"
- Neck Diameter: 1.77"
- Shell Diameter: 2.61"
- UPC: 033342062191
- Venting: Emission Control
- Part Description: 2004 Volvo V40 Fuel Tank Cap
Vehicle Fitment- 2004 Volvo V40 | All Trims | 4 Cyl 1.9L
Product Specifications- Notes: Threaded; Threaded Adapter Connected to Tester
- Cam Type: Threaded
- Color: Black
- UPC: 033342062443
- Part Description: 2004 Volvo V40 Black Fuel Cap Tester Adapter
Vehicle Fitment- 2004 Volvo V40 | All Trims | 4 Cyl 1.9L
Product Specifications- Notes: Color Black; Part Attributes W/ Threaded Filler Neck
- Cap Depth: 2.500
- Color: Black
- Fuel Cap Venting: Emission Control
- Locking: Yes
- Material: Plastic
- Neck Diameter: 1.750
- Shell Diameter: 2.938
- Tether Included: No
- UPC: 333420090048
- Part Description: 2004 Volvo V40 Regular Keyed Alike Fuel Cap
Vehicle Fitment- 2004 Volvo V40 | All Trims | 4 Cyl 1.9L
