Product Specifications- Notes: From Chassis # 8E-6-265-831;Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
- Current Draw: 10
- Flow Rating: 24 gph
- Fuel Level Sender Assembly Included: Yes
- Fuel Type: Gas
- Gasket or Seal Included: No
- Inlet Type: Strainer
- Internal or External Strainer: Internal
- Item Grade: Standard Replacement
- Outlet Outside Diameter: 0.375''
- Outlet Quantity: 2
- Outlet Type: Quick Connect
- Pump Type: Electric
- Regulator Included: No
- Resistance Ohms Empty: 300.0
- Resistance Ohms Full: 46.0
- Strainer Included: Yes
- System Pressure: 51 psi
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: Blade
- UPC: 689604285343
- Vapor Pressure Sensor: No
- Voltage: 12.0 VDC

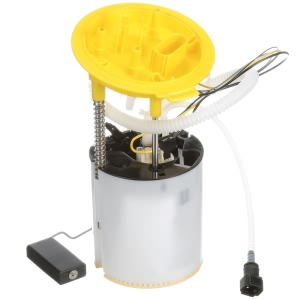

- Part Description: 2007 Audi S4 Fuel Pump Module Assembly
Vehicle Fitment- 2007 Audi S4 | Avant | 8 Cyl 4.2L
- 2007 Audi S4 | Base | 8 Cyl 4.2L
Product Specifications- Class: D
- Duty Type: LD
- Height: 6.936''
- Inlet: 5/16''
- Inner Diameter Top: Closed
- MediaType: Cellulose
- Micron: 0.00 Micron
- Outer Diameter Top: 2.929''
- Outlet: 5/16''
- Style: Fuel (Complete In-Line) Filter
- UPC: 765809338319
- Vapor: 3/8
- Part Description: 2007 Audi S4 Complete In Line Fuel Filter
Vehicle Fitment- 2007 Audi S4 | All Trims | 8 Cyl 4.2L
Product Specifications- Notes: Feul Pump Seal
- Inside Diameter: 4-1/2
- Material: Polymer
- Outside Diameter: 5-3/8
- UPC: 671607120745
- Part Description: 2007 Audi S4 Fuel Pump Tank Seal
Vehicle Fitment- 2007 Audi S4 | All Trims | All Engines
Product Specifications- Notes: Electrical Connector: 4-point
- Electrical Connector: 4-Point
- UPC: 009254076045
- Part Description: 2007 Audi S4 In-Line Fuel Filter
Vehicle Fitment- 2007 Audi S4 | Avant | 8 Cyl 4.2L
- 2007 Audi S4 | Base | 8 Cyl 4.2L
Product Specifications- Notes: Location - Fuel Rail
- Adjustable: No
- Inlet Port Diameter: 0.94''
- Inlet Quantity: 1
- Inlet Type: Push In
- Material: Metal
- Mounting Type: Clamp
- Outlet Quantity: 1
- Outlet Type: Returnless
- UPC: 689604291337
- Part Description: 2007 Audi S4 Fuel Injection Pressure Regulator
Vehicle Fitment- 2007 Audi S4 | All Trims | 8 Cyl 4.2L
Product Specifications- Cam Type: Threaded
- Cap Depth: 2.05"
- Locking: No
- Neck Diameter: 1.77"
- Shell Diameter: 2.78"
- Type: OE Equivalent Fuel Cap
- UPC: 072053020601
- Venting: Pressure Relief
- Part Description: 2007 Audi S4 Replacement Non Locking Fuel Tank Cap
Vehicle Fitment- 2007 Audi S4 | All Trims | 8 Cyl 4.2L
Product Specifications- Notes: Electrical Connector: 3-point
- Remanufactured: N
- UPC: 884109502296
- Part Description: 2007 Audi S4 In-Line Fuel Filter
Vehicle Fitment- 2007 Audi S4 | Cabriolet | 8 Cyl 4.2L
- 2007 Audi S4 | Avant | 8 Cyl 4.2L
- 2007 Audi S4 | Base | 8 Cyl 4.2L
Product Specifications- Cam Type: Threaded
- Cap Depth: 2.61"
- Locking: Yes
- Neck Diameter: 1.77"
- Shell Diameter: 2.91"
- Type: Regular Fuel Cap
- UPC: 072053021066
- Venting: Pressure Relief
- Part Description: 2007 Audi S4 Locking Fuel Tank Cap
Vehicle Fitment- 2007 Audi S4 | All Trims | 8 Cyl 4.2L
Product Specifications- Notes: Grade: Aftermarket
- Diameter [mm]: 135
- Height [mm]: 15
- Packaging height [cm]: 1,5
- Packaging width [cm]: 13,5
- Seal Material: FPM (fluoride rubber)
- Weight [kg]: 0,0275
- Width [mm]: 135
- Part Description: 2007 Audi S4 Fuel Filter Seal
Vehicle Fitment- 2007 Audi S4 | Base | 8 Cyl 4.2L
- 2007 Audi S4 | Avant | All Engines
- 2007 Audi S4 | Cabriolet | 8 Cyl 4.2L
Product Specifications- Notes: Color Black
- Cam Type: Threaded
- Cap Depth: 2.61"
- Neck Diameter: 1.77"
- Shell Diameter: 2.91"
- UPC: 033342007970
- Venting: Pressure Relief
- Part Description: 2007 Audi S4 Regular Locking Fuel Cap
Vehicle Fitment- 2007 Audi S4 | All Trims | 8 Cyl 4.2L
Product Specifications- Notes: Color Black
- Cam Type: Threaded
- Cap Depth: 2.05"
- Neck Diameter: 1.77"
- Shell Diameter: 2.78"
- UPC: 033342008274
- Venting: Pressure Relief
- Part Description: 2007 Audi S4 Fuel Tank Cap
Vehicle Fitment- 2007 Audi S4 | All Trims | 8 Cyl 4.2L
Product Specifications- Notes: Threaded; Threaded Adapter Connected to Tester
- Cam Type: Threaded
- Color: Black
- UPC: 033342062443
- Part Description: 2007 Audi S4 Black Fuel Cap Tester Adapter
Vehicle Fitment- 2007 Audi S4 | All Trims | 8 Cyl 4.2L
Product Specifications- Notes: Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
- Average Current Draw: 10
- Fuel Level Sender Assembly Included: Yes
- Fuel Type: Gas
- Gasket or Seal Included: No
- In Tank or External: In Tank
- Inlet Type: Strainer
- Internal or External Strainer: Internal
- Item Grade: Standard Replacement
- Lock Ring Included: No
- Outlet Outside Diameter: 0.375
- Outlet Quantity: 3
- Outlet Type: Quick Connect
- Package Contents: Fuel Pump Module Assembly w/Float Arm, Instruction Sheet
- Pump Type: Electric
- Regulator Included: No
- Resistance Ohms Empty: 300.0
- Resistance Ohms Full: 46.0
- Strainer Included: Yes
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: Blade
- UPC: 689604325285
- Vapor Pressure Sensor: No
- Voltage: 12.0

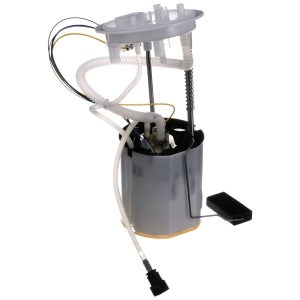

- Part Description: 2007 Audi S4 Fuel Pump Module Assembly
Vehicle Fitment- 2007 Audi S4 | Cabriolet | 8 Cyl 4.2L
Product Specifications- Notes: Color Black
- Cap Depth: 2.625
- Color: Black
- Freight Class: 85
- Fuel Cap Venting: Pressure Relief
- Locking: Yes
- Material: Plastic
- Neck Diameter: 1.750
- Shell Diameter: 2.938
- Tether Included: No
- UPC: 333420179798
- Part Description: 2007 Audi S4 Fuel Tank Cap
Vehicle Fitment- 2007 Audi S4 | All Trims | 8 Cyl 4.2L
