2008 Suzuki Grand Vitara A/C & Heating
My Vehicle Change Vehicle
2008 Suzuki Grand Vitara
$126.10Product Specifications- Includes Drier: No
- Mounting Hardware Included: No
- UPC: 042511208322
- Part Description: 2008 Suzuki Grand Vitara A/C Condenser
Vehicle Fitment- 2008 Suzuki Grand Vitara | All Trims | 6 Cyl 2.7L
$51.05Product Specifications- Notes: Cut to Length, 9"
- Centerline Length: 50 ft
- End 1 Inside Diameter: .625 in
- End 2 Inside Diameter: .625 in
- Material: EPDM
- OE Part Number: 8990
- UPC: 072053066319
- Weight Per Length: 11.70 lbs./Carton
- Working Pressure: 60 PSI
- Part Description: 2008 Suzuki Grand Vitara Safety Stripe Hvac Heater Hose
Vehicle Fitment- 2008 Suzuki Grand Vitara | All Trims | 6 Cyl 2.7L

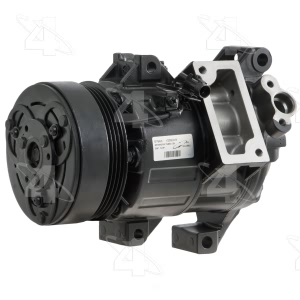

Four Seasons® Remanufactured A C Compressor With Clutch for 2008 Suzuki Grand Vitara
PartNumber: 67663$280.30Product Specifications- Notes: w/ DCS141C Compressor; Reman w/ Clutch
- Clutch Included: Yes
- Clutch Maximum Diameter: 4.375
- Coil Clock Position: Wire Lead
- Coil Voltage: 12
- Compatible Refrigerant Oil Type: PAG 46
- Compressor Type: DCS171C
- Discharge Port Type: O-Ring
- Distance From Clutch To Mounting Flange: 1.328125
- Mount Distance MM: 33.782
- Mounting Hardware: Not Included
- Mounting Type: Tangent Mount
- New or Reman: Remanufactured
- O-Ring A Number/Desc: [24681] / Green O-Ring
- O-Ring A Quantity: 1
- O-Ring B Number/Desc: [24661] / Green O-Ring
- O-Ring B Quantity: 1
- Pulley Belt Type: Serpentine
- Pulley Diameter MM: 111.125
- Pulley Groove Quantity: 4
- Pulley Lip Diameter: 4.375
- Pulley Outside Diameter: 4.375
- Pulley Ridge Diameter: 4.375
- Refrigerant Type: R134a
- Suction Port Type: O-Ring
- Terminal Type: Butt Connector
- UPC: 096361676633
- Part Description: 2008 Suzuki Grand Vitara Remanufactured A C Compressor With Clutch
Vehicle Fitment- 2008 Suzuki Grand Vitara | All Trims | All Engines
$16.75Product Specifications- Notes: OE Recommended Replacement filter; Premium electrostatically charged media; Captures ultra-fine particulates such as diesel carbon & smoke
- Filter Type: Electrostatic
- Length: 10.7"
- OE Part Number: 9586164J00, 9586164J01
- UPC: 042511196018
- Width: 8.31"
- Part Description: 2008 Suzuki Grand Vitara Cabin Air Filter
Vehicle Fitment- 2008 Suzuki Grand Vitara | All Trims | 6 Cyl 2.7L
$33.25Product Specifications- Notes: Cut to Length, 8";Cut to Length, 18";Cut to Length, 7"
- Centerline Length (in): 600"
- Inside Diameter 1 (in): 0.25"
- OE Part Number: 34580
- UPC: 072053133219
- Weight Per Length: 6 lbs./Carton
- Working Pressure (psi): 60
- Part Description: 2008 Suzuki Grand Vitara Safety Stripe Hvac Heater Hose
Vehicle Fitment- 2008 Suzuki Grand Vitara | All Trims | 6 Cyl 2.7L

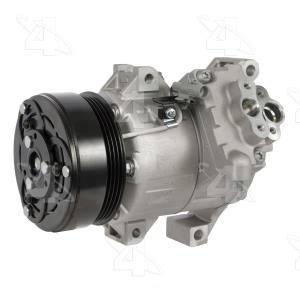

$557.76Product Specifications- Notes: w/DCS141C Compressor; New w/Clutch
- Clutch Included: Yes
- Clutch Maximum Diameter: 4.359375
- Coil Clock Position: Wire Lead
- Coil Voltage: 12
- Compatible Refrigerant Oil Type: PAG 46
- Compressor Type: DCS-141C
- Discharge Port Type: O-Ring
- Distance From Clutch To Mounting Flange: 1.3125
- Mounting Hardware: Not Included
- Mounting Type: Tangent Mount
- New or Reman: New
- O-Ring A Number/Desc: [24661] / Green O-Ring
- O-Ring A Quantity: 1
- O-Ring B Number/Desc: [24681] / Green O-Ring
- O-Ring B Quantity: 1
- Pulley Belt Type: Serpentine
- Pulley Groove Quantity: 4
- Pulley Lip Diameter: 4.359375
- Pulley Outside Diameter: 4.359375
- Pulley Ridge Diameter: 4.359375
- Refrigerant Type: R134a
- Suction Port Type: O-Ring
- Terminal Type: Pin
- UPC: 096361686632
- w/ Diode: No
- Part Description: 2008 Suzuki Grand Vitara A C Compressor With Clutch
Vehicle Fitment- 2008 Suzuki Grand Vitara | All Trims | All Engines
$9.30Product Specifications- Notes: Cut to Fit
- Color: Black
- Contains Heat Shield: N
- Contains Protective Sleeve: N
- End 1 Inside Diameter: 1/4
- End 2 Inside Diameter: 1/4
- Hose Type: Single I.D. Hose
- Material: EPDM
- SAE Specification: SAE J20R3 Class D-1, SAE J1684 Type EC
- Trunk Height: 8 1/4
- UPC: 038244597475
- Part Description: 2008 Suzuki Grand Vitara Small Id Hvac Heater Hose
Vehicle Fitment- 2008 Suzuki Grand Vitara | All Trims | 6 Cyl 2.7L
$10.77Product Specifications- Notes: Cut to fit
- Centerline Length (in): 10.5"
- Inside Diameter 1 (in): 0.5"
- Number of Branches: 0
- UPC: 072053191226
- Part Description: 2008 Suzuki Grand Vitara Hvac Heater Molded Hose
Vehicle Fitment- 2008 Suzuki Grand Vitara | All Trims | 6 Cyl 2.7L

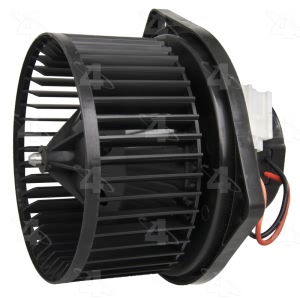

$71.86Product Specifications- Notes: w/ Wheel
- Cage Wheel Included: w/ Wheel
- Connector Gender: Female
- Connector qty: 1
- Flanged End: Yes
- Material: Plastic
- Motor Dia. MM: 76.200
- Motor Diameter: 3.000
- Motor Length: 3.625
- Motor Length MM: 92.075
- Mount Type: OE Mount
- New or Reman: New
- Number of Terminals: 2
- O.E. Replacement: Yes
- Rotation: CCW
- Shaft Diameter: 0.3125
- Shaft Length: 2.000
- Shaft Length MM: 50.800
- Style: Flanged
- Terminal Type: 2 Lead Wires w/ Connector
- UPC: 096361769519
- Vented: Vented
- Voltage: 12
- Wheel Dia. IN: 5.625
- Wheel Height IN: 2.500
- Part Description: 2008 Suzuki Grand Vitara Hvac Blower Motor With Wheel
Vehicle Fitment- 2008 Suzuki Grand Vitara | All Trims | All Engines
$24.53Product Specifications- Color: Aluminum
- Liquid Inlet Fitting Gender: Female
- Liquid Inlet Fitting Thread Diameter: No. 6
- Liquid Inlet Size IN: 0.390
- Liquid Inlet Size MM: 10.100
- Liquid Inlet Style: Captured O-Ring
- Liquid Inlet Type: Insert O-Ring
- Liquid Outlet Fitting Gender: Female
- Liquid Outlet Fitting Thread Diameter: No. 10; No. 8
- Liquid Outlet Style: Captured O-Ring
- Liquid Outlet Type: Insert O-Ring
- Lqd Out Size IN: 0.600
- Lqd Out Size MM: 15.400
- Material: Aluminum
- Meets / Exceeds OEM: Yes
- Mounting Hole Quantity: 2
- O-Ring A Number/Desc: [24109] / Green O-Ring
- O-Ring A Quantity: 1
- O-Ring B Number/Desc: [24626] / Green O-Ring
- O-Ring B Quantity: 1
- O-Ring C Number/Desc: [24642] / Green O-Ring
- O-Ring C Quantity: 2
- Refrigerant Type: R134A
- Style: w/o Solenoid
- Suc In Size IN: 0.710
- Suc In Size MM: 18.200
- Suc Out Size IN: 0.710
- Suc Out Size MM: 18.200
- Suction Inlet Fitting Gender: Female
- Suction Inlet Fitting Thread Diameter: No. 10; No. 12
- Suction Inlet Style: Captured O-Ring
- Suction Inlet Type: Insert O-Ring
- Suction Outlet Fitting Gender: Female
- Suction Outlet Fitting Thread Diameter: No. 10; No. 12
- Suction Outlet Style: Captured O-Ring
- Suction Outlet Type: Insert O-Ring
- Super Heat: -1.000
- Switch Included: Not Included
- Tonnage: 1.5
- UPC: 096361392786
- Part Description: 2008 Suzuki Grand Vitara A C Expansion Valve
Vehicle Fitment- 2008 Suzuki Grand Vitara | All Trims | All Engines
$11.24Product Specifications- Notes: Cut to fit
- Centerline Length (in): 11"
- Inside Diameter 1 (in): 0.25"
- Number of Branches: 0
- UPC: 072053412246
- Part Description: 2008 Suzuki Grand Vitara Hvac Heater Molded Hose
Vehicle Fitment- 2008 Suzuki Grand Vitara | All Trims | 6 Cyl 2.7L
$17.37Product Specifications- Color: White
- Desiccant Length IN: 8.500
- Desiccant Wt Grams: 35
- Gasket or Seal Included: Sealing Washer and or O-Rings Included
- Length: 8.500
- Material: Cloth
- Outside Diameter: 1.000
- Style: Desiccant
- Thickness: 1.0000
- Universal Or Specific Fit: Direct
- UPC: 096361832480
- Width IN: 1.0000
- Part Description: 2008 Suzuki Grand Vitara Filter Drier Desiccant Bag Kit
Vehicle Fitment- 2008 Suzuki Grand Vitara | All Trims | All Engines
$5.91Product Specifications- Notes: Cut to fit
- Centerline Length (in): 4.2"
- Inside Diameter 1 (in): 0.23"
- Number of Branches: 0
- OE Part Number: 31124
- UPC: 072053309256
- Part Description: 2008 Suzuki Grand Vitara Hvac Heater Molded Hose
Vehicle Fitment- 2008 Suzuki Grand Vitara | All Trims | 6 Cyl 2.7L
$12.94Product Specifications- Notes: Caps and Valve Core Seal Kit; w/ JRA Valves
- Cap Color: Red, Blue
- Cap Inside Diameter: Specific
- Cap Material: Plastic
- Material: Aluminum
- Refrigerant Type: R12, R134a
- Style: Cap & Valve Kit
- UPC: 096361267831
- Valve Core Material: Specific
- Part Description: 2008 Suzuki Grand Vitara A C System Valve Core And Cap Kit
Vehicle Fitment- 2008 Suzuki Grand Vitara | All Trims | All Engines
$9.97Product Specifications- Notes: O-Ring & Gasket Seal Kit; Factory Air
- Material: Green Rubber O-Rings
- Style: O-Ring & Gasket Kit
- UPC: 096361070738
- Part Description: 2008 Suzuki Grand Vitara A C System O Ring And Gasket Kit
Vehicle Fitment- 2008 Suzuki Grand Vitara | All Trims | All Engines
$9.82Product Specifications- Color: Black
- Contains Heat Shield: N
- Contains Protective Sleeve: N
- End 1 Inside Diameter: 1/2
- End 2 Inside Diameter: 1/2
- Hose Type: Single I.D. Hose
- Material: EPDM
- SAE Specification: SAE J20R3 Class D-1, SAE J1684 Type EC
- Trunk Height: 7 1/2
- UPC: 038244597796
- Part Description: 2008 Suzuki Grand Vitara Outlet Rear Small Id Hvac Heater Hose
Vehicle Fitment- 2008 Suzuki Grand Vitara | All Trims | 6 Cyl 2.7L
$14.43Product Specifications- Notes: Cut to fit
- Centerline Length (in): 11.9"
- Inside Diameter 1 (in): 0.31"
- Number of Branches: 0
- UPC: 072053191400
- Part Description: 2008 Suzuki Grand Vitara Hvac Heater Molded Hose
Vehicle Fitment- 2008 Suzuki Grand Vitara | All Trims | 6 Cyl 2.7L
$75.83Product Specifications- Connector Gender: Female
- Connector Shape: Square
- Meets / Exceeds OEM: Yes
- Number of Terminals: 3
- Speed: Variable
- Terminal Type: Spade
- UPC: 096361203730
- Part Description: 2008 Suzuki Grand Vitara Hvac Blower Motor Resistor
Vehicle Fitment- 2008 Suzuki Grand Vitara | All Trims | All Engines
Product Specifications- Filter Type: Particulate
- Height: 0.825" (21mm)
- Length: 10.66" (271mm)
- OE Part Number: 9586164J00, 9586164J01, 9586164J10000, 9586164J10, 9586164J01000, 9586164J00000
- UPC: 765809242005
- Width: 7.75" (197mm)
- Part Description: 2008 Suzuki Grand Vitara Cabin Air Filter
Vehicle Fitment- 2008 Suzuki Grand Vitara | All Trims | 6 Cyl 2.7L
Product Specifications- Pallet Layer Quantity: 126
- Part Description: 2008 Suzuki Grand Vitara Cabin Air Filter
Vehicle Fitment- 2008 Suzuki Grand Vitara | All Trims | 6 Cyl 2.7L
