2009 GMC Sierra 3500 HD Driveline, Axles & 4WD

My Vehicle Change Vehicle
2009 GMC Sierra 3500 HD
Change Vehicle
Vehicle Options
We need more information about your vehicle to make a correct determination of fitment
< Back to View All
Engine & Drivetrain

189 products about 2009 GMC Sierra 3500 HD Driveline, Axles & 4WD found

Sort by:
Recommended
Filter Results
Sort
View by
  • Anchor Driveshaft Center Support Bearing for 2009 GMC Sierra 3500 HD - 6071
    $26.50
    Product Specifications
    • Notes: BEARING ID / BORE: 1.5750 INCH / 40 MM;CENTERLINE: 2.28 INCH / 58 MM;MOUNT WIDTH: 6.62 INCH / 168 MM;STYLE: ROUND FRAME;w/o PLATE;w/o STUDS;Extd DUST SHIELD;
    • Inside Diameter: 1.575"
    • OE Part Number: 37520-ZL60A
    • Plate: No
    • Studs: No
    • UPC: 081106060716
    • Part Description: 2009 GMC Sierra 3500 HD Driveshaft Center Support Bearing
    More Info
    Vehicle Fitment
    • 2009 GMC Sierra 3500 HD | All Trims | 8 Cyl 6.0L
    • 2009 GMC Sierra 3500 HD | All Trims | 8 Cyl 6.6L
  • Westar Driveshaft Center Support for 2009 GMC Sierra 3500 HD - DS-6071
    $31.12
    Product Specifications
    • Notes: U-Shaped Bracket; w/o Studs; Bearings ID = 1.5748 - 1.5743" (40mm)
    • UPC: 656591060710
    • Part Description: 2009 GMC Sierra 3500 HD Driveshaft Center Support
    More Info
    Vehicle Fitment
    • 2009 GMC Sierra 3500 HD | All Trims | All Engines
  • Cardone Reman Remanufactured CV Axle Assembly for 2009 GMC Sierra 3500 HD - 60-1325
    $89.18
    Product Specifications
    • Notes: Supplied with Standard Neoprene Outboard Boot
    • ABS Ring Included: No
    • Axle Nut Locking Type: Self Lock
    • Input Shaft Bolt Count: 6
    • Input Shaft Connection Style: Bolt-On
    • Length: 21 11/16"
    • Output Shaft Connection Style: Spline
    • Output Shaft Spline Count: 33
    • Product Condition: Remanufactured
    • Spindle Nut Hex Head Size: 36mm
    • Spindle Nut Included: Yes
    • Spindle Nut Thread Size: M24 x 2.0
    • Part Description: 2009 GMC Sierra 3500 HD Remanufactured CV Axle Assembly
    More Info
    Vehicle Fitment
    • 2009 GMC Sierra 3500 HD | All Trims | All Engines
  • Victor Reinz Rear Axle Shaft Flange Gasket for 2009 GMC Sierra 3500 HD - 71-14650-00
    $4.68
    Product Specifications
    • Notes: Size- 2-23/32in x 4-7/16in;8 Bolt;Rear
    • Bolt Hole Quantity: 8
    • Complete: Y
    • Contains Applications: Y
    • Meets or Exceeds OEM Specs: Y
    • Release Wave: 12/15/2017
    • Shape: Round
    • Thickness: 0.025
    • UPC: 023913681265
    • Part Description: 2009 GMC Sierra 3500 HD Rear Axle Shaft Flange Gasket
    More Info
    Vehicle Fitment
    • 2009 GMC Sierra 3500 HD | All Trims | 8 Cyl 6.0L
    • 2009 GMC Sierra 3500 HD | All Trims | 8 Cyl 6.6L
  • Dorman OE Solutions Rear Differential Ring And Pinion for 2009 GMC Sierra 3500 HD - 697-133
    $489.80
    Product Specifications
    • Notes: w/3.73 Axle Ratio; 11.5" Ring Gear
    • Gear Ratio: 3.73
    • Item Grade: Standard Replacement
    • UPC: 037495170772
    • Part Description: 2009 GMC Sierra 3500 HD OE Solutions Rear Differential Ring And Pinion
    More Info
    Vehicle Fitment
    • 2009 GMC Sierra 3500 HD | All Trims | All Engines
  • $232.37 MSRP: $461.06
    You Save: $228.69 (50%)
    Product Specifications
    • Other Names: Front Hub
    • Item Dimensions: 9.2 x 8.6 x 6.8 inches
    • Item Weight: 13.30 Pounds
    • Replaced by: 84856654
    • Part Description: 2009 GMC Sierra 3500 HD Front Wheel Bearing (W/ Bearing & Wheel Speed Sensor)
    More Info
  • Dorman OE Solutions Rear Driver Side Axle Shaft for 2009 GMC Sierra 3500 HD - 630-145
    $216.98
    Product Specifications
    • Notes: 9,900lb GVW; 11.5" Ring Gear
    • ABS Tone Ring Installed: Not Included
    • Axle Type: Solid Shaft Axle
    • Hole Quantity: 8
    • Length: 35.95"
    • Material: Carbon Steel
    • OE Part Number: 12471486
    • Spline Quantity: 30 Spline
    • UPC: 019495227427
    • Wheel Lug Quantity: 8
    • Part Description: 2009 GMC Sierra 3500 HD OE Solutions Rear Driver Side Axle Shaft
    More Info
    Vehicle Fitment
    • 2009 GMC Sierra 3500 HD | All Trims | All Engines
  • SKF Driveshaft Center Support Bearing for 2009 GMC Sierra 3500 HD - HB88560
    $87.79
    Product Specifications
    • Notes: Bearing & Support
    • Bolt Hole Center: 6.664"
    • Inside Diameter: 1.575"
    • Outside Diameter: 4.430"
    • UPC: 085311523493
    • Width: 2.134"
    • Part Description: 2009 GMC Sierra 3500 HD Driveshaft Center Support Bearing
    More Info
    Vehicle Fitment
    • 2009 GMC Sierra 3500 HD | All Trims | All Engines
  • National Differential Bearing for 2009 GMC Sierra 3500 HD - 110
    $48.72
    Product Specifications
    • Notes: w/Magna 1626 Transfer Case; 2Spd; w/Part Time 4WD;w/Magna 1226 Transfer Case; 2Spd; w/Part Time 4WD
    • Type: A-1
    • Part Description: 2009 GMC Sierra 3500 HD Differential Bearing
    More Info
    Vehicle Fitment
    • 2009 GMC Sierra 3500 HD | All Trims | All Engines
  • Dorman Oe Solutions Rear Drive Shaft Slip Yoke for 2009 GMC Sierra 3500 HD - 697-519
    $112.83
    Product Specifications
    • Bearing Cap(s) Included: No
    • Bearing Strap(s) Included: No
    • Grade Type: Regular
    • Grease Fitting Included: No
    • Inside Diameter: 1.54"
    • Material: Steel
    • OE Part Number: 15897994
    • Overall Length (In): 9.23 In.
    • Package Contents: 1 Slip Yoke
    • Segment Length: 4.46 In.
    • Shaft Diameter: 2.2 In.
    • Shaft Length: 6.06 In.
    • Splines Quantity: 35
    • U Bolt(s) Included: No
    • U Joint Bearing Cap Diameter Axis: 1.19 In.
    • Universal Joint Style: Yes
    • Universal Joint(s) Included: No
    • UPC: 037495083843
    • Part Description: 2009 GMC Sierra 3500 HD Oe Solutions Rear Drive Shaft Slip Yoke
    More Info
    Vehicle Fitment
    • 2009 GMC Sierra 3500 HD | All Trims | All Engines
  • National Rear Inner Differential Pinion Race for 2009 GMC Sierra 3500 HD - HM807010
    $24.55
    Product Specifications
    • Notes: with AAM Differential; with 11.5in Ring Gear
    • Part Description: 2009 GMC Sierra 3500 HD Rear Inner Differential Pinion Race
    Vehicle Fitment
    • 2009 GMC Sierra 3500 HD | All Trims | All Engines
  • $12.23 MSRP: $22.22
    You Save: $9.99 (45%)
    Product Specifications
    • Notes: Silverado, Sierra; 8.50, 8.625;Silverado, Sierra; 9.50
    • Item Dimensions: 3.6 x 3.7 x 0.7 inches
    • Item Weight: 0.50 Pounds
    • Fitment Type: Direct Replacement
    • Replaces: 26037309, 15522060
    • Part Description: 2009 GMC Sierra 3500 HD Axle Seal
    More Info
    Vehicle Fitment
    • 2009 GMC Sierra 3500 HD | SLE, SLT, WT | 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL
  • Dorman OE Solutions Rear Differential Ring And Pinion for 2009 GMC Sierra 3500 HD - 697-134
    $481.86
    Product Specifications
    • Notes: 11.5" Ring Gear; w/4.10 Axle Ratio
    • Gear Ratio: 4.10
    • Item Grade: Standard Replacement
    • UPC: 037495170789
    • Part Description: 2009 GMC Sierra 3500 HD OE Solutions Rear Differential Ring And Pinion
    More Info
    Vehicle Fitment
    • 2009 GMC Sierra 3500 HD | All Trims | All Engines
  • SKF Front Outer Differential Bearing for 2009 GMC Sierra 3500 HD - 6210-J
    $43.13
    Product Specifications
    • Notes: MP1226 Transfer Case:
    • Inner Diameter: 1.9685"
    • Outer Diameter: 3.5433"
    • UPC: 085311062916
    • Width: 0.7874"
    • Part Description: 2009 GMC Sierra 3500 HD Front Outer Differential Bearing
    More Info
    Vehicle Fitment
    • 2009 GMC Sierra 3500 HD | All Trims | All Engines
  • Dorman OE Solutions 4Wd Actuator for 2009 GMC Sierra 3500 HD - 600-101
    $95.60
    Product Specifications
    • Housing Material: Plastic
    • OE Part Number: 26060073, 8-26060-073-0
    • Package Contents: 4wd Actuator Assembly
    • Terminal Quantity: 5
    • Terminal Type: Blade
    • UPC: 019495058922
    • Wiring Harness Included: No
    • Part Description: 2009 GMC Sierra 3500 HD OE Solutions 4Wd Actuator
    More Info
    Vehicle Fitment
    • 2009 GMC Sierra 3500 HD | All Trims | All Engines
  • GMB Grade Standard U-Joint for 2009 GMC Sierra 3500 HD - 231-0188
    $20.70
    Product Specifications
    • Notes: Std Grade
    • Dimension: 1.375" Cap Diameter
    • Height (Inch): 2.30
    • Length (Inch): 4.0
    • UPC: 083286122468
    • Weight (Gross Pounds): 2.30
    • Width (Inch): 4.0
    • Part Description: 2009 GMC Sierra 3500 HD Grade Standard U-Joint
    More Info
    Vehicle Fitment
    • 2009 GMC Sierra 3500 HD | All Trims | All Engines

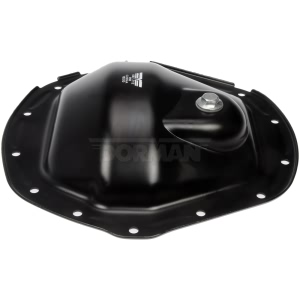

  • Dorman OE Solutions Rear Differential Cover for 2009 GMC Sierra 3500 HD - 697-712
    $42.04
    Product Specifications
    • Notes: 11.5" Ring Gear
    • Color/Finish: Gray
    • Differential Cover Bolt Count: 14
    • Differential Cover Bolts/Studs Included: No
    • Differential Cover Carrier Main Cap Support: No
    • Differential Cover/Case Filler Plug Included: Yes
    • Differential Cover/Case Material: Steel
    • Gasket Material: Not Applicable
    • Gasket or Seal Included: No
    • OE Part Number: 12471446
    • UPC: 037495049252
    • Part Description: 2009 GMC Sierra 3500 HD OE Solutions Rear Differential Cover
    More Info
    Vehicle Fitment
    • 2009 GMC Sierra 3500 HD | All Trims | All Engines
  • $12.31 MSRP: $21.39
    You Save: $9.08 (43%)
    Product Specifications
    • Notes: 3/4 & 1 Ton, 11.50 Ring Gear
    • Other Names: Cover Gasket
    • Item Dimensions: 18.7 x 14.6 x 0.5 inches
    • Item Weight: 0.50 Pounds
    • Fitment Type: Direct Replacement
    • Part Description: 2009 GMC Sierra 3500 HD Gasket, Rear Axle Housing Cover
    More Info
    Vehicle Fitment
    • 2009 GMC Sierra 3500 HD | Base, Denali, SLE, SLT, WT | 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL
  • GMB Grade Performance™ Front U-Joint for 2009 GMC Sierra 3500 HD - 215-0160
    $15.06
    Product Specifications
    • Notes: Grease Fitting in Cross; Perf Grade
    • Bearing Cap Diameter: 1.188"
    • Lock Ring Size: 4.185"
    • Lock Ring Type: External
    • Lubrication Method: Grease Fitting in Cross
    • UPC: 083286351608
    • Part Description: 2009 GMC Sierra 3500 HD Grade Performance™ Front U-Joint
    More Info
    Vehicle Fitment
    • 2009 GMC Sierra 3500 HD | All Trims | All Engines
  • GMB Universal Joint Strap Kit for 2009 GMC Sierra 3500 HD - 260-4105
    $5.13
    Product Specifications
    • Height (Inch): 1.30
    • Length (Inch): 3.50
    • UPC: 031447984073
    • Width (Inch): 3.50
    • Part Description: 2009 GMC Sierra 3500 HD Universal Joint Strap Kit
    More Info
    Vehicle Fitment
    • 2009 GMC Sierra 3500 HD | All Trims | All Engines
  • National Front Outer Differential Pinion Bearing for 2009 GMC Sierra 3500 HD - M802048
    $17.07
    Product Specifications
    • Notes: with AAM Axle; with 11.5in Ring Gear
    • UPC: 724956020683
    • Part Description: 2009 GMC Sierra 3500 HD Front Outer Differential Pinion Bearing
    More Info
    Vehicle Fitment
    • 2009 GMC Sierra 3500 HD | All Trims | All Engines
  • National Automatic Transmission Transfer Shaft Race for 2009 GMC Sierra 3500 HD - M802011
    $9.26
    Product Specifications
    • Notes: with AAM Differential; with 11.5in Ring Gear
    • Cup Bore: 3.2500" / 82.55 mm
    • Cup Length: 0.7950" / 20.193 mm
    • Cup Radius: 0.1250" / 3,175 mm
    • Part Description: 2009 GMC Sierra 3500 HD Automatic Transmission Transfer Shaft Race
    More Info
    Vehicle Fitment
    • 2009 GMC Sierra 3500 HD | All Trims | All Engines
  • GMB Spicer 1410 Series Grade Standard U-Joint for 2009 GMC Sierra 3500 HD - 210-0160
    $12.83
    Product Specifications
    • Notes: Std Grade; Grease Fitting in Cross
    • Bearing Cap Axis 1 Diameter: 1.19"
    • Bearing Cap Axis 2 Diameter: 1.19"
    • Bearing Cap Type: Plain
    • Dimension: 1.188" Cap Diameter
    • Greasable: Yes
    • Height (Inch): 1.30"
    • Length (Inch): 4.0"
    • Length Axis 1: 4.19"
    • Length Axis 2: 30.18"
    • Lock Ring Location: External
    • Lube Fitting Location: Grease Fitting in Cross
    • Material: Steel With Black Oxide Coating
    • Mounting Hardware Included: Yes
    • UPC: 826732593661
    • Weight (Gross Pounds): 1.80"
    • Width (Inch): 4.0"
    • Part Description: 2009 GMC Sierra 3500 HD Spicer 1410 Series Grade Standard U-Joint
    More Info
    Vehicle Fitment
    • 2009 GMC Sierra 3500 HD | All Trims | All Engines
  • $50.12 MSRP: $87.24
    You Save: $37.12 (43%)
    Product Specifications
    • Notes: Silverado, Sierra; 2500, 3500 Series
    • Other Names: Universal Joints
    • Item Dimensions: 5.8 x 5.3 x 2.8 inches
    • Item Weight: 1.70 Pounds
    • Fitment Type: Direct Replacement
    • Replaces: 26042371, 12471502, 12479126
    • Part Description: 2009 GMC Sierra 3500 HD Joint Kit-Front Axle Propeller Shaft Front Universal
    More Info
    Vehicle Fitment
    • 2009 GMC Sierra 3500 HD | Base, Denali, SLE, SLT, WT | 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL
  • SKF Rear Inner Axle Shaft Bearing for 2009 GMC Sierra 3500 HD - HM804846
    $35.60
    Product Specifications
    • Cone ID: 1.875"
    • Cone Length: 1.156"
    • Cone Radius: 0.14"
    • UPC: 085311071383
    • Width: 1.187"
    • Part Description: 2009 GMC Sierra 3500 HD Rear Inner Axle Shaft Bearing
    More Info
    Vehicle Fitment
    • 2009 GMC Sierra 3500 HD | All Trims | All Engines
  • GMB Grade Performance™ Rear U-Joint for 2009 GMC Sierra 3500 HD - 215-3105
    $12.77
    Product Specifications
    • Notes: Grease Fitting in Cross; Perf Grade; Inside Lock Rings
    • Bearing Cap Diameter: 1.125"
    • Lock Ring Type: Internal
    • Lubrication Method: Grease Fitting in Cross
    • UPC: 083286531055
    • Part Description: 2009 GMC Sierra 3500 HD Grade Performance™ Rear U-Joint
    More Info
    Vehicle Fitment
    • 2009 GMC Sierra 3500 HD | All Trims | All Engines
  • SKF Rear Axle Shaft Bearing for 2009 GMC Sierra 3500 HD - BR3984
    $27.46
    Product Specifications
    • Notes: 11.50" Ring Gear
    • Cone ID: 2.625"
    • Cone Length: 1.183"
    • Cone Radius: 0.14"
    • UPC: 085311051934
    • Width: 1.183"
    • Part Description: 2009 GMC Sierra 3500 HD Rear Axle Shaft Bearing
    More Info
    Vehicle Fitment
    • 2009 GMC Sierra 3500 HD | All Trims | All Engines
  • National Front Inner Axle Shaft Bearing for 2009 GMC Sierra 3500 HD - B-2610
    $16.03
    Product Specifications
    • Notes: with AAM Axle; Independent Front Suspension; with 9.25in Ring Gear
    • Bore (Inch): 1.625
    • Bore (mm): 41.275
    • Housing Diameter Max (Inch): 2.000
    • Housing Diameter Max (mm): 50.812
    • Housing Diameter Min (Inch): 1.999
    • Housing Diameter Min (mm): 50.787
    • Outside Diameter: 2"
    • Outside Diameter (mm): 50.8000
    • Shaft Diameter Max (Inch): 1.625
    • Shaft Diameter Max (mm): 41.275
    • Shaft Diameter Min (Inch): 1.624
    • Shaft Diameter Min (mm): 41.262
    • Type: B
    • Width: 0.625"
    • Width (mm): 15.8750
    • Part Description: 2009 GMC Sierra 3500 HD Front Inner Axle Shaft Bearing
    More Info
    Vehicle Fitment
    • 2009 GMC Sierra 3500 HD | All Trims | All Engines
  • SKF Center Greaseable U Joint for 2009 GMC Sierra 3500 HD - UJ295A
    $21.08
    Product Specifications
    • Notes: HD; Brute Force Greaseable
    • Outer Diameter: 1.188"
    • Outside Lock-Up 1: 4.178"
    • UPC: 085311541381
    • Part Description: 2009 GMC Sierra 3500 HD Center Greaseable U Joint
    More Info
    Vehicle Fitment
    • 2009 GMC Sierra 3500 HD | All Trims | All Engines
  • $50.12 MSRP: $87.24
    You Save: $37.12 (43%)
    Product Specifications
    • Notes: Silverado, Sierra; 2500, 3500 Series
    • Other Names: Universal Joints
    • Item Dimensions: 5.8 x 5.3 x 2.8 inches
    • Item Weight: 1.70 Pounds
    • Fitment Type: Direct Replacement
    • Replaces: 26042371, 12471502, 12479126
    • Part Description: 2009 GMC Sierra 3500 HD Joint Kit-Front Axle Propeller Shaft Front Universal
    More Info
    Vehicle Fitment
    • 2009 GMC Sierra 3500 HD | Base, Denali, SLE, SLT, WT | 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL
1-30 of 189 Results
< Previous
12345
Next >
