2010 Mercedes-Benz ML350 Fuel Systems & Components
My Vehicle Change Vehicle
2010 Mercedes-Benz ML350
< Back to View All
Engine & Drivetrain
- Department
- Part Type
- Brands
- Prices

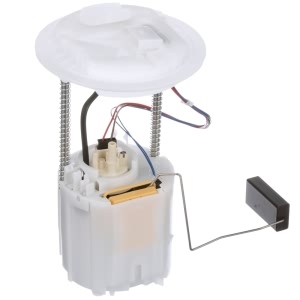

Delphi® Passenger Side Fuel Pump Module Assembly for 2010 Mercedes-Benz ML350
PartNumber: FG2173$701.22Product Specifications- Notes: Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
- Fuel Level Sender Assembly Included: Yes
- Fuel Type: Diesel
- Gasket or Seal Included: No
- In Tank or External: In Tank
- Inlet Type: Strainer
- Internal or External Strainer: Internal
- Item Grade: Standard Replacement
- Lock Ring Included: No
- Outlet Outside Diameter: 0.313''
- Outlet Quantity: 2
- Outlet Type: Quick Connect
- Package Contents: Fuel Pump Module Assembly withFloat Arm, Instruction Sheet
- Pump Type: Electric
- Regulator Included: No
- Resistance Ohms Empty: 240.0
- Resistance Ohms Full: 990.0
- Strainer Included: Yes
- Terminal Gender: Male
- Terminal Quantity: 5
- Terminal Type: Blade
- UPC: 689604291016
- Vapor Pressure Sensor: No
- Voltage: 12.0 VDC
- Part Description: 2010 Mercedes-Benz ML350 Passenger Side Fuel Pump Module Assembly
Vehicle Fitment- 2010 Mercedes-Benz ML350 | All Trims | 6 Cyl 3.0L
Product Specifications- Cam Type: Quick-On
- Depth: 2.61
- Lockable: Yes
- Shell Diameter: 2.91
- Thread Diameter: 1.78
- UPC: 770075773269
- Venting: Emission Control
- Part Description: 2010 Mercedes-Benz ML350 Keyed Alike Fuel Tank Cap
Vehicle Fitment- 2010 Mercedes-Benz ML350 | All Trims | 6 Cyl 3.5L
Product Specifications- Notes: For Vehicles with Detachable Filter Heater and Water Sensor
- Class: D
- Duty Type: LD
- Height: 4.523''
- Inlet: .400''
- Inner Diameter Top: Closed
- MediaType: Cellulose
- Micron: 5.00 Micron
- Outer Diameter Top: 3.622''
- Outlet: 5/16''
- Style: Fuel (Complete In-Line) Filter
- UPC: 765809332508
- Part Description: 2010 Mercedes-Benz ML350 Complete In Line Fuel Filter
Vehicle Fitment- 2010 Mercedes-Benz ML350 | All Trims | 6 Cyl 3.0L
Product Specifications- Notes: Grade: Aftermarket; Description: Injection System
- Height: 1.56 mm
- Part Description: 2010 Mercedes-Benz ML350 Fuel Injector Seal
Vehicle Fitment- 2010 Mercedes-Benz ML350 | Bluetec 4Matic | All Engines
Product Specifications- Notes: Color Green; Green
- Cam Type: Quick-On
- Cap Depth: 2.41"
- Color: Green
- Neck Diameter: 1.78"
- Shell Diameter: 2.78"
- UPC: 033342118829
- Venting: Pressure Vacuum
- Part Description: 2010 Mercedes-Benz ML350 Fuel Tank Cap
Vehicle Fitment- 2010 Mercedes-Benz ML350 | All Trims | 6 Cyl 3.0L
Product Specifications- Notes: Incls Connector For Heating Element; Maximum Pressure (metric): 6 Bar; Electrical Connector: 5-pin
- Electrical Connector: 5-Pin
- Maximum Pressure: 6 Bar
- Part Description: 2010 Mercedes-Benz ML350 In-Line Fuel Filter
Vehicle Fitment- 2010 Mercedes-Benz ML350 | All Trims | 6 Cyl 3.0L
Product Specifications- Cam Type: Quick-On
- Cap Depth: 2.41"
- Locking: No
- Neck Diameter: 2.78"
- Shell Diameter: 1.78"
- Type: OE Equivalent Fuel Cap
- UPC: 072053638943
- Venting: Emission Control
- Part Description: 2010 Mercedes-Benz ML350 Replacement Non Locking Fuel Tank Cap
Vehicle Fitment- 2010 Mercedes-Benz ML350 | All Trims | 6 Cyl 3.5L
Product Specifications- Notes: Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
- Fuel Level Sender Assembly Included: Yes
- Fuel Type: Gas
- Gasket or Seal Included: No
- In Tank or External: In Tank
- Inlet Type: Strainer
- Internal or External Strainer: External
- Item Grade: Standard Replacement
- Outlet Outside Diameter: 0.375''
- Outlet Quantity: 1
- Outlet Type: Quick Connect
- Package Contents: Fuel Transfer Unit with Float Arm, Instruction Sheet
- Regulator Included: Yes
- Resistance Ohms Empty: 990.0
- Resistance Ohms Full: 111.0
- Strainer Included: Yes
- Terminal Gender: Female
- Terminal Quantity: 2
- Terminal Type: Blade
- UPC: 689604279762
- Vapor Pressure Sensor: No
- Part Description: 2010 Mercedes-Benz ML350 Fuel Tank Sending Unit
Vehicle Fitment- 2010 Mercedes-Benz ML350 | All Trims | 6 Cyl 3.5L
Product Specifications- Notes: Filter has a sensor port - remove sensor from the old filter and reinstall on the new filter
- Class: HB
- Duty Type: HD
- FlowRate: 1 GPM GPM
- Height: 5.026''
- Inlet: .400''
- Inner Diameter Top: Closed
- MediaType: Cellulose
- Micron: 5.00 Micron
- OE Part Number: 6460920701
- Outer Diameter Top: 3.594''
- Outlet: 5/16''
- Style: Fuel (Complete In-Line) Filter
- UPC: 765809339347
- Part Description: 2010 Mercedes-Benz ML350 Complete In Line Fuel Filter
Vehicle Fitment- 2010 Mercedes-Benz ML350 | All Trims | 6 Cyl 3.0L
Product Specifications- Notes: Incls Connector For Heating Element (180 W); Biodiesel Resistant
- Remanufactured: N
- Part Description: 2010 Mercedes-Benz ML350 In-Line Fuel Filter
Vehicle Fitment- 2010 Mercedes-Benz ML350 | All Trims | 6 Cyl 3.0L
Product Specifications- Notes: Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
- Current Draw: 9
- Flow Rating: 21 gph
- Fuel Level Sender Assembly Included: Yes
- Fuel Type: Gas
- Gasket or Seal Included: No
- In Tank or External: In Tank
- Inlet Type: Strainer
- Internal or External Strainer: Internal
- Item Grade: Standard Replacement
- Maximum Pressure: 80.0 PSI
- Outlet Outside Diameter: 0.313''
- Outlet Quantity: 1
- Outlet Type: Quick Connect
- Pump Type: Electric
- Regulator Included: No
- Resistance Ohms Empty: 990.0
- Resistance Ohms Full: 230.0
- Strainer Included: Yes
- System Pressure: 58 psi
- Terminal Gender: Male
- Terminal Quantity: 5
- Terminal Type: Blade
- UPC: 886931270121
- Vapor Pressure Sensor: No
- Voltage: 12.0 VDC
- Part Description: 2010 Mercedes-Benz ML350 Fuel Pump Module Assembly
Vehicle Fitment- 2010 Mercedes-Benz ML350 | All Trims | 6 Cyl 3.5L
Product Specifications- Notes: For Vehicles with Detachable Filter Heater
- Class: W
- Duty Type: LD
- Height: 4.687''
- Inlet: 3/8''
- Inner Diameter Top: Closed
- MediaType: Cellulose
- Micron: 0.00 Micron
- Outer Diameter Top: 3.562''
- Outlet: 5/16''
- Style: Fuel (Complete In-Line) Filter
- UPC: 765809332515
- Part Description: 2010 Mercedes-Benz ML350 Complete In Line Fuel Filter
Vehicle Fitment- 2010 Mercedes-Benz ML350 | All Trims | 6 Cyl 3.0L
Product Specifications- Notes: Incls Connector For Water Sensor; Biodiesel Resistant; Electrical Connector: 3-pin; For Center Water Level Sensor
- Remanufactured: N
- Part Description: 2010 Mercedes-Benz ML350 Fuel Filter
Vehicle Fitment- 2010 Mercedes-Benz ML350 | All Trims | 6 Cyl 3.0L
Product Specifications- Cam Type: Quick-On
- Cap Depth: 2.61"
- Locking: Yes
- Neck Diameter: 1.78"
- Shell Diameter: 2.91"
- Type: Regular Fuel Cap
- UPC: 072053608571
- Venting: Emission Control
- Part Description: 2010 Mercedes-Benz ML350 Locking Fuel Tank Cap
Vehicle Fitment- 2010 Mercedes-Benz ML350 | All Trims | 6 Cyl 3.5L
Product Specifications- Gasket or Seal Included: No
- Inlet Count: 1
- Inlet Type: STRAINER
- Internal or External: Internal
- Item Grade: STANDARD REPLACEMENT
- Maximum Free Flow Rate (gph): 85
- Maximum Pressure (psi): 115
- Minimum Free Flow Rate (gph): 75
- Minimum Pressure (psi): 105
- Outlet Count: 1
- Package Contents: PUMP & KIT
- Package Quantity: 1
- Pump Type: Electrical
- UPC: 080044044109
- Wiring Harness Included: No
- Part Description: 2010 Mercedes-Benz ML350 Fuel Pump Module Assembly
Vehicle Fitment- 2010 Mercedes-Benz ML350 | All Trims | 6 Cyl 3.5L
- 2010 Mercedes-Benz ML350 | All Trims | 8 Cyl 5.5L
Product Specifications- Average Current Draw(A): 10
- Average Flow Rating(GPH): 48.87
- Connector Gender: Male
- Connector Quantity: 1
- Connector Shape: Racetrack
- Country of Orign: China
- Fuel Filter Included: No
- Fuel Sending Unit Included: Yes
- Fuel Tank Pressure Sensor Included: No
- Gasket or Seal Included: Yes
- Gasket Or Seal Material: NBR
- Grade Type: Performance
- Housing Material: POM
- In Tank or External: In Tank
- Inlet Size: 0.295
- Inlet Type: Strainer
- Installation Warnings: No
- Internal Or External Strainer: Internal
- Maximum Pump Pressure (PSI): 145
- Minimum Pump Pressure (PSI): 87
- Mounting Hardware Included: No
- Negative Ground: Yes
- Outlet Quantity: 1
- Outlet Type: Quick Connect
- Product Height (in): 6.3
- Product Length (in): 10.83
- Product Width (in): 10.79
- Pump Type: Turbine
- Regulator Included: No
- Resistance Ohms Empty: 990
- Resistance Ohms Full: 230
- Strainer Included: Yes
- Terminal Gender: Male
- Terminal Quantity: 5
- Terminal Type: PIN
- UPC: 00072845149350
- Voltage: 12V
- Weight (lbs): 2.73
- Wire Harness Included: No
- Part Description: 2010 Mercedes-Benz ML350 Fuel Pump Module Assembly
Vehicle Fitment- 2010 Mercedes-Benz ML350 | All Trims | 6 Cyl 3.5L
- 2010 Mercedes-Benz ML350 | All Trims | 8 Cyl 5.5L
Hastings® In Line Diesel Fuel Filter With Sensor Port for 2010 Mercedes-Benz ML350
PartNumber: FF1170Product Specifications- Notes: Optional w/Sensor Port
- Contains: 5/16'' Drainback Valve;Bleeder Cap;Plastic Filter Collar
- Height: 5" (127.0 mm)
- Inlet: 3/8
- Length: 5" (127.0 mm)
- Notes: Sensor must be removed from old filter and reinstalled on FF1170.
- O-Ring: x2 Included
- Outside Diameter: 3 19/32" (91.3 mm)
- UPC: 768370051502
- Part Description: 2010 Mercedes-Benz ML350 In Line Diesel Fuel Filter With Sensor Port
Vehicle Fitment- 2010 Mercedes-Benz ML350 | All Trims | 6 Cyl 3.0L
Product Specifications- Gasket Included: N
- Inlet Count: 1
- Inlet Type: STRAINER
- Item Grade: STANDARD REPLACEMENT
- Outlet Count: 1
- Outlet Size: 3/8"
- Outlet Type: QUICK CONNECT
- Package Contents: PUMP & KIT
- Package Quantity: 1
- UPC: 080044062653
- Part Description: 2010 Mercedes-Benz ML350 Fuel Sender And Hanger Assembly
Vehicle Fitment- 2010 Mercedes-Benz ML350 | All Trims | 6 Cyl 3.5L
Product Specifications- Notes: Color Green; Green
- Cam Type: Quick-On
- Cap Depth: 2.61"
- Color: Green
- Neck Diameter: 1.78"
- Shell Diameter: 2.91"
- UPC: 033342118782
- Venting: Pressure Vacuum
- Part Description: 2010 Mercedes-Benz ML350 Diesel Only Locking Fuel Cap
Vehicle Fitment- 2010 Mercedes-Benz ML350 | All Trims | 6 Cyl 3.0L
Product Specifications- Notes: Tan w/Grey Ring
- Cam Type: Quick-On
- Color: Tan with Gray Ring
- UPC: 033342039629
- Part Description: 2010 Mercedes-Benz ML350 Tan Fuel Cap Testing Adapter
Vehicle Fitment- 2010 Mercedes-Benz ML350 | All Trims | 6 Cyl 3.0L
Product Specifications- Notes: (w/Heater Port)
- Pallet Layer Quantity: 120
- UPC: 768370059058
- Part Description: 2010 Mercedes-Benz ML350 In-Line Fuel Filter
Vehicle Fitment- 2010 Mercedes-Benz ML350 | All Trims | 6 Cyl 3.0L
Product Specifications- Notes: Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
- Fuel Level Sender Assembly Included: Yes
- Fuel Type: Diesel
- Gasket or Seal Included: No
- In Tank or External: In Tank
- Item Grade: Standard Replacement
- Outlet Outside Diameter: 0.375
- Outlet Quantity: 2
- Outlet Type: Quick Connect
- Package Contents: Fuel Transfer Unit w/Float Arm, Instruction Sheet
- Regulator Included: No
- Resistance Ohms Empty: 111.0
- Resistance Ohms Full: 990.0
- Strainer Included: No
- UPC: 689604290965
- Vapor Pressure Sensor: No
- Part Description: 2010 Mercedes-Benz ML350 Left Fuel Tank Sending Unit
Vehicle Fitment- 2010 Mercedes-Benz ML350 | All Trims | 6 Cyl 3.0L
