Replacement Parts for 2010 Suzuki Grand Vitara Timing Belts, Chains, Cams & Related Parts

2010 Suzuki Grand Vitara Timing Belts, Chains, Cams & Related Parts

My Vehicle Change Vehicle
2010 Suzuki Grand Vitara
Change Vehicle
Vehicle Options
We need more information about your vehicle to make a correct determination of fitment
< Back to View All
Engine & Drivetrain

14 products about 2010 Suzuki Grand Vitara Timing Belts, Chains, Cams & Related Parts found

Show Item:
  • 30
  • 60
  • 90
Sort by:
Recommended
Filter
Sort
View by
  • Gates Drivealign OE Exact Automatic Belt Tensioner for 2010 Suzuki Grand Vitara - 38397

    Gates® Drivealign OE Exact Automatic Belt Tensioner for 2010 Suzuki Grand Vitara

    PartNumber: 38397
    Product Specifications
    • Bearing Bore Inside Diameter 1: 17 mm
    • Contact Surface: Smooth/Backside
    • Material: Steel
    • Number Of Pulleys: 1
    • OE Comparison Rating: OE Exact
    • Outside Diameter: 2.76"
    • Pulley 1 Flanged: No
    • UPC: 770075304418
    • Width: 31 mm
    • Part Description: 2010 Suzuki Grand Vitara Drivealign OE Exact Automatic Belt Tensioner
    More Info
    Vehicle Fitment
    • 2010 Suzuki Grand Vitara | All Trims | 6 Cyl 3.2L
    $83.61
  • Dayco PREMIUM OEM REPL BALANCER, POWERBOND for 2010 Suzuki Grand Vitara - PB1731N

    Dayco® PREMIUM OEM REPL BALANCER, POWERBOND for 2010 Suzuki Grand Vitara

    PartNumber: PB1731N
    Product Specifications
    • Bolt Hole Quantity: 2
    • Counterweight Balance: Neutral, no counterweight
    • Crank Bore: 1.103; 28.00
    • Crank Trigger/Exciter Plate: No
    • Hardware Included: No
    • Installation Instructions Included: No
    • Nose Outside Diameter: 1.615; 41.00
    • Number of Integrated Pulleys: 1
    • Outer Ring Material: Cast Iron
    • Overall Outside Diameter: 145.00; 5.709
    • Overall Width: 1.386; 35.20
    • Pulley 1 Number Of Grooves: 6
    • Pulley 1 Outside Diameter: 145.00; 5.709
    • Pulley 1 Type: Serpentine
    • Pulley 2 Type: Serpentine
    • Ring Width: 0.969; 24.60
    • Timing Marks: Yes
    • Woodruff Key Included: No
    • Part Description: 2010 Suzuki Grand Vitara PREMIUM OEM REPL BALANCER, POWERBOND
    More Info
    Vehicle Fitment
    • 2010 Suzuki Grand Vitara | All Trims | 4 Cyl 2.4L
    $180.96
  • Gates Lower Variable Valve Timing Solenoid for 2010 Suzuki Grand Vitara - VVS185

    Gates® Lower Variable Valve Timing Solenoid for 2010 Suzuki Grand Vitara

    PartNumber: VVS185
    Product Specifications
    • Activation Style: Electromagnetic
    • Connector Gender: Female
    • Connector Quantity: 1
    • Gasket/Seal Included: No
    • Height: 0.953"
    • Material: Steel
    • Mounting Bolt Included: No
    • Overall Length: 143
    • Overall Width: 0.953"
    • Shaft Diameter: 20
    • Terminal Gender: Male
    • Terminal Quantity: 2
    • Terminal Type: Blade
    • UPC: 770075706830
    • Voltage (VAC): 12
    • Part Description: 2010 Suzuki Grand Vitara Lower Variable Valve Timing Solenoid
    More Info
    Vehicle Fitment
    • 2010 Suzuki Grand Vitara | All Trims | 6 Cyl 3.2L
    $31.38
  • Four Seasons Drive Belt Idler Pulley for 2010 Suzuki Grand Vitara - 45936

    Four Seasons® Drive Belt Idler Pulley for 2010 Suzuki Grand Vitara

    PartNumber: 45936
    Product Specifications
    • Belt Type: Back Idler
    • Belt Width IN: 1.125
    • Belt Width MM: 28.575
    • Bore Dia. IN: .67
    • Color: Black
    • Groove Quantity: Smooth
    • I.D. MM: 17
    • Inside Diameter: .66
    • Material: Steel
    • Meets / Exceeds OEM: Yes
    • Mount Hole Qty: 1
    • Mounting Hardware: Not Included
    • O.D. MM: 82.550
    • Outside Diameter: 3.250
    • Pulley Type: Back Idler
    • Pulley Width IN: 1.130
    • Pulley Width MM: 28.7
    • Style: Idler / Tensioner Pulley
    • UPC: 096361030831
    • Width: 28.7
    • Part Description: 2010 Suzuki Grand Vitara Drive Belt Idler Pulley
    More Info
    Vehicle Fitment
    • 2010 Suzuki Grand Vitara | All Trims | 6 Cyl 3.2L
    $10.57
  • BANDO Rib Ace™ V-Ribbed Serpentine Belt for 2010 Suzuki Grand Vitara - 6PK2170

    BANDO® Rib Ace™ V-Ribbed Serpentine Belt for 2010 Suzuki Grand Vitara

    PartNumber: 6PK2170
    Product Specifications
    • Notes: OE: 17521-79K00
    • Effective Length: 2170 mm
    • Inch Number: 854K6
    • Rib Quantity: 6
    • Top Width: 0.84"
    • UPC: 649717015916
    • Part Description: 2010 Suzuki Grand Vitara Rib Ace™ V-Ribbed Serpentine Belt
    More Info
    Vehicle Fitment
    • 2010 Suzuki Grand Vitara | All Trims | 6 Cyl 3.2L
    $14.48
  • Gates Micro V V Ribbed Belt for 2010 Suzuki Grand Vitara - K060854

    Gates® Micro V V Ribbed Belt for 2010 Suzuki Grand Vitara

    PartNumber: K060854
    Product Specifications
    • OE Comparison Rating: OE Performance
    • Outside Circumference: 2182 mm
    • Rib Quantity: 6
    • Section: K
    • Top Width: 0.807"
    • UPC: 072053194838
    • Part Description: 2010 Suzuki Grand Vitara Micro V V Ribbed Belt
    More Info
    Vehicle Fitment
    • 2010 Suzuki Grand Vitara | All Trims | 6 Cyl 3.2L
    $36.22
  • Dayco Poly Rib Serpentine Belt for 2010 Suzuki Grand Vitara - 5060855

    Dayco® Poly Rib Serpentine Belt for 2010 Suzuki Grand Vitara

    PartNumber: 5060855
    Product Specifications
    • Color: Black
    • Cross Section: K-Section
    • Effective Length: 2171.70; 85.50
    • Material: EPDM, Aramid Reinforced
    • Maximum Operating Temperature: 100; 212
    • Minimum Operating Temperature: -42.7; -45
    • Outside Circumference: 2185.93; 86.06
    • Rib Depth: Standard
    • Rib Profile: W Profile
    • Rib Quantity: 6
    • Standards: SAE J1459, SAE J2432
    • Top Width: .82
    • UPC: 036687044075
    • Part Description: 2010 Suzuki Grand Vitara Poly Rib Serpentine Belt
    More Info
    Vehicle Fitment
    • 2010 Suzuki Grand Vitara | All Trims | 6 Cyl 3.2L
    $29.51
  • BANDO Rib Ace™ V-Ribbed Serpentine Belt for 2010 Suzuki Grand Vitara - 6PK2045

    BANDO® Rib Ace™ V-Ribbed Serpentine Belt for 2010 Suzuki Grand Vitara

    PartNumber: 6PK2045
    Product Specifications
    • Notes: OE: 17521-54L30
    • Effective Length: 80.5"
    • Inch Number: 805K6
    • Rib Quantity: 6
    • Top Width: 0.84"
    • UPC: 649717003173
    • Part Description: 2010 Suzuki Grand Vitara Rib Ace™ V-Ribbed Serpentine Belt
    More Info
    Vehicle Fitment
    • 2010 Suzuki Grand Vitara | All Trims | 4 Cyl 2.4L
    $10.92
  • Gates Micro V V Ribbed Belt for 2010 Suzuki Grand Vitara - K060806

    Gates® Micro V V Ribbed Belt for 2010 Suzuki Grand Vitara

    PartNumber: K060806
    Product Specifications
    • OE Comparison Rating: OE Performance
    • Outside Circumference: 2061 mm
    • Rib Quantity: 6
    • Section: K
    • Top Width: 20 mm
    • UPC: 072053193817
    • Part Description: 2010 Suzuki Grand Vitara Micro V V Ribbed Belt
    More Info
    Vehicle Fitment
    • 2010 Suzuki Grand Vitara | All Trims | 4 Cyl 2.4L
    $31.17
  • Dayco No Slack Light Duty Idler Tensioner Pulley for 2010 Suzuki Grand Vitara - 89133

    Dayco® No Slack Light Duty Idler Tensioner Pulley for 2010 Suzuki Grand Vitara

    PartNumber: 89133
    Product Specifications
    • Bearing Inner Diameter 1: 17
    • Bearing Width: 14
    • Belt Type: Serpentine
    • Flat: Y
    • Material: Polymer
    • Max Belt Width: 06 Rib
    • Number of Bearings: 1
    • Pulley Outside Diameter: 70
    • Pulley Width: 24.5
    • UPC: 036687558299
    • Part Description: 2010 Suzuki Grand Vitara No Slack Light Duty Idler Tensioner Pulley
    More Info
    Vehicle Fitment
    • 2010 Suzuki Grand Vitara | All Trims | 4 Cyl 2.4L
    $24.31
  • Gates Drivealign Lower Drive Belt Idler Pulley for 2010 Suzuki Grand Vitara - 36323

    Gates® Drivealign Lower Drive Belt Idler Pulley for 2010 Suzuki Grand Vitara

    PartNumber: 36323
    Product Specifications
    • Bearing Bore Inside Diameter 1: 17 mm
    • Contact Surface: Smooth/Backside
    • Material: Thermoplastic
    • Number of Grooves: 0
    • Number Of Pulleys: 1
    • Outside Diameter: 2.76"
    • Pulley 1 Flanged: No
    • UPC: 770075441625
    • Width: 24.5 mm
    • Part Description: 2010 Suzuki Grand Vitara Drivealign Lower Drive Belt Idler Pulley
    More Info
    Vehicle Fitment
    • 2010 Suzuki Grand Vitara | All Trims | 4 Cyl 2.4L
    $20.33

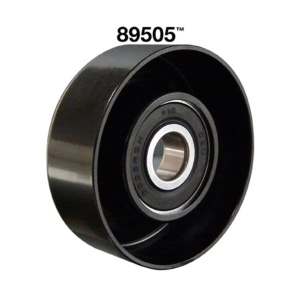

  • Dayco No Slack Light Duty Idler Tensioner Pulley for 2010 Suzuki Grand Vitara - 89505

    Dayco® No Slack Light Duty Idler Tensioner Pulley for 2010 Suzuki Grand Vitara

    PartNumber: 89505
    Product Specifications
    • Bearing Inner Diameter 1: 17
    • Bearing Width: 14
    • Belt Type: Serpentine
    • Flat: Y
    • Material: Steel
    • Max Belt Width: 06 Rib
    • Number of Bearings: 1
    • Pulley Outside Diameter: 82.5
    • Pulley Width: 29
    • UPC: 036687767370
    • Part Description: 2010 Suzuki Grand Vitara No Slack Light Duty Idler Tensioner Pulley
    More Info
    Vehicle Fitment
    • 2010 Suzuki Grand Vitara | All Trims | 6 Cyl 3.2L
    $24.53
  • Dayco Poly Rib Serpentine Belt for 2010 Suzuki Grand Vitara - 5060805

    Dayco® Poly Rib Serpentine Belt for 2010 Suzuki Grand Vitara

    PartNumber: 5060805
    Product Specifications
    • Color: Black
    • Cross Section: K-Section
    • Effective Length: 2044.96; 80.51
    • Material: EPDM, Aramid Reinforced
    • Maximum Operating Temperature: 100; 212
    • Minimum Operating Temperature: -42.7; -45
    • Outside Circumference: 2061.72; 81.17
    • Rib Depth: Standard
    • Rib Profile: W Profile
    • Rib Quantity: 6
    • Standards: SAE J1459, SAE J2432
    • Top Width: .82
    • UPC: 038244123131
    • Part Description: 2010 Suzuki Grand Vitara Poly Rib Serpentine Belt
    More Info
    Vehicle Fitment
    • 2010 Suzuki Grand Vitara | All Trims | 4 Cyl 2.4L
    $22.51
  • Dayco No Slack Automatic Belt Tensioner Assembly for 2010 Suzuki Grand Vitara - 89389

    Dayco® No Slack Automatic Belt Tensioner Assembly for 2010 Suzuki Grand Vitara

    PartNumber: 89389
    Product Specifications
    • Belt Type: Serpentine
    • Direction: Counter Clock Wise
    • Number Of Pulleys: 1
    • Pulley 1 Diameter: 70
    • Pulley 1 Flat: Y
    • Pulley 1 Width: 27
    • UPC: 036687704528
    • Part Description: 2010 Suzuki Grand Vitara No Slack Automatic Belt Tensioner Assembly
    More Info
    Vehicle Fitment
    • 2010 Suzuki Grand Vitara | All Trims | 6 Cyl 3.2L
