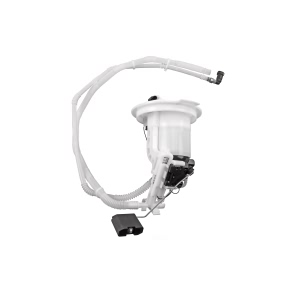

Delphi® Passenger Side Primary Fuel Pump Module Assembly for 2011 Mercedes-Benz E350
PartNumber: FG1164$386.68Product Specifications- Notes: Primary Fuel Tank;Except Partial Zero Emissions Vehicle;Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
- Current Draw: 9
- Flow Rating: 21 gph
- Fuel Level Sender Assembly Included: Yes
- Fuel Type: Gas
- Gasket or Seal Included: No
- In Tank or External: In Tank
- Inlet Type: Strainer
- Internal or External Strainer: Internal
- Item Grade: Standard Replacement
- Maximum Pressure: 80.0 PSI
- Outlet Outside Diameter: 0.313''
- Outlet Quantity: 1
- Outlet Type: Quick Connect
- Pump Type: Electric
- Regulator Included: No
- Resistance Ohms Empty: 990.0
- Resistance Ohms Full: 50.0
- Strainer Included: Yes
- System Pressure: 58 psi
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: Blade
- UPC: 689604231401
- Vapor Pressure Sensor: No
- Voltage: 12.0 VDC
- Part Description: 2011 Mercedes-Benz E350 Passenger Side Primary Fuel Pump Module Assembly
Vehicle Fitment- 2011 Mercedes-Benz E350 | All Trims | 6 Cyl 3.5L
Product Specifications- Cam Type: Shallow Cam
- Cap Depth: 1.89"
- Locking: No
- Neck Diameter: 1.49"
- Shell Diameter: 2.92"
- Type: OE Equivalent Fuel Cap
- UPC: 770075156406
- Venting: Vacuum Only
- Part Description: 2011 Mercedes-Benz E350 Replacement Non Locking Fuel Tank Cap
Vehicle Fitment- 2011 Mercedes-Benz E350 | All Trims | 6 Cyl 3.5L
Product Specifications- Notes: For Vehicles with Detachable Filter Heater and Water Sensor
- Class: D
- Duty Type: LD
- Height: 4.523''
- Inlet: .400''
- Inner Diameter Top: Closed
- MediaType: Cellulose
- Micron: 5.00 Micron
- Outer Diameter Top: 3.622''
- Outlet: 5/16''
- Style: Fuel (Complete In-Line) Filter
- UPC: 765809332508
- Part Description: 2011 Mercedes-Benz E350 Complete In Line Fuel Filter
Vehicle Fitment- 2011 Mercedes-Benz E350 | All Trims | 6 Cyl 3.0L
Product Specifications- Inside Diameter: 5 9/32"
- Material: Polymer
- Outside Diameter: 5 23/32"
- UPC: 671607120691
- Part Description: 2011 Mercedes-Benz E350 Fuel Tank Lock Ring
Vehicle Fitment- 2011 Mercedes-Benz E350 | All Trims | 6 Cyl 3.0L
- 2011 Mercedes-Benz E350 | All Trims | 6 Cyl 3.5L
Product Specifications- Notes: Grade: Aftermarket; Location-Eng Bay;Grade: Aftermarket
- Number of Poles: 2
- Operating Mode: Electric
- Packaging Depth [cm]: 9
- Packaging height [cm]: 9,2
- Packaging width [cm]: 4,9
- Valve type: Solenoid Valve
- Weight [kg]: 0,095

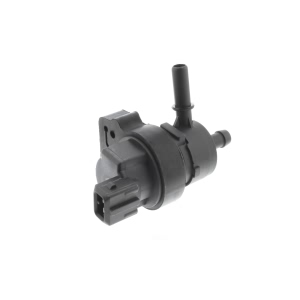

- Part Description: 2011 Mercedes-Benz E350 Fuel Tank Vent Valve
Vehicle Fitment- 2011 Mercedes-Benz E350 | All Trims | 6 Cyl 3.5L
Product Specifications- Notes: Grade: Aftermarket; Description: Injection System
- Height: 1.56 mm
- Part Description: 2011 Mercedes-Benz E350 Fuel Injector Seal
Vehicle Fitment- 2011 Mercedes-Benz E350 | Bluetec | All Engines
Product Specifications- Notes: Incls Connector For Heating Element; Maximum Pressure (metric): 6 Bar; Electrical Connector: 5-pin
- Electrical Connector: 5-Pin
- Maximum Pressure: 6 Bar
- Part Description: 2011 Mercedes-Benz E350 In-Line Fuel Filter
Vehicle Fitment- 2011 Mercedes-Benz E350 | All Trims | 6 Cyl 3.0L
Product Specifications- Notes: Partial Zero Emissions Vehicle;Primary Fuel Tank;Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
- Current Draw: 9
- Flow Rating: 21 gph
- Fuel Type: Gas
- Gasket or Seal Included: No
- In Tank or External: In Tank
- Inlet Type: Strainer
- Internal or External Strainer: External
- Item Grade: Standard Replacement
- Maximum Pressure: 94.0 PSI
- Outlet Outside Diameter: 0.313''
- Outlet Type: Hose
- Pump Type: Electric
- Strainer Included: Yes
- System Pressure: 58 psi
- Terminal Gender: Male
- Terminal Quantity: 2
- Terminal Type: Blade
- UPC: 689604271773
- Voltage: 12.0 VDC
- Wiring Harness Included: No
- Part Description: 2011 Mercedes-Benz E350 Primary Fuel Pump And Strainer Set
Vehicle Fitment- 2011 Mercedes-Benz E350 | All Trims | 6 Cyl 3.5L
Product Specifications- Notes: Filter has a sensor port - remove sensor from the old filter and reinstall on the new filter
- Class: HB
- Duty Type: HD
- FlowRate: 1 GPM GPM
- Height: 5.026''
- Inlet: .400''
- Inner Diameter Top: Closed
- MediaType: Cellulose
- Micron: 5.00 Micron
- OE Part Number: 6460920701
- Outer Diameter Top: 3.594''
- Outlet: 5/16''
- Style: Fuel (Complete In-Line) Filter
- UPC: 765809339347
- Part Description: 2011 Mercedes-Benz E350 Complete In Line Fuel Filter
Vehicle Fitment- 2011 Mercedes-Benz E350 | All Trims | 6 Cyl 3.0L
Product Specifications- Notes: Incls Connector For Heating Element (180 W); Biodiesel Resistant
- Remanufactured: N
- Part Description: 2011 Mercedes-Benz E350 In-Line Fuel Filter
Vehicle Fitment- 2011 Mercedes-Benz E350 | All Trims | 6 Cyl 3.0L
Product Specifications- Notes: For Vehicles with Detachable Filter Heater
- Class: W
- Duty Type: LD
- Height: 4.687''
- Inlet: 3/8''
- Inner Diameter Top: Closed
- MediaType: Cellulose
- Micron: 0.00 Micron
- Outer Diameter Top: 3.562''
- Outlet: 5/16''
- Style: Fuel (Complete In-Line) Filter
- UPC: 765809332515
- Part Description: 2011 Mercedes-Benz E350 Complete In Line Fuel Filter
Vehicle Fitment- 2011 Mercedes-Benz E350 | All Trims | 6 Cyl 3.0L
Product Specifications- Notes: Pink
- Adapter Type: Fuel Cap Tester Adapter
- Cam Type: Quick-On
- Color: Pink
- Neck Diameter (in): 1.97
- UPC: 770075743262
- Part Description: 2011 Mercedes-Benz E350 Fuel Cap Tester Adapter
Vehicle Fitment- 2011 Mercedes-Benz E350 | All Trims | 6 Cyl 3.5L
Product Specifications- Notes: Right Side, w/PZEV Spec., Partial Zero Emission Vehicle; Strainer included w/pump.
- Gasket Included: N
- Inlet Count: 1
- Inlet Type: STRAINER
- Item Grade: STANDARD REPLACEMENT
- Maximum Free Flow Rate (gph): 90
- Maximum Pressure Rate (psi): 130
- Minimum Free Flow Rate (gph): 80
- Minimum Pressure Rate (psi): 120
- Outlet Count: 1
- Outlet Size: 5/16"
- Outlet Type: QUICK CONNECT
- Package Contents: PUMP & KIT
- Package Quantity: 1
- UPC: 080044044284

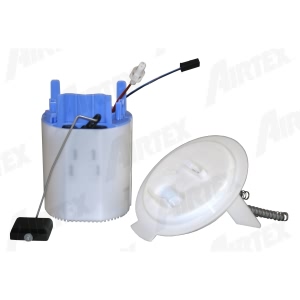

- Part Description: 2011 Mercedes-Benz E350 In-Tank Fuel Pump And Strainer Set
Vehicle Fitment- 2011 Mercedes-Benz E350 | 4Matic | 6 Cyl 3.5L
- 2011 Mercedes-Benz E350 | Base | 6 Cyl 3.5L
Product Specifications- Notes: w/PZEV (Partial-Zero Emissions Vehicle)
- Cup Type: Quick-On
- Diameter: 1-1/4
- Fuel Type: Gas
- Length: 34
- UPC: 671607020731
- Vent 1: 7/8Vent Quantity

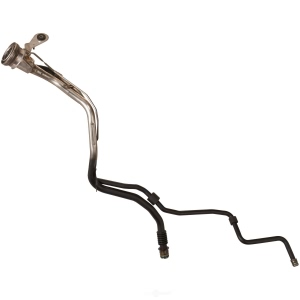

- Part Description: 2011 Mercedes-Benz E350 Fuel Filler Neck
Vehicle Fitment- 2011 Mercedes-Benz E350 | All Trims | All Engines
Product Specifications- Pallet Layer Quantity: 120
- UPC: 768370059058
- Part Description: 2011 Mercedes-Benz E350 In-Line Fuel Filter
Vehicle Fitment- 2011 Mercedes-Benz E350 | All Trims | 6 Cyl 3.0L
Product Specifications- Gasket or Seal Included: No
- Inlet Count: 1
- Inlet Type: STRAINER
- Internal or External: Internal
- Item Grade: STANDARD REPLACEMENT
- Maximum Free Flow Rate (gph): 85
- Maximum Pressure (psi): 125
- Minimum Free Flow Rate (gph): 75
- Minimum Pressure (psi): 55.0
- Outlet Type: NO EXTERNAL FITTINGS
- Package Contents: PUMP & KIT
- Package Quantity: 1
- Pump Type: Electrical
- UPC: 080044056935
- Voltage [V]: 12V
- Wiring Harness Included: No

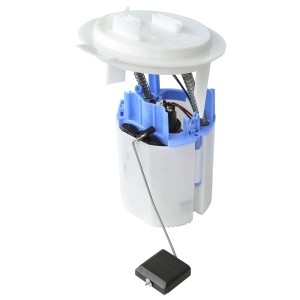

- Part Description: 2011 Mercedes-Benz E350 Fuel Pump Module Assembly
Vehicle Fitment- 2011 Mercedes-Benz E350 | All Trims | 6 Cyl 3.5L
Product Specifications- Notes: Grade: OE; Exc PZEV Spec; In Tank Assy
- Height [mm]: 230
- Length [mm]: 198
- Operating Mode: Electric
- Voltage [V]: 12
- Weight [kg]: 0.828
- Width [mm]: 275
- Part Description: 2011 Mercedes-Benz E350 Fuel Feed Unit
Vehicle Fitment- 2011 Mercedes-Benz E350 | 4Matic | 6 Cyl 3.5L
- 2011 Mercedes-Benz E350 | Base | 6 Cyl 3.5L
