2012 Mazda 5 A/C & Heating
My Vehicle Change Vehicle
2012 Mazda 5
$90.54Product Specifications- Notes: Electronic Control; w/Auto AC; w/Rear Ventilator
- Gasket or Seal Included: No
- Mounting Hardware Included: No
- OE Part Number: CE4961B15
- Package Contents: Blower Motor Resistor, Harness and 3 Butt Connectors
- Package Quantity: 1
- Packaging Type: Box
- Terminal Type: Blade
- UPC: 037495538718
- Part Description: 2012 Mazda 5 Hvac Blower Motor Resistor Kit
Vehicle Fitment- 2012 Mazda 5 | All Trims | All Engines
Denso® Cabin Air Filter for 2012 Mazda 5
PartNumber: 453-4016$18.45Product Specifications- Notes: OE Recommended Replacement filter; Premium electrostatically charged media; Captures ultra-fine particulates such as diesel carbon & smoke
- Filter Type: Electrostatic
- Length: 9.3"
- UPC: 042511195912
- Width: 7.84"
- Part Description: 2012 Mazda 5 Cabin Air Filter
Vehicle Fitment- 2012 Mazda 5 | All Trims | 4 Cyl 2.5L
$310.75Product Specifications- Notes: w/ HS18 Compressor; New w/ Clutch
- Clutch Included: Yes
- Clutch Maximum Diameter: 5.265625
- Coil Clock Position: Wire Lead
- Coil Voltage: 12
- Compatible Refrigerant Oil Type: PAG 46
- Compressor Type: HS18
- Discharge Port Type: O-Ring
- Distance From Clutch To Mounting Flange: 2.53125
- Mount Distance MM: 64.262
- Mounting Hardware: Not Included
- Mounting Type: Tangent Mount
- New or Reman: New
- O-Ring A Number/Desc: [24681] / Green O-Ring
- O-Ring A Quantity: 1
- O-Ring B Number/Desc: [24661] / Green O-Ring
- O-Ring B Quantity: 1
- Pulley Belt Type: Serpentine
- Pulley Diameter MM: 133.604
- Pulley Groove Quantity: 6
- Pulley Lip Diameter: 5.265625
- Pulley Outside Diameter: 5.265625
- Pulley Ridge Diameter: 5.265625
- Refrigerant Type: R134a
- Suction Port Type: O-Ring
- Terminal Type: Pin
- UPC: 096361981225
- Part Description: 2012 Mazda 5 A C Compressor With Clutch
Vehicle Fitment- 2012 Mazda 5 | All Trims | All Engines
$17.78Product Specifications- Color: Black
- Contains Heat Shield: N
- Contains Protective Sleeve: N
- End 1 Inside Diameter: 5/8
- End 2 Inside Diameter: 5/8
- Hose Type: Single I.D. Hose
- Material: EPDM
- SAE Specification: SAE J20R3 Class D-1, SAE J1684 Type EC
- Trunk Height: 14 1/2
- UPC: 036687663504
- Part Description: 2012 Mazda 5 Small Id Hvac Heater Hose
Vehicle Fitment- 2012 Mazda 5 | All Trims | 4 Cyl 2.5L
- 2012 Mazda 5 | All Trims | All Engines
WIX® Cabin Air Filter for 2012 Mazda 5
PartNumber: 24482$24.11Product Specifications- Notes: Original Equipment Part Number CC29-61J6X
- Filter Type: Particulate
- Height: 0.866" (22mm)
- Length: 9.291" (236mm)
- OE Part Number: BP4K61J6X, BP8P61J6X, CC2961J6X, BBM461J6X, CE4961J6X, BP4K61J6X9A, BP4K61J6XA9A, BP8P61J6XA9A, CC6461J6X, BP4K61J6XA
- UPC: 765809244825
- Width: 3.976" (101mm)
- Part Description: 2012 Mazda 5 Cabin Air Filter
Vehicle Fitment- 2012 Mazda 5 | All Trims | 4 Cyl 2.5L
$134.97Product Specifications- Notes: w/ ATC
- Connector Gender: Female
- Connector Shape: Rectangle
- Number of Terminals: 3
- Speed: Variable
- UPC: 096361029927

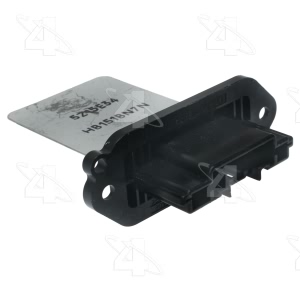

- Part Description: 2012 Mazda 5 Hvac Blower Motor Resistor Block
Vehicle Fitment- 2012 Mazda 5 | All Trims | All Engines
$47.12Product Specifications- Notes: w/ Wheel
- Cage Wheel Included: w/ Wheel
- Connector Gender: Female
- Connector qty: 1
- Flanged End: Yes
- Material: Plastic
- Motor Dia. MM: 92.000
- Motor Diameter: 3.000
- Motor Length: 3.625
- Motor Length MM: 76.000
- Mount Type: OE Mount
- New or Reman: New
- Number of Terminals: 2
- O.E. Replacement: Yes
- Rotation: CW
- Shaft Diameter: 0.3125
- Shaft Length: 1.875
- Shaft Length MM: 48.000
- Style: Flanged
- Terminal Type: 2 Lead Wires w/ Connector
- Tube: No
- UPC: 096361769748
- Vented: Vented
- Voltage: 12
- Wheel Dia. IN: 5.875
- Wheel Height IN: 2.750

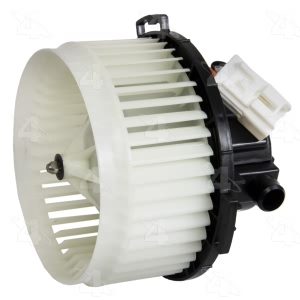

- Part Description: 2012 Mazda 5 Hvac Blower Motor With Wheel
Vehicle Fitment- 2012 Mazda 5 | All Trims | All Engines
$50.02Product Specifications- Comp Open/Closed: Variable
- Connector Gender: Male
- Connector Pin Qty: 3
- Connector Shape: Oval; Rectangle
- Connector Type: Pin
- Fitting Gender: Male
- Fitting Thread: 3/8 in. x 24
- Fitting Thread Size: 3/8 in. x 24
- Item Included A Desc: 24606
- Item Included A Qty.: 1
- Meets / Exceeds OEM: YES
- Mnt Sys Loc: System Mounted
- Number of Terminals: 3
- UPC: 096361209947
- Part Description: 2012 Mazda 5 Hvac System Switch
Vehicle Fitment- 2012 Mazda 5 | All Trims | All Engines
$36.01Product Specifications- Notes: Blower Motor Relay Connector
- Connector Pin Qty: 4
- Connector Shape: Other design
- Gender: Female
- Style: Harness Connector
- Terminal Gender: Female
- Terminal Quantity: 4
- UPC: 096361098336
- Wire Length IN: 6.000

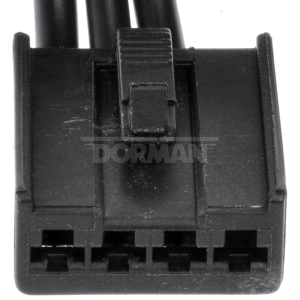

- Part Description: 2012 Mazda 5 A C Clutch Control Relay Harness Connector
Vehicle Fitment- 2012 Mazda 5 | All Trims | All Engines
$35.84Product Specifications- Connector Shape: Oval
- Gender: Male
- Style: Harness Connector
- Terminal Gender: Female
- Terminal Quantity: 2
- UPC: 096361010871
- Part Description: 2012 Mazda 5 Harness Connector
Vehicle Fitment- 2012 Mazda 5 | All Trims | All Engines
$26.17Product Specifications- Notes: w/o ATC
- Connector Gender: Female
- Connector Shape: Rectangle
- Number of Terminals: 5
- Speed: Fixed # 3
- UPC: 096361029262
- Part Description: 2012 Mazda 5 Hvac Blower Motor Resistor Block
Vehicle Fitment- 2012 Mazda 5 | All Trims | All Engines
$22.75Product Specifications- Body Diameter: 1.375
- Body Length: 11.000
- Connector B Type: Pad Mount
- Connector Type: Pad Mount
- Desiccant: Yes
- Desiccant Replaceable: Not Replaceable
- Dia. MM: 34.925
- Gasket / Seals: Included
- In Line Filter Material: Desiccant
- In Line Filter Outlet Fitting Type: Pad Mount
- Inlet Filter Fitting Type: Pad Mount
- Inlet Fitting Diameter: .482
- Inlet Fraction: 1/2
- Length MM: 279.400
- Material: Aluminum
- Meets / Exceeds OEM: Yes
- Mounting Bracket Included: Hardware not included
- O-Ring A Number/Desc: [24646] / Green Round O/Ring
- Outlet Fitting Type: Pad Mount
- Outlet Fraction: 1/2
- Outlet IN: .482
- Overall Depth IN: 11.000
- Overall Depth MM: 279.400
- Pad Mount: w/ Pad Mount
- Service Port: w/o Service Port
- Sight Glass: No
- Style: Aluminum Filter Drier w/ Pad Mount
- Switch Port: w/o Switch Port
- UPC: 096361831728
- Part Description: 2012 Mazda 5 Aluminum Filter Drier w/ Pad Mount
Vehicle Fitment- 2012 Mazda 5 | All Trims | All Engines
$19.50Product Specifications- Color: Aluminum
- Liquid Inlet Fitting Gender: Female
- Liquid Inlet Fitting Thread Diameter: No. 6
- Liquid Inlet Style: Female Insert O-Ring
- Liquid Inlet Type: O-Ring
- Liquid Outlet Fitting Gender: Female
- Liquid Outlet Fitting Thread Diameter: No. 10
- Liquid Outlet Style: Female Insert O-Ring
- Liquid Outlet Type: O-Ring
- Material: Aluminum
- Meets / Exceeds OEM: Yes
- Mounting Hole Quantity: 2
- O-Ring A Number/Desc: [24607] / Green O-Ring
- O-Ring A Quantity: 1
- O-Ring B Number/Desc: [24610] / Green O-Ring
- O-Ring B Quantity: 3
- Refrigerant Type: R134A
- Style: w/o Solenoid
- Suction Inlet Fitting Gender: Female
- Suction Inlet Fitting Thread Diameter: No. 10
- Suction Inlet Style: Female Insert O-Ring
- Suction Inlet Type: O-Ring
- Suction Outlet Fitting Gender: Female
- Suction Outlet Fitting Thread Diameter: No. 10
- Suction Outlet Style: Female Insert O-Ring
- Suction Outlet Type: O-Ring
- Super Heat: -1.500
- Switch Included: Not Included
- Tonnage: 1.5
- UPC: 096361394469

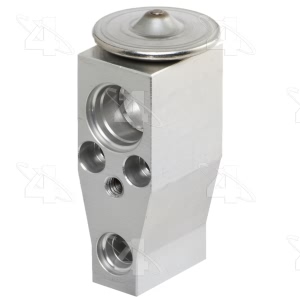

- Part Description: 2012 Mazda 5 A C Expansion Valve
Vehicle Fitment- 2012 Mazda 5 | All Trims | All Engines
$12.94Product Specifications- Notes: Caps and Valve Core Seal Kit
- Cap Color: Red, Blue
- Cap Inside Diameter: Specific
- Cap Material: Plastic
- Material: Aluminum
- Refrigerant Type: R12, R134a
- Style: Cap & Valve Kit
- UPC: 096361267831
- Valve Core Material: Specific
- Part Description: 2012 Mazda 5 A C System Valve Core And Cap Kit
Vehicle Fitment- 2012 Mazda 5 | All Trims | All Engines
$10.88Product Specifications- Notes: O-Ring and Gasket Seal Kit
- Material: Green Rubber O-Rings
- Style: O-Ring & Gasket Kit
- UPC: 096361267565
- Part Description: 2012 Mazda 5 A C System O Ring And Gasket Kit
Vehicle Fitment- 2012 Mazda 5 | All Trims | All Engines
$202.86Product Specifications- Notes: w/ HS18 Compressor; Reman w/ Clutch
- Clutch Included: Yes
- Clutch Maximum Diameter: 5.265625
- Coil Clock Position: Wire Lead
- Coil Voltage: 12
- Compatible Refrigerant Oil Type: PAG 46
- Compressor Type: HCC-HS18N
- Discharge Port Type: O-Ring
- Distance From Clutch To Mounting Flange: 2.53125
- Mount Distance MM: 64.262
- Mounting Hardware: Not Included
- Mounting Type: Tangent Mount
- New or Reman: Remanufactured
- O-Ring A Number/Desc: [24681] / Green O-Ring
- O-Ring A Quantity: 1
- O-Ring B Number/Desc: [24661] / Green O-Ring
- O-Ring B Quantity: 1
- Pulley Belt Type: Serpentine
- Pulley Diameter MM: 133.604
- Pulley Groove Quantity: 6
- Pulley Lip Diameter: 5.265625
- Pulley Outside Diameter: 5.265625
- Pulley Ridge Diameter: 5.265625
- Refrigerant Type: R134a
- Suction Port Type: O-Ring
- Terminal Type: Pin
- UPC: 096361971226
- Part Description: 2012 Mazda 5 Remanufactured A C Compressor With Clutch
Vehicle Fitment- 2012 Mazda 5 | All Trims | All Engines
Product Specifications- UPC: 671607231991
- Part Description: 2012 Mazda 5 A/C Accumulator
Vehicle Fitment- 2012 Mazda 5 | All Trims | 4 Cyl 2.5L
Product Specifications- Pallet Layer Quantity: 90
- Part Description: 2012 Mazda 5 Cabin Air Filter
Vehicle Fitment- 2012 Mazda 5 | All Trims | 4 Cyl 2.5L
Denso® A/C Compressor for 2012 Mazda 5
PartNumber: 471-6075Product Specifications- Notes: OE Recommended Replacement part. OE-specified Oil Incld.
- Clutch Maximum Diameter: 134.0 mm
- Compressor Mount Hole Quantity: 4
- Mounting Type: Bolt Tangent
- OE Part Number: BBN261450D
- Refrigerant Type: R134A
- UPC: 042511234437
- Part Description: 2012 Mazda 5 A/C Compressor
Vehicle Fitment- 2012 Mazda 5 | All Trims | 4 Cyl 2.5L
Denso® A/C Condenser for 2012 Mazda 5
PartNumber: 477-0759Product Specifications- Includes Drier: Yes
- Mounting Hardware Included: No
- UPC: 042511207608
- Part Description: 2012 Mazda 5 A/C Condenser
Vehicle Fitment- 2012 Mazda 5 | All Trims | 4 Cyl 2.5L
Product Specifications- Notes: OE recommended replacement part.
- Body Diameter (mm): 34.925
- Body Length (mm): 279.400
- Inlet Fitting Type: FEMALE
- Material: Aluminum
- OE Part Number: GJ6A61501A
- Outlet Fitting Type: FEMALE
- Type: Block Union
- UPC: 042511222281
- Part Description: 2012 Mazda 5 A/C Receiver Drier
Vehicle Fitment- 2012 Mazda 5 | All Trims | 4 Cyl 2.5L
CSF® A/C Condenser for 2012 Mazda 5
PartNumber: 10867Product Specifications- Box Height (in): 21 2/3
- Box Length (in): 37 3/5
- Box Weight (lbs): 11 2/7
- Box Width (in): 9 4/9
- Construction: Parallel Flow
- Core Length: 23 3/4
- Core Thickness: 5/8
- Core Width: 15 1/2
- Hazardous Material: No
- Inlet Tube: Block Fitting
- Outlet Tube: Block Fitting
- Part Description: 2012 Mazda 5 A/C Condenser
Vehicle Fitment- 2012 Mazda 5 | All Trims | 4 Cyl 2.5L
