Product Specifications- Notes: Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
- Current Draw: 10
- Fuel Level Sender Assembly Included: Yes
- Fuel Type: Gas
- Gasket or Seal Included: No
- In Tank or External: In Tank
- Inlet Type: Strainer
- Internal or External Strainer: Internal
- Item Grade: Standard Replacement
- Maximum Pressure: 102.0 PSI
- Outlet Outside Diameter: 0.313''
- Outlet Quantity: 1
- Outlet Type: Quick Connect
- Pump Type: Electric
- Regulator Included: Yes
- Resistance Ohms Empty: 326.0
- Resistance Ohms Full: 10.0
- Strainer Included: Yes
- System Pressure: 55 psi
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: Blade
- UPC: 689604272091
- Vapor Pressure Sensor: No
- Voltage: 12.0 VDC

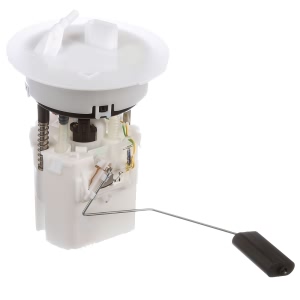

- Part Description: 2014 Mazda 2 Fuel Pump Module Assembly
Vehicle Fitment- 2014 Mazda 2 | All Trims | 4 Cyl 1.5L
Product Specifications- Cam Type: Threaded
- Cap Depth: 2.48"
- Locking: Yes
- Neck Diameter: 1.77"
- Shell Diameter: 2.91"
- Type: Regular Fuel Cap
- UPC: 072053446722
- Venting: Emission Control
- Part Description: 2014 Mazda 2 Locking Fuel Tank Cap
Vehicle Fitment- 2014 Mazda 2 | All Trims | 4 Cyl 1.5L
Product Specifications- Inside Diameter: 6.2
- Material: Plastic / Polymer
- Outside Diameter: 6.6
- UPC: 671607120677

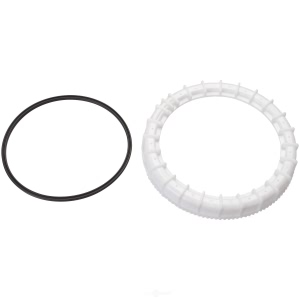

- Part Description: 2014 Mazda 2 Fuel Tank Lock Ring
Vehicle Fitment- 2014 Mazda 2 | All Trims | 4 Cyl 1.5L
Product Specifications- Notes: Old Design
- Complete: Y
- Contains Applications: Y
- EGR Gasket Included: Black
- Fuel Injection Type: 0.315
- Material: Molded Rubber
- Outside Diameter: 0.473
- Release Wave: 12/15/2017
- Rim Shape: Round
- Thickness: 0.079
- UPC: 023913752125
- Part Description: 2014 Mazda 2 Fuel Injector O Ring Kit
Vehicle Fitment- 2014 Mazda 2 | All Trims | All Engines
Product Specifications- Cam Type: Threaded
- Cap Depth: 1.78"
- Locking: No
- Neck Diameter: 1.77"
- Shell Diameter: 2.61"
- Type: OE Equivalent Fuel Cap
- UPC: 072053408027
- Venting: Emission Control
- Part Description: 2014 Mazda 2 Replacement Non Locking Fuel Tank Cap
Vehicle Fitment- 2014 Mazda 2 | All Trims | 4 Cyl 1.5L
Product Specifications- Notes: Includes Fuel Pump, Fuel Pressure Reg, Sending Unit, Float, Fuel Reservoir & Fuel Strainer
- Gasket Included: N
- Inlet Count: 1
- Inlet Type: STRAINER
- Item Grade: STANDARD REPLACEMENT
- Maximum Free Flow Rate (gph): 45
- Maximum Pressure Rate (psi): 55
- Minimum Free Flow Rate (gph): 35
- Minimum Pressure Rate (psi): 45
- Outlet Count: 1
- Outlet Size: 5/16"
- Outlet Type: QUICK CONNECT
- Package Contents: PUMP & KIT
- Package Quantity: 1
- UPC: 080044063452

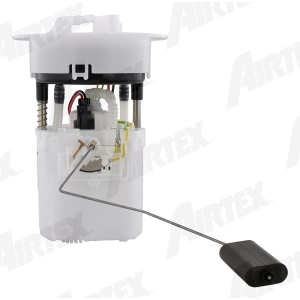

- Part Description: 2014 Mazda 2 Fuel Pump Module Assembly
Vehicle Fitment- 2014 Mazda 2 | All Trims | 4 Cyl 1.5L
Product Specifications- Notes: Color Black; Part Attributes W/ Threaded Filler Neck; Part Replacement Replaces 48349
- Cam Type: Threaded
- Cap Depth: 2.48"
- Neck Diameter: 1.77"
- Shell Diameter: 2.91"
- UPC: 033342062283
- Venting: Emission Control
- Part Description: 2014 Mazda 2 Fuel Tank Cap
Vehicle Fitment- 2014 Mazda 2 | All Trims | 4 Cyl 1.5L
Product Specifications- Gasket Included: N
- Item Grade: STANDARD REPLACEMENT
- Package Contents: TANK SEAL
- Package Quantity: 1
- UPC: 080044062998

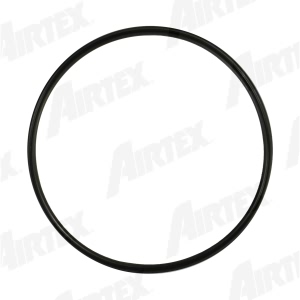

- Part Description: 2014 Mazda 2 Fuel Pump Tank Seal
Vehicle Fitment- 2014 Mazda 2 | All Trims | 4 Cyl 1.5L
Product Specifications- Internet Product Code (IPC): BAE0B3BFE46
- Item has MSDS (SDS): N
- MFG Brand Name: Spectra Premium Industries
- MFG Model # (Series): 00671607135923
- MFG Name: Spectra Premium Industries
- Package Contents: Two Fuel Tank Straps
- Strap 1 Length: 26.25
- Strap 1 Width: 1.563
- Strap 2 Length: 32.75
- Strap 2 Width: 1.563
- Strap Material: Plastic
- Supplier Company Name: Spectra Premium Industries
- UPC: 671607135923
- Part Description: 2014 Mazda 2 Fuel Tank Strap
Vehicle Fitment- 2014 Mazda 2 | All Trims | 4 Cyl 1.5L
Product Specifications- Notes: Color Black; Part Attributes W/ Threaded Filler Neck; Part Replacement Replaces 48349
- Cam Type: Threaded
- Cap Depth: 1.78"
- Neck Diameter: 1.77"
- Shell Diameter: 2.61"
- UPC: 033342062191
- Venting: Emission Control
- Part Description: 2014 Mazda 2 Fuel Tank Cap
Vehicle Fitment- 2014 Mazda 2 | All Trims | 4 Cyl 1.5L
Product Specifications- Notes: Color Black; Part Attributes W/ Threaded Filler Neck
- Cap Depth: 2.500
- Color: Black
- Fuel Cap Venting: Emission Control
- Locking: Yes
- Material: Plastic
- Neck Diameter: 1.750
- Shell Diameter: 2.938
- Tether Included: No
- UPC: 333420090048
- Part Description: 2014 Mazda 2 Regular Keyed Alike Fuel Cap
Vehicle Fitment- 2014 Mazda 2 | All Trims | 4 Cyl 1.5L
