Product Specifications- Cam Type: Threaded
- Cap Depth: 1.78"
- Locking: No
- Neck Diameter: 1.77"
- Shell Diameter: 2.61"
- Type: OE Equivalent Fuel Cap
- UPC: 072053408027
- Venting: Emission Control
- Part Description: 2014 Volvo S60 Replacement Non Locking Fuel Tank Cap
Vehicle Fitment- 2014 Volvo S60 | All Trims | 5 Cyl 2.5L
Product Specifications- Notes: Original Equipment Part Number 31261059
- Class: W
- Duty Type: LD
- Height: 7.165''
- Inlet: 8 MM
- Inner Diameter Top: Closed
- Micron: 0.00 Micron
- OE Part Number: 31261059
- Outer Diameter Top: 2.165''
- Outlet: 8 MM
- Style: Fuel (Complete In-Line) Filter
- UPC: 765809260948

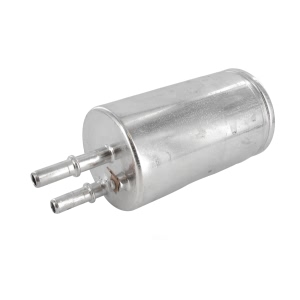

- Part Description: 2014 Volvo S60 Complete In Line Fuel Filter
Vehicle Fitment- 2014 Volvo S60 | T5 | 5 Cyl 2.5L
Product Specifications- Part Description: 2014 Volvo S60 In-Line Fuel Filter
Vehicle Fitment- 2014 Volvo S60 | All Trims | 6 Cyl 3.0L
- 2014 Volvo S60 | All Trims | 5 Cyl 2.5L
Product Specifications- Notes: Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
- Flow Rating: 38 gph
- Fuel Level Sender Assembly Included: Yes
- Fuel Type: Gas
- Gasket or Seal Included: No
- In Tank or External: In Tank
- Inlet Type: Strainer
- Internal or External Strainer: Internal
- Item Grade: Standard Replacement
- Lock Ring Included: No
- Maximum Pressure: 80.0 PSI
- Outlet Outside Diameter: 0.375''
- Outlet Quantity: 1
- Outlet Type: Female Quick Connect
- Package Contents: Fuel Pump Module Assembly withFloat Arm, Instruction Sheet
- Pump Type: Electric
- Regulator Included: Yes
- Resistance Ohms Empty: 65.0
- Resistance Ohms Full: 990.0
- Strainer Included: Yes
- System Pressure: 72 psi
- Terminal Gender: Male
- Terminal Quantity: 6
- Terminal Type: Blade
- UPC: 689604295687
- Vapor Pressure Sensor: No
- Voltage: 12.0 VDC

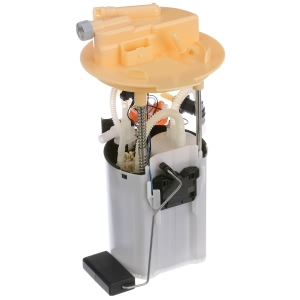

- Part Description: 2014 Volvo S60 Fuel Pump Module Assembly
Vehicle Fitment- 2014 Volvo S60 | All Trims | 5 Cyl 2.5L
Product Specifications- Notes: External Fuel Filter;Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
- Fuel Level Sender Assembly Included: Yes
- Fuel Type: Gas
- Gasket or Seal Included: No
- In Tank or External: In-Tank
- Inlet Type: Strainer
- Internal or External Strainer: Internal
- Item Grade: Standard Replacement
- Lock Ring Included: No
- Outlet Outside Diameter: 0.375''
- Outlet Quantity: 2
- Outlet Type: Quick Connect
- Package Contents: Fuel Pump Module Assembly withFloat Arm, Instruction Sheet
- Pump Type: Electric
- Regulator Included: Yes
- Resistance Ohms Empty: 51.0
- Resistance Ohms Full: 990.0
- Strainer Included: Yes
- Terminal Gender: Male
- Terminal Quantity: 6
- Terminal Type: Blade
- UPC: 689604338803
- Vapor Pressure Sensor: No
- Voltage: 12.0 VDC

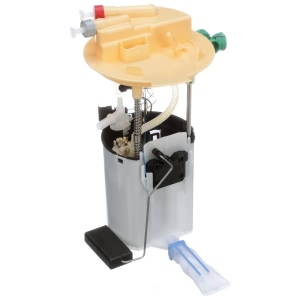

- Part Description: 2014 Volvo S60 Fuel Pump Module Assembly
Vehicle Fitment- 2014 Volvo S60 | All Trims | 6 Cyl 3.0L
Product Specifications- Notes: Without External Fuel Filter;Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
- Current Draw: 14
- Flow Rating: 33 gph
- Fuel Level Sender Assembly Included: Yes
- Fuel Type: Gas
- Gasket or Seal Included: No
- In Tank or External: In Tank
- Inlet Type: Strainer
- Internal or External Strainer: Internal
- Item Grade: Standard Replacement
- Lock Ring Included: No
- Maximum Pressure: 100.0 PSI
- Outlet Outside Diameter: 0.313''
- Outlet Quantity: 1
- Outlet Type: Female Quick Connect
- Pump Type: Electric
- Regulator Included: Yes
- Resistance Ohms Empty: 66.0
- Resistance Ohms Full: 990.0
- Strainer Included: Yes
- System Pressure: 72 psi
- Terminal Gender: Male
- Terminal Quantity: 6
- Terminal Type: Blade
- UPC: 689604241936
- Vapor Pressure Sensor: No
- Voltage: 12.0 VDC
- Part Description: 2014 Volvo S60 Fuel Pump Module Assembly
Vehicle Fitment- 2014 Volvo S60 | All Trims | 6 Cyl 3.0L
Product Specifications- Notes: Color Black; Part Attributes W/ Threaded Filler Neck; Part Replacement Replaces 48349
- Cam Type: Threaded
- Cap Depth: 2.48"
- Neck Diameter: 1.77"
- Shell Diameter: 2.91"
- UPC: 033342062283
- Venting: Emission Control
- Part Description: 2014 Volvo S60 Fuel Tank Cap
Vehicle Fitment- 2014 Volvo S60 | All Trims | 6 Cyl 3.0L
- 2014 Volvo S60 | All Trims | 5 Cyl 2.5L
Product Specifications- Notes: Grade: Aftermarket
- Diameter 2 [mm]: 8
- Height [mm]: 94,3
- Packaging height [cm]: 15,3
- Packaging width [cm]: 6,5
- Weight [kg]: 0,183
- Part Description: 2014 Volvo S60 Fuel Filter
Vehicle Fitment- 2014 Volvo S60 | All Trims | 6 Cyl 3.0L
- 2014 Volvo S60 | All Trims | 5 Cyl 2.5L
Product Specifications- Notes: Color Black; Part Attributes W/ Threaded Filler Neck; Part Replacement Replaces 48349
- Cam Type: Threaded
- Cap Depth: 1.78"
- Neck Diameter: 1.77"
- Shell Diameter: 2.61"
- UPC: 033342062191
- Venting: Emission Control
- Part Description: 2014 Volvo S60 Fuel Tank Cap
Vehicle Fitment- 2014 Volvo S60 | All Trims | 6 Cyl 3.0L
- 2014 Volvo S60 | All Trims | 5 Cyl 2.5L
Product Specifications- Notes: To Chassis# 421699; Purple;Purple
- Cam Type: Threaded
- Color: Purple
- UPC: 033342142695
- Part Description: 2014 Volvo S60 Purple Fuel Cap Testing Adapter
Vehicle Fitment- 2014 Volvo S60 | All Trims | 6 Cyl 3.0L
- 2014 Volvo S60 | All Trims | 5 Cyl 2.5L
Product Specifications- Notes: Color Black; Part Attributes W/ Threaded Filler Neck
- Cap Depth: 2.500
- Color: Black
- Fuel Cap Venting: Emission Control
- Locking: Yes
- Material: Plastic
- Neck Diameter: 1.750
- Shell Diameter: 2.938
- Tether Included: No
- UPC: 333420090048
- Part Description: 2014 Volvo S60 Regular Keyed Alike Fuel Cap
Vehicle Fitment- 2014 Volvo S60 | All Trims | 6 Cyl 3.0L
- 2014 Volvo S60 | All Trims | 5 Cyl 2.5L
