Mercedes-Benz 380SL A/C & Heating
Select vehicle to guarantee fit
Make
Model
Year
< Back to View All
Engine & Drivetrain
- Department
- Brands
- Prices
$380.49Product Specifications- Belt Width IN: 0.4375
- Belt Width MM: 11.113
- Clutch Included: Yes
- Clutch Maximum Diameter: 5.125
- Coil Clock Position: 2
- Coil Voltage: 12
- Compatible Refrigerant Oil Type: PAG 46
- Compressor Type: A6
- Discharge Port Type: O-Ring
- Distance From Clutch To Mounting Flange: 2.000
- Mount Distance MM: 50.800
- Mounting Hardware: Not Included
- Mounting Type: Direct Mount
- New or Reman: New
- O-Ring A Number/Desc: [24619] / Green Oval O-Ring
- O-Ring A Quantity: 2
- O-Ring B Number/Desc: Not Required
- O-Ring B Quantity: NR
- O-Ring C Number/Desc: Not Required
- O-Ring C Quantity: NR
- Pulley Belt Type: V-Belt
- Pulley Diameter MM: 123.698
- Pulley Groove Quantity: 1
- Pulley Lip Diameter: 5.125
- Pulley Outside Diameter: 5.125
- Pulley Ridge Diameter: 5.125
- Refrigerant Type: R134a
- Suction Port Type: O-Ring
- Switch Included: Superheat
- Terminal Type: Spade
- UPC: 096361580985
- Part Description: Mercedes-Benz 380SL A C Compressor With Clutch
$141.22Product Specifications- Core Depth Fraction: 3
- Core Depth MM: 76.200
- Core Height Fraction: 13; 14-3/4
- Core Height MM: 330.200; 374.650
- Core Width Fraction: 7
- Core Width MM: 177.800
- Depth: 3.000
- Height: 13.000; 14.750
- Inlet Fitting Outside Diameter: No. 8
- Inlet Fitting Type: Flare Fitting
- Material: Aluminum
- Outlet Fitting Outside Diameter: No. 10
- UPC: 096361541313
- Width: 7.000

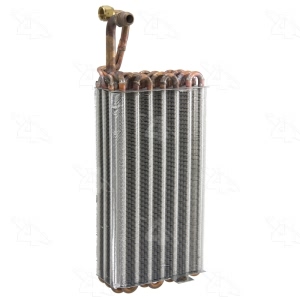

- Part Description: Mercedes-Benz 380SL A C Evaporator Core
$22.53Product Specifications- Material: Green Rubber O-Rings
- Style: O-Ring & Gasket Kit
- UPC: 096361267695
- Part Description: Mercedes-Benz 380SL A C System O Ring And Gasket Kit
$22.45Product Specifications- Color: Brass
- Refrigerant Type: R134A
- Super Heat: 9.9
- UPC: 096361386044

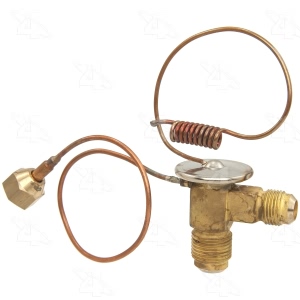

- Part Description: Mercedes-Benz 380SL A C Expansion Valve
$12.74Product Specifications- Color: Black
- Comp Open/Closed: Open
- Connector Gender: Male
- Connector Shape: Open
- Fitting Gender: Male
- Fitting Thread Size: 3/8 in. x 24
- Item Included A Desc: 24606
- Item Included A Qty.: 1
- Meets / Exceeds OEM: YES
- Mnt Sys Loc: System Mounted
- Number of Terminals: 2
- Operate Psi Low Off: 29
- Operate Psi Low On: 30
- Style: Binary
- UPC: 096361365742
- Part Description: Mercedes-Benz 380SL A C Compressor Cut Out Switch
$11.84Product Specifications- Cap Color: Red, Blue, Black
- Cap Inside Diameter: Specific
- Cap Material: Plastic
- Material: Aluminum
- Refrigerant Type: R12, R134a
- Style: Cap & Valve Kit
- UPC: 096361267770
- Valve Core Material: Specific
- Part Description: Mercedes-Benz 380SL A C System Valve Core And Cap Kit
$9.22Product Specifications- Material: Green Rubber O-Rings, White Teflon Sealing
- Style: O-Ring & Gasket Kit
- UPC: 096361267718
- Part Description: Mercedes-Benz 380SL A C System O Ring And Gasket Kit
$8.22Product Specifications- Connector B Gender: Female
- Connector B Shape: Rectangle
- Connector Shape: Oval
- Gender: Female
- Printed Foot Note: Harness Connector Adapter
- Style: Harness Connector Adapter
- Terminal Gender: Male
- Terminal Quantity: 2
- UPC: 096361372160
- Part Description: Mercedes-Benz 380SL Harness Connector Adapter
$7.27Product Specifications- Connector Pin Qty: 2
- Connector Shape: Rectangle
- Connector Type: Spade
- Gender: Female
- Printed Foot Note: Repair Kit for GM 2 Terminal Coil w/ Diode
- Style: Harness Connector
- Terminal Gender: Female
- Terminal Quantity: 2
- UPC: 096361372016
- Part Description: Mercedes-Benz 380SL A C Compressor Wiring Harness
$8.28Product Specifications- Connector B Gender: Female
- Connector B Shape: Rectangle
- Connector Pin Qty: 2
- Connector Shape: Rectangle
- Gender: Female
- Printed Foot Note: 12" Extension Coil Wire for GM Products.
- Style: Harness Connector Adapter
- Terminal Gender: Male
- Terminal Quantity: 2
- UPC: 096361372092
- Wire Length IN: 12.000
- Wire Length MM: 304.800
- Part Description: Mercedes-Benz 380SL Harness Connector Adapter
Four Seasons® A C Compressor Cut Out Switch Harness Connector for Mercedes-Benz 380SL
PartNumber: 37219$6.73Product Specifications- Connector Pin Qty: 2
- Connector Shape: Round
- Connector Type: Pin
- Gender: Female
- Printed Foot Note: Pressure Switch Harness Connector
- Style: Harness Connector
- Terminal Gender: Female
- Terminal Quantity: 2
- UPC: 096361372191
- Part Description: Mercedes-Benz 380SL A C Compressor Cut Out Switch Harness Connector
$26.39Product Specifications- Body Diameter: 3.000
- Body Length: 6.500
- Bracket: w/ Bracket
- Connector B Type: Male Flare
- Connector Type: Male Flare
- Desiccant: Yes
- Desiccant Replaceable: Not Replaceable
- Dia. MM: 76.200
- Fuse Plug: No
- Gasket / Seals: Included
- In Line Filter Material: Desiccant
- In Line Filter Outlet Fitting Type: Male
- Inlet Filter Fitting Thread Diameter: 0.625
- Inlet Filter Fitting Type: Male
- Inlet Fitting Diameter: 0.375
- Inlet Fitting Type: Flare Fitting
- Inlet Fraction: 3/8
- Inlet IN: 0.375
- Inlet MM: 9.525
- Length MM: 165.100
- Material: Steel
- Meets / Exceeds OEM: Yes
- Moisture Indicator Window: No
- Mounting Bracket Included: Hardware not included
- New or Reman: New
- O-Ring A Number/Desc: [24606] / Green O-Ring
- O-Ring A Quantity: 2
- Outlet Fitting Type: Flare Fitting
- Outlet Fraction: 1/2
- Outlet IN: 0.500
- Outlet MM: 12.700
- Overall Depth IN: 6.500
- P. R. V.: Yes
- Service Port: w/o Service Port
- Sight Glass: No
- Stud: No
- Style: Steel Filter Drier
- Switch Port: w/ Switch Port
- Switch Port Dia. IN: 0.250
- Switch Port Dia.MM: 6.350
- UPC: 096361333987
- Part Description: Mercedes-Benz 380SL A C Receiver Drier
$338.05Product Specifications- Belt Width IN: 0.4375
- Clutch Included: Yes
- Clutch Maximum Diameter: 5.125
- Coil Clock Position: 2
- Coil Type: Spade
- Coil Voltage: 12
- Compatible Refrigerant Oil Type: PAG 150
- Compressor Type: A6
- Distance From Clutch To Mounting Flange: 2.000
- Mounting Hardware: Not Included
- Mounting Type: Direct Mount
- New or Reman: Remanufactured
- O-Ring A Number/Desc: [24619] / Green Oval O-Ring
- O-Ring A Quantity: 2
- O-Ring B Number/Desc: Not Required
- O-Ring B Quantity: NR
- Pulley Belt Type: V-Belt
- Pulley Diameter MM: 123.698
- Pulley Groove Quantity: 1
- Pulley Lip Diameter: 5.125
- Pulley Outside Diameter: 5.125
- Pulley Ridge Diameter: 5.125
- Refrigerant Type: R134a
- Suc Prt Typ Note: W/ O-Ring
- Suction Port Type: Block Mount
- Switch Included: Superheat
- Terminal Type: Spade
- UPC: 096361570986
- Part Description: Mercedes-Benz 380SL Remanufactured A C Compressor With Clutch
Product Specifications- Bore (in): 1.574
- Bore (mm): 39.987
- Design: Double Row Angular Contact
- Inner Race Radius (in): 0.040
- Inner Race Radius (mm): 1.016
- Outside Diameter (In): 2.441
- Outside Diameter (mm): 62.004
- Series: SPECIAL
- Type: D-3
- Width (in): 0.812
- Width (mm): 20.625
- Part Description: Mercedes-Benz 380SL A/C Compressor Bearing
Product Specifications- UPC: 042511165052
- Part Description: Mercedes-Benz 380SL A/C Expansion Valve
Four Seasons® Reman GM Frigidaire/Harrison A6 Clutch Assembly w/ Coil for Mercedes-Benz 380SL
PartNumber: 48284Product Specifications- Belt Type: V-Belt
- Belt Width IN: 0.4375
- Can Size: w/ Coil
- Clutch Maximum Diameter: 5.000
- Coil: w/ Coil
- Coil Voltage: 12
- Color: Black
- Connector Quantity: 2
- Distance From Clutch To Mounting Flange: 2.000
- Groove: 1
- Hub Number: [48241] / Clutch Assembly
- Lead Wire : One Piece Coil
- Material: Cast Iron
- Meets / Exceeds OEM: Yes
- Mounting Type: Press Fit
- Rotation: CCW-CW
- Style: Frigidaire/Harrison A6
- Terminal Quantity: 2
- Thermal Or Non Thermal: NR
- UPC: 096361482845
- Part Description: Mercedes-Benz 380SL Reman GM Frigidaire/Harrison A6 Clutch Assembly w/ Coil
