Mercedes-Benz C32 AMG Timing Belts, Chains, Cams & Related Parts
Select vehicle to guarantee fit
Make
Model
Year
< Back to View All
Engine & Drivetrain
- Department
- Brands
- Prices
$53.56Product Specifications- OE Comparison Rating: OE Performance
- Outside Circumference: 115.135"
- Rib Quantity: 8
- Section: K
- Top Width: 1.087"
- UPC: 072053474251

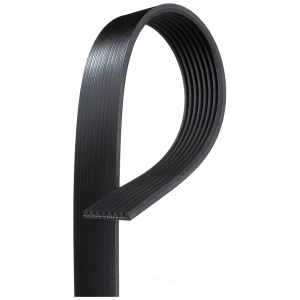

- Part Description: Mercedes-Benz C32 AMG Micro V V Ribbed Belt
$44.67Product Specifications- Color: Black
- Cross Section: K-Section
- Effective Length: 114.50; 2908.30
- Material: EPDM, Aramid Reinforced
- Maximum Operating Temperature: 100; 212
- Minimum Operating Temperature: -42.7; -45
- Outside Circumference: 115.06; 2922.53
- Rib Depth: Standard
- Rib Profile: Straight Rib
- Rib Quantity: 8
- Standards: SAE J1459, SAE J2432
- Top Width: 1.10
- UPC: 036687747129
- Part Description: Mercedes-Benz C32 AMG Gold Label Poly Rib Heavy Duty Belt
Product Specifications- Bearing Bore Inside Diameter 1: 8 mm
- Bearing Bore Inside Diameter 2: 14.5 mm
- Contact Surface: V-Ribbed Grooved
- Material: Thermoplastic
- Number of Grooves: 8
- Number Of Pulleys: 1
- Outside Diameter: 2.52"
- Pulley 1 Flanged: Yes
- UPC: 072053163179
- Width: 35.5 mm

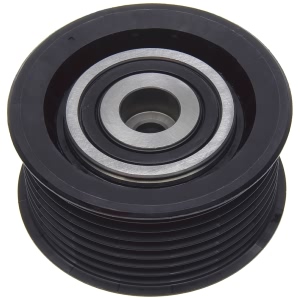

- Part Description: Mercedes-Benz C32 AMG Drivealign Drive Belt Idler Pulley
Product Specifications- Bearing Inner Diameter 1: 14.5
- Bearing Inner Diameter 2: 8.4
- Bearing Width: 35
- Belt Type: Serpentine
- Flat: N
- Groove Quantity: 8
- Material: Polymer
- Max Belt Width: 08 Rib
- Number of Bearings: 1
- Pulley Outside Diameter: 64
- Pulley Width: 33.5
- UPC: 036687421654

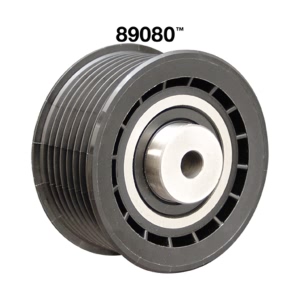

- Part Description: Mercedes-Benz C32 AMG No Slack Light Duty Idler Tensioner Pulley
Product Specifications- Chain Type: Simplex
- for OE number: 003 997 88 94
- Packaging height [cm]: 0,9
- Packaging width [cm]: 0,7
- Weight [kg]: 0,18
- Part Description: Mercedes-Benz C32 AMG Timing Chain
Product Specifications- Part Description: Mercedes-Benz C32 AMG OEM Quality Serpentine Belt
