Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Airtex |
| Part Number | AW6009 |

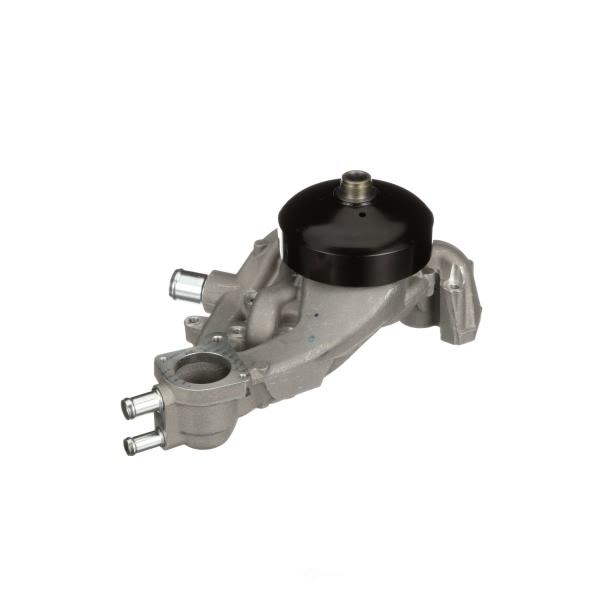

| Part Description | Engine Coolant Water Pump |
| Fan Clutch Included | No |
| Housing Material | Aluminum |
| Hub Height | 176.00 mm |
| Impeller Material | Steel |
| Impeller Rotation | Reverse |
| Impeller Vane Quantity | 7 |
| Includes Back Housing | No |
| Mounting Hole Quantity | 6 |
| Pulley Outside Diameter | 148.59 mm |
| Water Pump Drive Type | Serpentine Belt |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2007 Buick Rainier | All Trims | 8 Cyl 5.3L |
| 2007-2014 Cadillac Escalade | All Trims | 8 Cyl 6.2L |
| 2009-2013 Cadillac Escalade | All Trims | 8 Cyl 6.0L |
| 2007-2014 Cadillac Escalade ESV | All Trims | 8 Cyl 6.2L |
| 2007-2013 Cadillac Escalade EXT | All Trims | 8 Cyl 6.2L |
| 2007-2009 Chevrolet Avalanche | All Trims | 8 Cyl 6.0L |
| 2007-2013 Chevrolet Avalanche | All Trims | 8 Cyl 5.3L |
| 2009-2012 Chevrolet Colorado | All Trims | 8 Cyl 5.3L |
| 2007-2014 Chevrolet Express 1500 | All Trims | 8 Cyl 5.3L |
| 2007-2017 Chevrolet Express 2500 | All Trims | 8 Cyl 4.8L |
