Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Autobest |
| Part Number | F1112A |

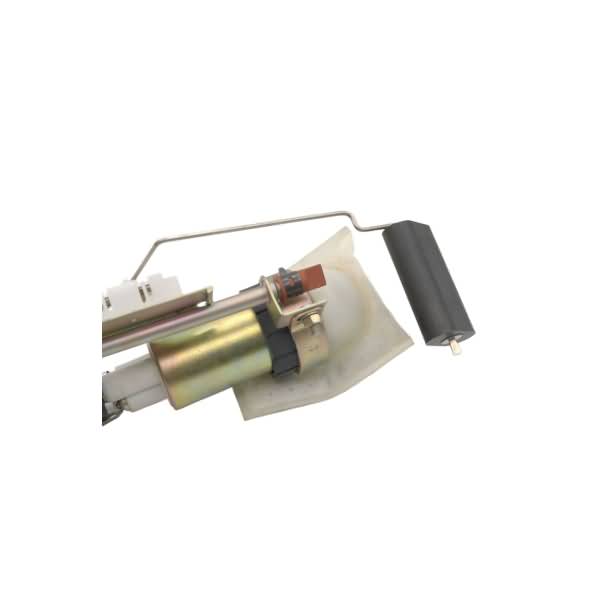

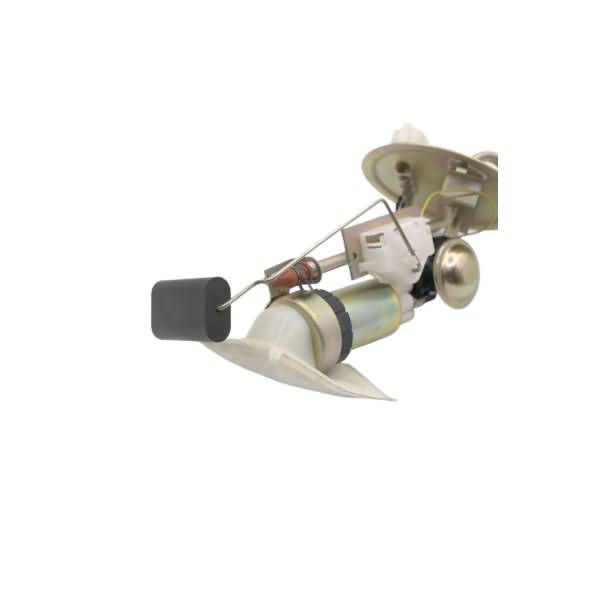

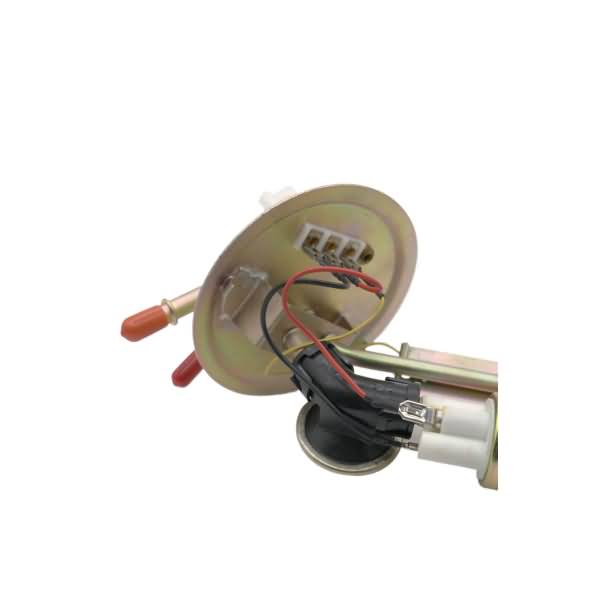

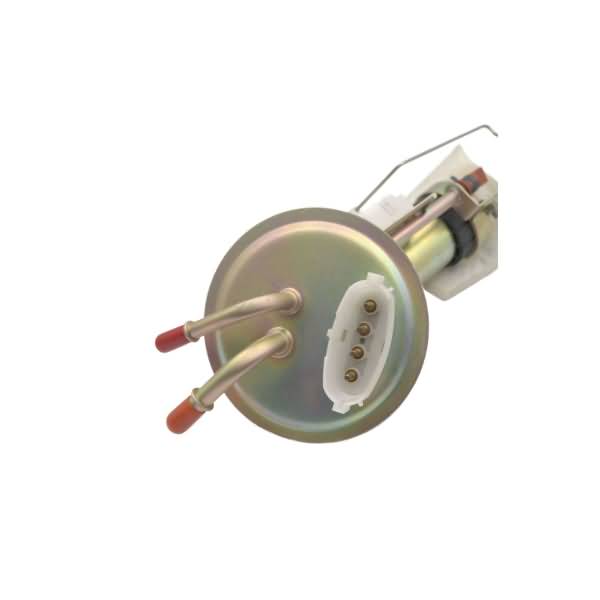

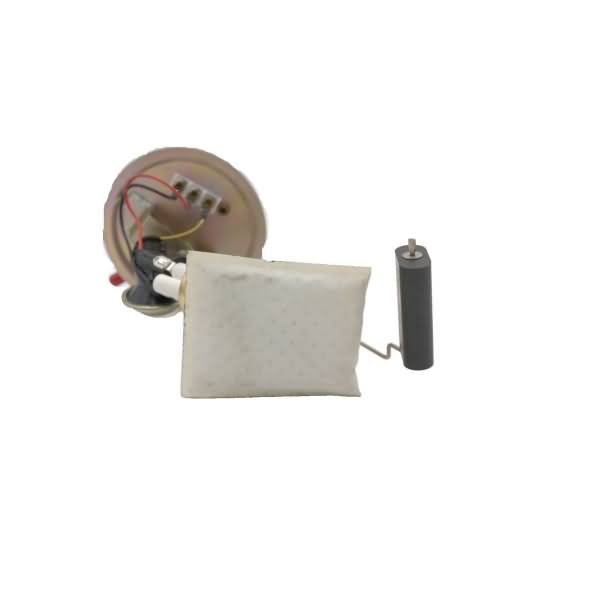

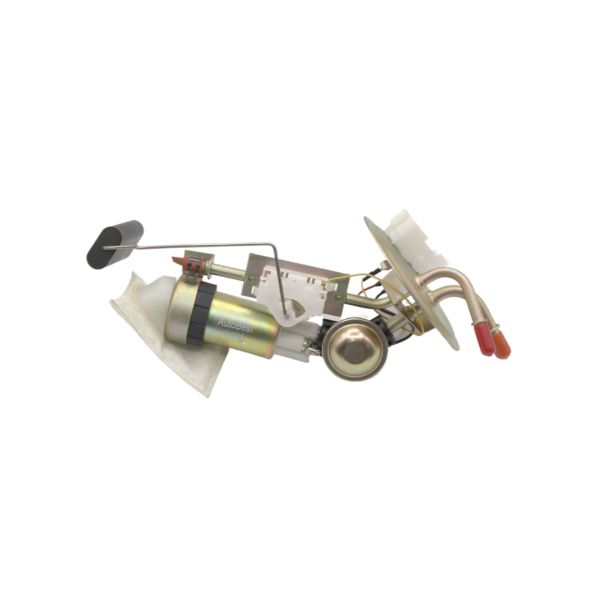

| Part Description | Fuel Pump and Sender Assembly |
| Average Current Draw(A) | 7 |
| Average Flow Rating(GPH) | 38 |
| Connector Gender | Male |
| Connector Quantity | 1 |
| Connector Shape | Elliptic |
| Country of Orign | China |
| Fuel Filter Included | No |
| Fuel Sending Unit Included | Yes |
| Fuel Tank Pressure Sensor Included | No |

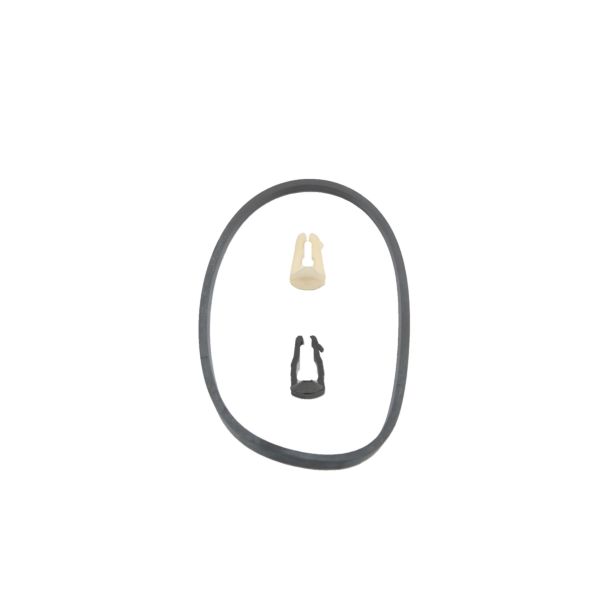

| Gasket or Seal Included | Yes |
| Gasket Or Seal Material | NBR |
| Grade Type | Performance |
| In Tank or External | In Tank |
| Inlet Size | 0.889 |
| Inlet Type | Strainer |
| Installation Warnings | No |
| Internal Or External Strainer | External |
| Maximum Pump Pressure (PSI) | 100 |
| Minimum Pump Pressure (PSI) | 80 |
| Mounting Hardware Included | No |
| Negative Ground | No |
| Outlet Quantity | 1 |
| Outlet Type | Quick Connect |
| Product Height (in) | 4.53 |
| Product Length (in) | 9.06 |
| Product Width (in) | 7.52 |
| Pump Type | Turbine |
| Regulator Included | No |
| Resistance Ohms Empty | 15 |
| Resistance Ohms Full | 160 |
| Strainer Included | Yes |
| Terminal Gender | Male |
| Terminal Quantity | 4 |
| Terminal Type | PIN |
| UPC | 00072845111128 |
| Voltage | 12V |
| Weight (lbs) | 1.83 |
| Wire Harness Included | No |
| Year Make Model | Trim | Engine |
|---|---|---|
| 1988-1994 Ford Tempo | All Trims | 4 Cyl 2.3L |
| 1992-1994 Ford Tempo | All Trims | 6 Cyl 3.0L |
| 1988-1994 Mercury Topaz | All Trims | 4 Cyl 2.3L |
| 1992-1994 Mercury Topaz | All Trims | 6 Cyl 3.0L |
