Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Autobest |
| Part Number | F2757A |

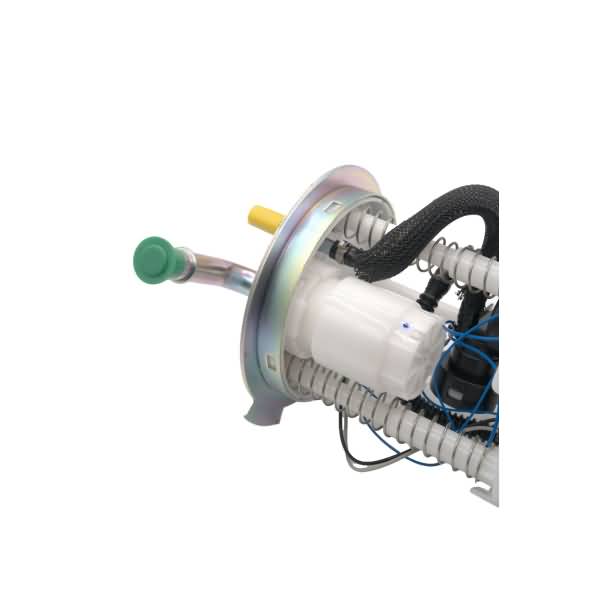

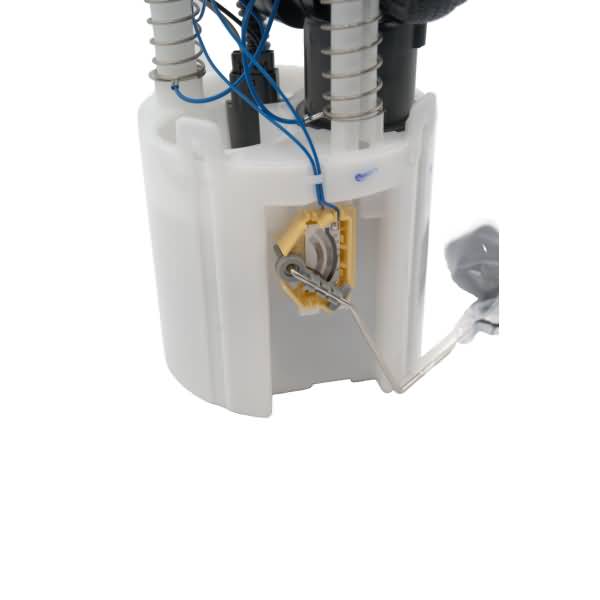

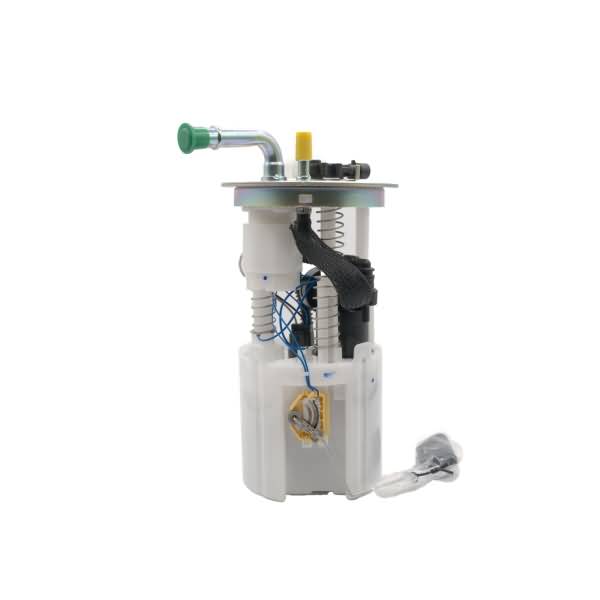

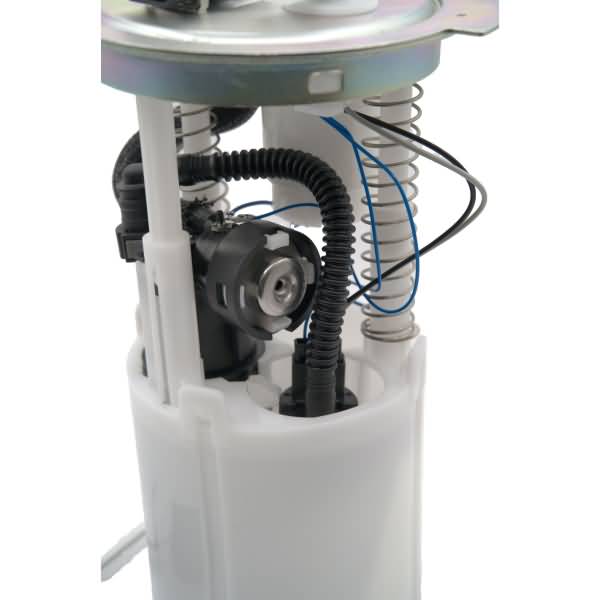

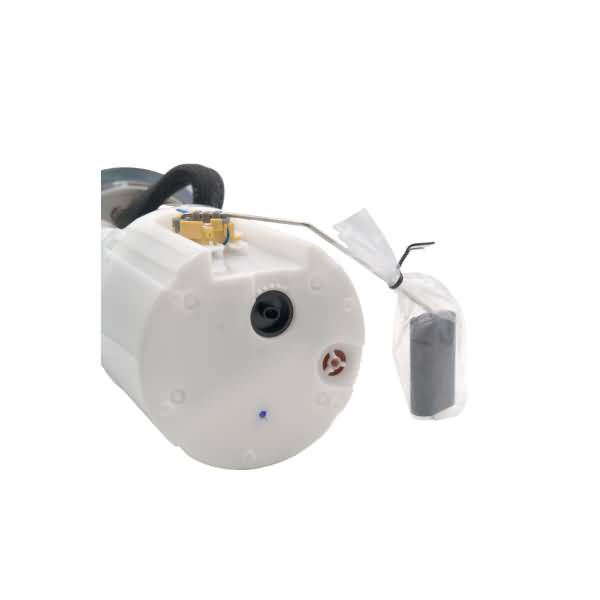

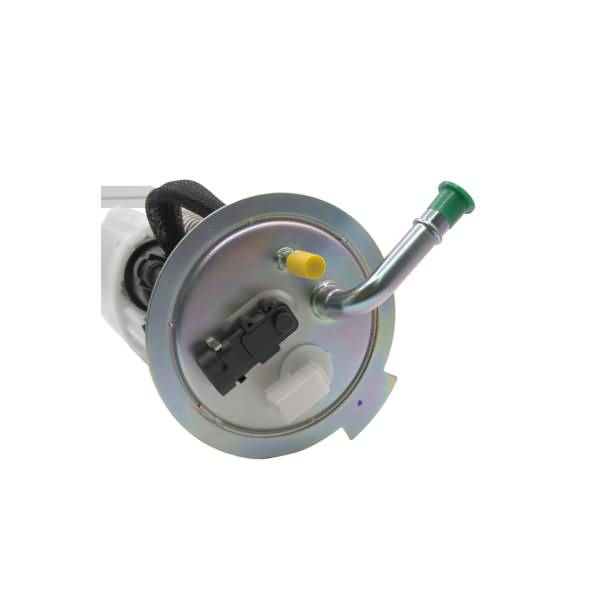

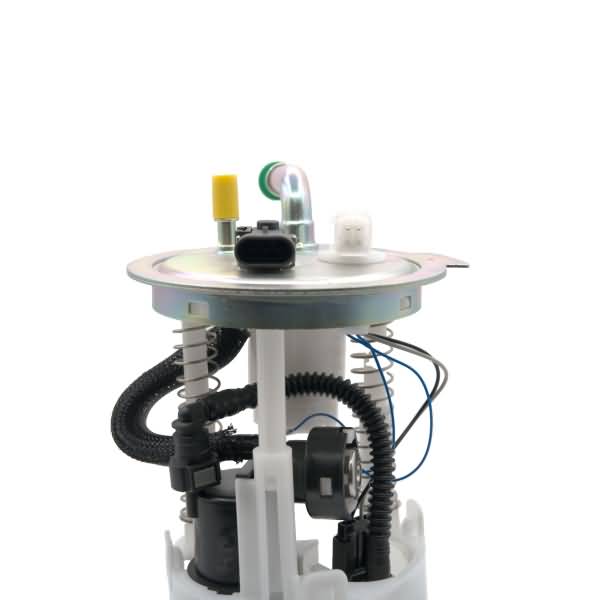

| Part Description | Fuel Pump Module Assembly |
| Average Current Draw(A) | 10 |
| Average Flow Rating(GPH) | 39.6 |
| Connector Gender | Male |
| Connector Quantity | 1 |
| Connector Shape | Rectangle |
| Country of Orign | China |
| Fuel Filter Included | Yes |
| Fuel Sending Unit Included | Yes |
| Fuel Tank Pressure Sensor Included | Yes |

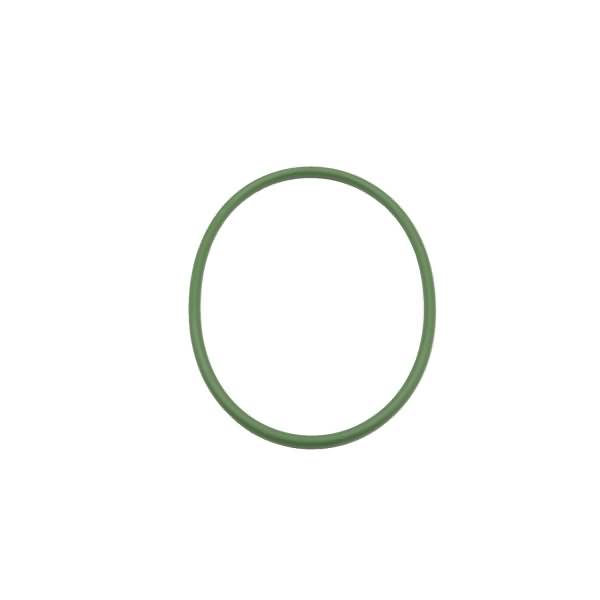

| Gasket or Seal Included | Yes |
| Gasket Or Seal Material | NBR |
| Grade Type | Regular |
| Housing Material | POM |
| In Tank or External | In Tank |
| Inlet Size | 0.433 |
| Inlet Type | Strainer |
| Installation Warnings | No |
| Internal Or External Strainer | Internal |
| Maximum Pump Pressure (PSI) | 63.8 |
| Minimum Pump Pressure (PSI) | 58 |
| Mounting Hardware Included | No |
| Negative Ground | Yes |
| Outlet Quantity | 1 |
| Outlet Type | Quick Connect |
| Product Height (in) | 5.51 |
| Product Length (in) | 12.2 |
| Product Width (in) | 7.87 |
| Pump Type | Turbine |
| Regulator Included | Yes |
| Resistance Ohms Empty | 250 |
| Resistance Ohms Full | 40 |
| Strainer Included | Yes |
| Terminal Gender | Male |
| Terminal Quantity | 4 |
| Terminal Type | PIN |
| UPC | 00072845127570 |
| Voltage | 12V |
| Weight (lbs) | 3.9 |
| Wire Harness Included | No |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2005-2006 Chevrolet Trailblazer EXT | All Trims | 6 Cyl 4.2L |
| 2005-2006 Chevrolet Trailblazer EXT | All Trims | 8 Cyl 5.3L |
| 2005-2006 GMC Envoy XL | All Trims | 6 Cyl 4.2L |
| 2005-2006 GMC Envoy XL | All Trims | 8 Cyl 5.3L |
| 2005 GMC Envoy XUV | All Trims | 6 Cyl 4.2L |
| 2005 GMC Envoy XUV | All Trims | 8 Cyl 5.3L |
| 2005-2006 Isuzu Ascender | All Trims | 6 Cyl 4.2L |
| 2005-2006 Isuzu Ascender | All Trims | 8 Cyl 5.3L |
