Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Autobest |
| Part Number | F1269 |

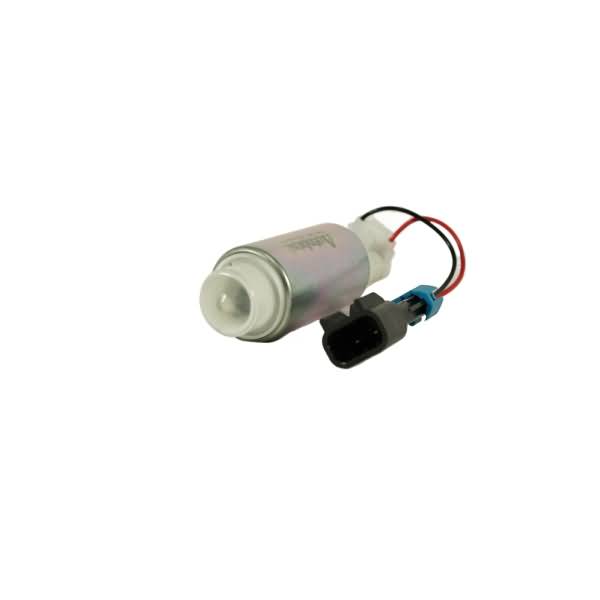

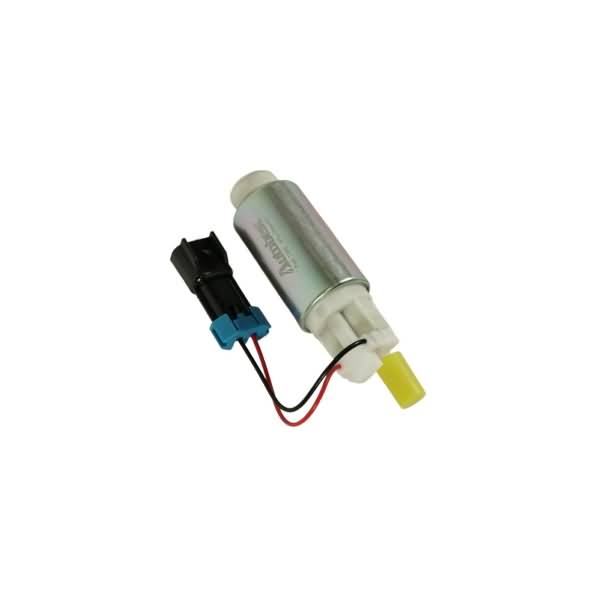

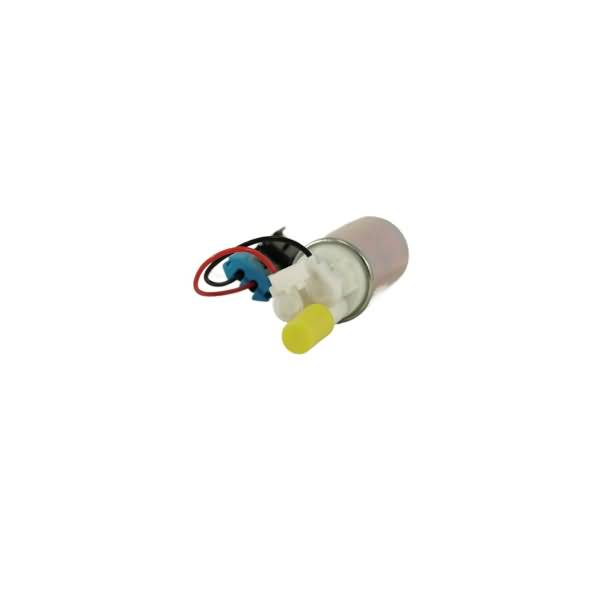

| Part Description | In Tank Electric Fuel Pump |
| Average Current Draw(A) | 6.5 |
| Average Flow Rating(GPH) | 145 |
| Connector Gender | Male |
| Connector Quantity | 1 |
| Connector Shape | Rectangle |
| Country of Orign | China |
| Gasket or Seal Included | No |
| Grade Type | Performance |
| In Tank or External | In Tank |
| Inlet Size | 0.902 |
| Inlet Type | Filter |
| Installation Warnings | No |
| Internal Or External Strainer | External |
| Maximum Pump Pressure (PSI) | 123.25 |
| Minimum Pump Pressure (PSI) | 79.8 |
| Outlet Quantity | 1 |
| Outlet Size | 0.36 |
| Outlet Type | Male tube / 1 barb |
| Product Height (in) | 1.44 |
| Product Length (in) | 5.02 |
| Product Width (in) | 1.44 |
| Pump Type | Turbine |
| Regulator Included | No |
| Terminal Gender | Male |
| Terminal Quantity | 2 |
| Terminal Type | Inserts |
| UPC | 00072845112699 |
| Voltage | 12V |
| Weight (lbs) | 0.71 |
| Wire Harness Included | Yes |
| Year Make Model | Trim | Engine |
|---|---|---|
| 1999-2004 Ford Ranger | All Trims | 6 Cyl 3.0L |
| 1999-2000 Mazda B3000 | All Trims | 6 Cyl 3.0L |
