Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Autobest |
| Part Number | F4197 |

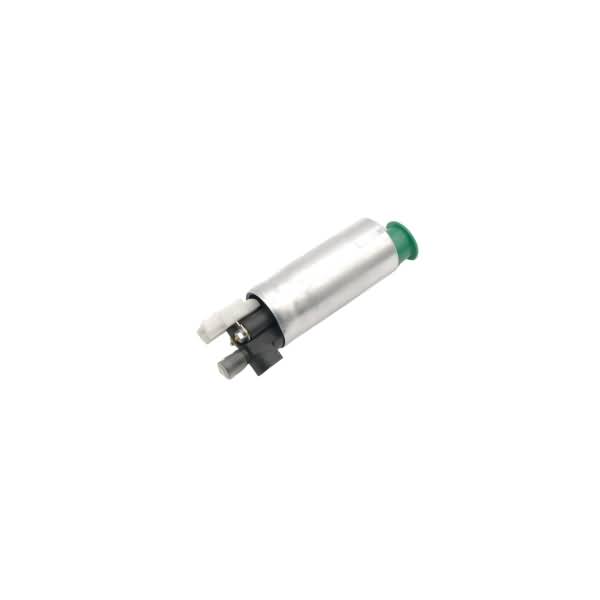

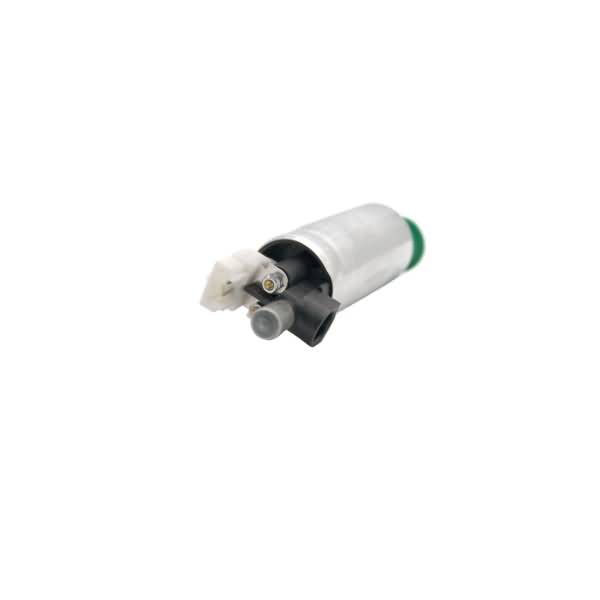

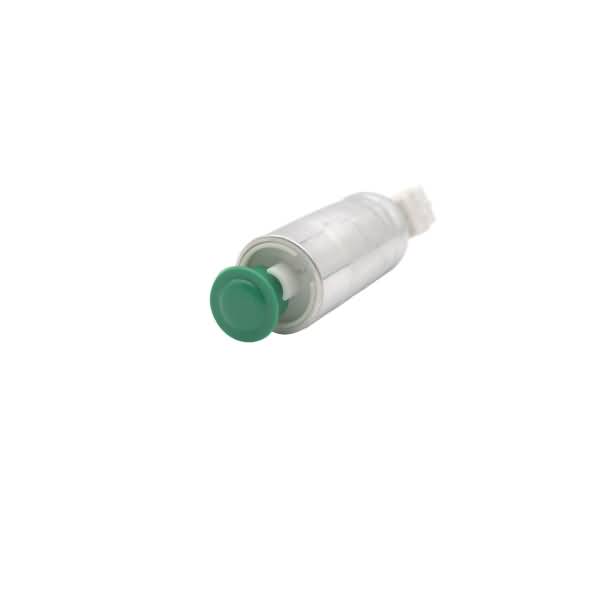

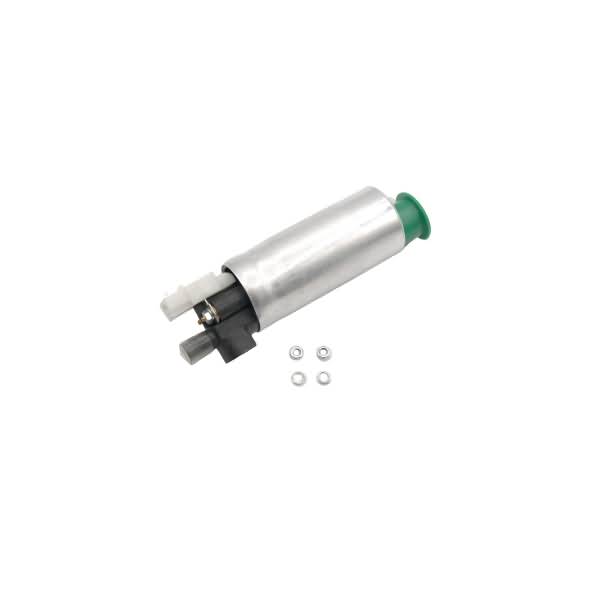

| Part Description | In Tank Electric Fuel Pump |
| Average Current Draw(A) | 4.5 |
| Average Flow Rating(GPH) | 95 |
| Connector Gender | Male |
| Connector Quantity | 1 |
| Connector Shape | Rectangle |
| Country of Orign | China |
| Gasket or Seal Included | No |
| Grade Type | Performance |
| In Tank or External | In Tank |
| Inlet Size | 0.748 |
| Inlet Type | Filter |
| Installation Warnings | No |
| Internal Or External Strainer | External |
| Maximum Pump Pressure (PSI) | 17.4 |
| Minimum Pump Pressure (PSI) | 11.6 |
| Outlet Quantity | 1 |
| Outlet Size | 0.37 |
| Outlet Type | Male tube / 0 barb |
| Product Height (in) | 1.44 |
| Product Length (in) | 5.16 |
| Product Width (in) | 1.44 |
| Pump Type | Turbine |
| Regulator Included | No |
| Terminal Gender | Male |
| Terminal Quantity | 2 |
| Terminal Type | Inserts |
| UPC | 00072845141972 |
| Voltage | 12V |
| Weight (lbs) | 0.66 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 1988-1992 Volvo 740 | All Trims | 4 Cyl 2.3L |
| 1986 Volvo 760 | All Trims | 6 Cyl 2.8L |
| 1986-1990 Volvo 760 | All Trims | 4 Cyl 2.3L |
| 1989-1991 Volvo 780 | All Trims | 4 Cyl 2.3L |
| 1995-1997 Volvo 850 | All Trims | 5 Cyl 2.3L |
| 1997 Volvo 850 | All Trims | 5 Cyl 2.4L |
| 1991-1995 Volvo 940 | All Trims | 4 Cyl 2.3L |
| 1992-1997 Volvo 960 | All Trims | 6 Cyl 2.9L |
| 1998 Volvo S90 | All Trims | 6 Cyl 2.9L |
| 1998 Volvo V90 | All Trims | 6 Cyl 2.9L |
