Sealed Power Valve Spring at AutoPartsPrime
Sealed Power Valve Spring at AutoPartsPrime

Select vehicle to guarantee fit

Year
Make
Model
Or

Sealed Power Valve Spring

< Back to View All
Sealed Power Parts
  • Prices

41 Products found

Sort by:
Recommended
Filter Results
Sort
View by

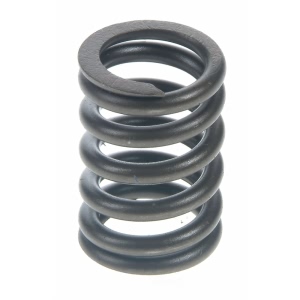

  • Sealed Power Engine Valve Spring - VS-1462

    Sealed Power® Engine Valve Spring

    PartNumber: VS-1462
    $3.70
    Product Specifications
    • OS Free Height: 46.7360
    • OS Free Height (Inch): 1.8400
    • OS Max OD: 33.1980
    • OS Max OD (Inch): 1.3070
    • OS Min Close: 40.0560
    • OS Min Close (Inch): 1.5770
    • OS Min Close LBS: 61
    • OS Min ID: 23.4440
    • OS Min ID (Inch): 0.9230
    • OS Min Open: 29.3620
    • OS Min Open (Inch): 1.1560
    • OS Min Open LBS: 172
    • OS Solid Height: 26.6700
    • OS Solid Height (Inch): 1.0500
    • OS Spring Rate: 263.7
    • OS Total Coils: 5.9
    • OS Wire Diameter: 4.6230
    • OS Wire Diameter (Inch): 0.1820
    • Spring Configuration: S Single
    • UPC: 724956645749
    • Part Description: Engine Valve Spring
    More Info

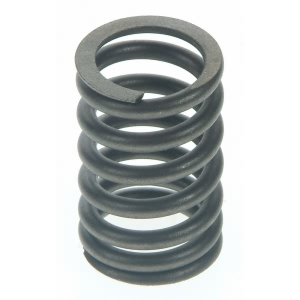

  • Sealed Power Engine Valve Spring - VS-527

    Sealed Power® Engine Valve Spring

    PartNumber: VS-527
    $1.76
    Product Specifications
    • OS Free Height: 51.0540
    • OS Free Height (Inch): 2.0100
    • OS Max OD: 23.3680
    • OS Max OD (Inch): 0.9200
    • OS Min Close: 42.9260
    • OS Min Close (Inch): 1.6900
    • OS Min Close LBS: 23
    • OS Min ID: 16.9670
    • OS Min ID (Inch): 0.6680
    • OS Min Open: 31.7500
    • OS Min Open (Inch): 1.2500
    • OS Min Open LBS: 73
    • OS Solid Height: 28.9560
    • OS Solid Height (Inch): 1.1400
    • OS Wire Diameter: 3.1750
    • OS Wire Diameter (Inch): 0.1250
    • Spring Configuration: S Single
    • UPC: 724956646395
    • Part Description: Engine Valve Spring
    More Info
  • Sealed Power Engine Valve Spring - VS-1446

    Sealed Power® Engine Valve Spring

    PartNumber: VS-1446
    Product Specifications
    • OS Free Height: 52.4510
    • OS Free Height (Inch): 2.0650
    • OS Max OD: 33.5530
    • OS Max OD (Inch): 1.3210
    • OS Min Close: 40.0050
    • OS Min Close (Inch): 1.5750
    • OS Min Close LBS: 55.1
    • OS Min ID: 25.0700
    • OS Min ID (Inch): 0.9870
    • OS Min Open: 32.0040
    • OS Min Open (Inch): 1.2600
    • OS Min Open LBS: 99.8
    • OS Solid Height: 26.4160
    • OS Solid Height (Inch): 1.0400
    • OS Spring Rate: 149.2
    • OS Total Coils: 6.8
    • OS Wire Diameter: 4.1150
    • OS Wire Diameter (Inch): 0.1620
    • Spring Configuration: S Single
    • UPC: 724956645596
    • Part Description: Engine Valve Spring
    More Info
  • Sealed Power Engine Valve Spring - VS-743

    Sealed Power® Engine Valve Spring

    PartNumber: VS-743
    Product Specifications
    • OS Free Height: 50.5460
    • OS Free Height (Inch): 1.9900
    • OS Max OD: 34.7470
    • OS Max OD (Inch): 1.3680
    • OS Min Close: 45.3640
    • OS Min Close (Inch): 1.7860
    • OS Min Close LBS: 64
    • OS Min ID: 24.0790
    • OS Min ID (Inch): 0.9480
    • OS Min Open: 35.8390
    • OS Min Open (Inch): 1.4110
    • OS Min Open LBS: 188
    • OS Solid Height: 31.7500
    • OS Solid Height (Inch): 1.2500
    • OS Spring Rate: 330.7
    • OS Total Coils: 6.4
    • OS Wire Diameter: 5.0800
    • OS Wire Diameter (Inch): 0.2000
    • Part Alert: Use w/Rotators
    • Spring Configuration: S Single
    • UPC: 724956647408
    • Part Description: Engine Valve Spring
    More Info
  • Sealed Power Engine Valve Spring - VS-744

    Sealed Power® Engine Valve Spring

    PartNumber: VS-744
    Product Specifications
    • OS Free Height: 51.3080
    • OS Free Height (Inch): 2.0200
    • OS Max OD: 31.1150
    • OS Max OD (Inch): 1.2250
    • OS Min Close: 43.1800
    • OS Min Close (Inch): 1.7000
    • OS Min Close LBS: 78
    • OS Min ID: 22.2250
    • OS Min ID (Inch): 0.8750
    • OS Min Open: 31.7500
    • OS Min Open (Inch): 1.2500
    • OS Min Open LBS: 198
    • OS Solid Height: 28.9050
    • OS Solid Height (Inch): 1.1380
    • OS Total Coils: 6.6
    • OS Wire Diameter: 4.4450
    • OS Wire Diameter (Inch): 0.1750
    • Part Alert: w/o Damper
    • Spring Configuration: S Single
    • UPC: 724956647415
    • Part Description: Engine Valve Spring
    More Info
  • Sealed Power Engine Valve Spring - VS-1428

    Sealed Power® Engine Valve Spring

    PartNumber: VS-1428
    Product Specifications
    • OS Free Height: 59.5120
    • OS Free Height (Inch): 2.3430
    • OS Max OD: 36.5000
    • OS Max OD (Inch): 1.4370
    • OS Min Close: 45.2120
    • OS Min Close (Inch): 1.7800
    • OS Min Close LBS: 107
    • OS Min ID: 26.9750
    • OS Min ID (Inch): 1.0620
    • OS Min Open: 35.3060
    • OS Min Open (Inch): 1.3900
    • OS Min Open LBS: 196
    • OS Wire Diameter: 4.7630
    • OS Wire Diameter (Inch): 0.1875
    • Spring Configuration: S/D Single with Damper
    • UPC: 724956645411
    • Part Description: Engine Valve Spring
    More Info
  • Sealed Power Engine Valve Spring - VS-1435

    Sealed Power® Engine Valve Spring

    PartNumber: VS-1435
    Product Specifications
    • OS Free Height: 49.9110
    • OS Free Height (Inch): 1.9650
    • OS Max OD: 36.1950
    • OS Max OD (Inch): 1.4250
    • OS Min Close: 45.7200
    • OS Min Close (Inch): 1.8000
    • OS Min Close LBS: 50
    • OS Min ID: 25.2730
    • OS Min ID (Inch): 0.9950
    • OS Min Open: 33.0200
    • OS Min Open (Inch): 1.3000
    • OS Min Open LBS: 220
    • OS Solid Height: 30.9880
    • OS Solid Height (Inch): 1.2200
    • OS Total Coils: 6.1
    • OS Wire Diameter: 5.0800
    • OS Wire Diameter (Inch): 0.2000
    • Spring Configuration: S Single
    • UPC: 724956645480
    • Part Description: Engine Valve Spring
    More Info
  • Sealed Power Engine Valve Spring - VS-1458

    Sealed Power® Engine Valve Spring

    PartNumber: VS-1458
    Product Specifications
    • OS Free Height: 48.2600
    • OS Free Height (Inch): 1.9000
    • OS Max OD: 35.4840
    • OS Max OD (Inch): 1.3970
    • OS Min Close: 39.8780
    • OS Min Close (Inch): 1.5700
    • OS Min Close LBS: 89
    • OS Min ID: 16.8910
    • OS Min ID (Inch): 0.6650
    • OS Min Open: 29.7180
    • OS Min Open (Inch): 1.1700
    • OS Min Open LBS: 208
    • OS Solid Height: 27.2030
    • OS Solid Height (Inch): 1.0710
    • OS Spring Rate: 297.5
    • OS Total Coils: 6.2
    • OS Wire Diameter: 4.7240
    • OS Wire Diameter (Inch): 0.1860
    • Spring Configuration: S Single
    • UPC: 724956645718
    • Part Description: Engine Valve Spring
    More Info
  • Sealed Power Engine Valve Spring - VS-1528

    Sealed Power® Engine Valve Spring

    PartNumber: VS-1528
    Product Specifications
    • OS Free Height: 48.1580
    • OS Free Height (Inch): 1.8960
    • OS Max OD: 33.9340
    • OS Max OD (Inch): 1.3360
    • OS Min Close: 38.1000
    • OS Min Close (Inch): 1.5000
    • OS Min Close LBS: 77.9
    • OS Min ID: 24.7140
    • OS Min ID (Inch): 0.9730
    • OS Min Open: 30.4800
    • OS Min Open (Inch): 1.2000
    • OS Min Open LBS: 150.1
    • OS Solid Height: 27.6860
    • OS Solid Height (Inch): 1.0900
    • OS Spring Rate: 253.3
    • OS Total Coils: 6.5
    • OS Wire Diameter: 4.4700
    • OS Wire Diameter (Inch): 0.1760
    • Spring Configuration: S Single
    • UPC: 724956645763
    • Part Description: Engine Valve Spring
    More Info
  • Sealed Power Engine Valve Spring - VS-1552

    Sealed Power® Engine Valve Spring

    PartNumber: VS-1552
    Product Specifications
    • OS Free Height: 49.5050
    • OS Free Height (Inch): 1.9490
    • OS Max OD: 34.2390
    • OS Max OD (Inch): 1.3480
    • OS Min Close: 43.9930
    • OS Min Close (Inch): 1.7320
    • OS Min Close LBS: 68.9
    • OS Min ID: 24.0030
    • OS Min ID (Inch): 0.9450
    • OS Min Open: 34.1880
    • OS Min Open (Inch): 1.3460
    • OS Min Open LBS: 211.9
    • OS Solid Height: 31.7500
    • OS Solid Height (Inch): 1.2500
    • OS Spring Rate: 370.5
    • OS Total Coils: 6.5
    • OS Wire Diameter: 5.0550
    • OS Wire Diameter (Inch): 0.1990
    • Spring Configuration: S Single
    • UPC: 053059813749
    • Part Description: Engine Valve Spring
    More Info
  • Sealed Power Engine Valve Spring - VS-1562

    Sealed Power® Engine Valve Spring

    PartNumber: VS-1562
    Product Specifications
    • OS Free Height: 42.0370
    • OS Free Height (Inch): 1.6550
    • OS Max OD: 30.2770
    • OS Max OD (Inch): 1.1920
    • OS Min Close: 35.5600
    • OS Min Close (Inch): 1.4000
    • OS Min Close LBS: 72
    • OS Min ID: 15.6210
    • OS Min ID (Inch): 0.6150
    • OS Min Open: 26.1620
    • OS Min Open (Inch): 1.0300
    • OS Min Open LBS: 172
    • OS Solid Height: 24.9430
    • OS Solid Height (Inch): 0.9820
    • OS Spring Rate: 270.3
    • OS Total Coils: 6
    • OS Wire Diameter: 4.2160
    • OS Wire Diameter (Inch): 0.1660
    • Spring Configuration: S Single
    • UPC: 053059813848
    • Part Description: Engine Valve Spring
    More Info
  • Sealed Power Engine Valve Spring - VS-1567

    Sealed Power® Engine Valve Spring

    PartNumber: VS-1567
    Product Specifications
    • OS Free Height: 55.2450
    • OS Free Height (Inch): 2.1750
    • OS Max OD: 34.3660
    • OS Max OD (Inch): 1.3530
    • OS Min Close: 38.6590
    • OS Min Close (Inch): 1.5220
    • OS Min Close LBS: 103
    • OS Min ID: 25.1460
    • OS Min ID (Inch): 0.9900
    • OS Min Open: 29.7690
    • OS Min Open (Inch): 1.1720
    • OS Min Open LBS: 191
    • OS Solid Height: 29.3370
    • OS Solid Height (Inch): 1.1550
    • OS Spring Rate: 242.8
    • OS Total Coils: 6.9
    • OS Wire Diameter: 4.3690
    • OS Wire Diameter (Inch): 0.1720
    • Spring Configuration: S Single
    • UPC: 724956645800
    • Part Description: Engine Valve Spring
    More Info
  • Sealed Power Engine Valve Spring - VS-1568

    Sealed Power® Engine Valve Spring

    PartNumber: VS-1568
    Product Specifications
    • OS Free Height: 51.3080
    • OS Free Height (Inch): 2.0200
    • OS Max OD: 36.4490
    • OS Max OD (Inch): 1.4350
    • OS Min Close: 42.1640
    • OS Min Close (Inch): 1.6600
    • OS Min Close LBS: 80.7
    • OS Min ID: 26.1870
    • OS Min ID (Inch): 1.0310
    • OS Min Open: 32.0040
    • OS Min Open (Inch): 1.2600
    • OS Min Open LBS: 187.2
    • OS Solid Height: 29.7430
    • OS Solid Height (Inch): 1.1710
    • OS Spring Rate: 275
    • OS Total Coils: 6.1
    • OS Wire Diameter: 4.8770
    • OS Wire Diameter (Inch): 0.1920
    • Part Alert: Incl. damper
    • Spring Configuration: S/D Single with Damper
    • UPC: 053059813909
    • Part Description: Engine Valve Spring
    More Info
  • Sealed Power Engine Valve Spring - VS-1582

    Sealed Power® Engine Valve Spring

    PartNumber: VS-1582
    Product Specifications
    • Max Lift: 0.4300
    • OS Free Height: 53.3400
    • OS Free Height (Inch): 2.1000
    • OS Max OD: 34.5190
    • OS Max OD (Inch): 1.3590
    • OS Min Close: 48.0060
    • OS Min Close (Inch): 1.8900
    • OS Min Close LBS: 78
    • OS Min ID: 23.6470
    • OS Min ID (Inch): 0.9310
    • OS Min Open: 36.8300
    • OS Min Open (Inch): 1.4500
    • OS Min Open LBS: 242
    • OS Solid Height: 35.5600
    • OS Solid Height (Inch): 1.4000
    • OS Spring Rate: 373
    • OS Total Coils: 6.8
    • OS Wire Diameter: 5.2580
    • OS Wire Diameter (Inch): 0.2070
    • Spring Configuration: S/D Single with Damper
    • UPC: 724956645831
    • Part Description: Engine Valve Spring
    More Info
  • Sealed Power Engine Valve Spring - VS-1630B

    Sealed Power® Engine Valve Spring

    PartNumber: VS-1630B
    Product Specifications
    • OS Free Height: 53.2130
    • OS Free Height (Inch): 2.0950
    • OS Max OD: 34.3660
    • OS Max OD (Inch): 1.3530
    • OS Min Close: 38.1000
    • OS Min Close (Inch): 1.5000
    • OS Min Close LBS: 98
    • OS Min ID: 25.5270
    • OS Min ID (Inch): 1.0050
    • OS Min Open: 29.2100
    • OS Min Open (Inch): 1.1500
    • OS Min Open LBS: 177
    • OS Solid Height: 28.7020
    • OS Solid Height (Inch): 1.1300
    • OS Spring Rate: 225.7
    • OS Total Coils: 6.8
    • OS Wire Diameter: 4.3180
    • OS Wire Diameter (Inch): 0.1700
    • Package Alert: Carton of 250
    • Spring Configuration: S Single
    • UPC: 614046178250
    • Part Description: Engine Valve Spring
    More Info
  • Sealed Power Engine Valve Spring - VS-1631

    Sealed Power® Engine Valve Spring

    PartNumber: VS-1631
    Product Specifications
    • OS Free Height: 42.1640
    • OS Free Height (Inch): 1.6600
    • OS Max OD: 27.2290
    • OS Max OD (Inch): 1.0720
    • OS Min Close: 35.5600
    • OS Min Close (Inch): 1.4000
    • OS Min Close LBS: 63
    • OS Min ID: 19.3040
    • OS Min ID (Inch): 0.7600
    • OS Min Open: 26.6700
    • OS Min Open (Inch): 1.0500
    • OS Min Open LBS: 159
    • OS Solid Height: 24.9430
    • OS Solid Height (Inch): 0.9820
    • OS Total Coils: 6.4
    • OS Wire Diameter: 3.9620
    • OS Wire Diameter (Inch): 0.1560
    • Spring Configuration: S Single
    • UPC: 724956849475
    • Part Description: Engine Valve Spring
    More Info
  • Sealed Power Engine Valve Spring - VS-1641

    Sealed Power® Engine Valve Spring

    PartNumber: VS-1641
    Product Specifications
    • OS Free Height: 52.2990
    • OS Free Height (Inch): 2.0590
    • OS Max OD: 31.7500
    • OS Max OD (Inch): 1.2500
    • OS Min Close: 43.1800
    • OS Min Close (Inch): 1.7000
    • OS Min Close LBS: 80
    • OS Min ID: 22.2500
    • OS Min ID (Inch): 0.8760
    • OS Min Open: 32.2580
    • OS Min Open (Inch): 1.2700
    • OS Min Open LBS: 195
    • OS Solid Height: 30.4800
    • OS Solid Height (Inch): 1.2000
    • OS Total Coils: 6.7
    • OS Wire Diameter: 4.4960
    • OS Wire Diameter (Inch): 0.1770
    • Spring Configuration: S Single
    • UPC: 614046344945
    • Part Description: Engine Valve Spring
    More Info
  • Sealed Power Engine Valve Spring - VS-1648

    Sealed Power® Engine Valve Spring

    PartNumber: VS-1648
    Product Specifications
    • OS Free Height: 50.7000
    • OS Free Height (Inch): 1.9961
    • OS Max OD: 33.7570
    • OS Max OD (Inch): 1.3290
    • OS Min Close: 40.6910
    • OS Min Close (Inch): 1.6020
    • OS Min Close LBS: 85
    • OS Min ID: 23.4950
    • OS Min ID (Inch): 0.9250
    • OS Min Open: 29.2350
    • OS Min Open (Inch): 1.1510
    • OS Min Open LBS: 206
    • OS Solid Height: 28.1940
    • OS Solid Height (Inch): 1.1100
    • OS Wire Diameter: 4.0640
    • OS Wire Diameter (Inch): 0.1600
    • Spring Configuration: S Single
    • UPC: 614046630949
    • Part Description: Engine Valve Spring
    More Info
  • Sealed Power Engine Valve Spring - VS-1649

    Sealed Power® Engine Valve Spring

    PartNumber: VS-1649
    Product Specifications
    • OS Free Height: 45.7200
    • OS Free Height (Inch): 1.8000
    • OS Max OD: 26.6190
    • OS Max OD (Inch): 1.0480
    • OS Min Close: 38.1000
    • OS Min Close (Inch): 1.5000
    • OS Min Close LBS: 65
    • OS Min ID: 18.6940
    • OS Min ID (Inch): 0.7360
    • OS Min Open: 30.4800
    • OS Min Open (Inch): 1.2000
    • OS Min Open LBS: 135
    • OS Solid Height: 27.9400
    • OS Solid Height (Inch): 1.1000
    • OS Total Coils: 7.2
    • OS Wire Diameter: 3.9620
    • OS Wire Diameter (Inch): 0.1560
    • Spring Configuration: S Single
    • UPC: 614046669604
    • Part Description: Engine Valve Spring
    More Info
  • Sealed Power Engine Valve Spring - VS-1650

    Sealed Power® Engine Valve Spring

    PartNumber: VS-1650
    Product Specifications
    • OS Free Height: 42.5450
    • OS Free Height (Inch): 1.6750
    • OS Max OD: 25.0190
    • OS Max OD (Inch): 0.9850
    • OS Min Close: 34.2900
    • OS Min Close (Inch): 1.3500
    • OS Min Close LBS: 43
    • OS Min ID: 18.2120
    • OS Min ID (Inch): 0.7170
    • OS Min Open: 27.9400
    • OS Min Open (Inch): 1.1000
    • OS Min Open LBS: 80
    • OS Solid Height: 25.4000
    • OS Solid Height (Inch): 1.0000
    • OS Total Coils: 7.3
    • OS Wire Diameter: 3.4290
    • OS Wire Diameter (Inch): 0.1350
    • Spring Configuration: S Single
    • UPC: 614046672048
    • Part Description: Engine Valve Spring
    More Info
  • Sealed Power Engine Valve Spring - VS-1661

    Sealed Power® Engine Valve Spring

    PartNumber: VS-1661
    Product Specifications
    • OS Free Height: 48.3870
    • OS Free Height (Inch): 1.9050
    • OS Max OD: 26.5180
    • OS Max OD (Inch): 1.0440
    • OS Min Close: 37.9980
    • OS Min Close (Inch): 1.4960
    • OS Min Close LBS: 75
    • OS Min ID: 18.7960
    • OS Min ID (Inch): 0.7400
    • OS Min Open: 29.7430
    • OS Min Open (Inch): 1.1710
    • OS Min Open LBS: 136
    • OS Solid Height: 28.2450
    • OS Solid Height (Inch): 1.1120
    • OS Total Coils: 7.6
    • OS Wire Diameter: 3.8610
    • OS Wire Diameter (Inch): 0.1520
    • Spring Configuration: S Single
    • UPC: 614046882515
    • Part Description: Engine Valve Spring
    More Info
  • Sealed Power Engine Valve Spring - VS-1665

    Sealed Power® Engine Valve Spring

    PartNumber: VS-1665
    Product Specifications
    • OS Free Height: 46.9140
    • OS Free Height (Inch): 1.8470
    • OS Max OD: 23.9780
    • OS Max OD (Inch): 0.9440
    • OS Min Close: 43.1800
    • OS Min Close (Inch): 1.7000
    • OS Min Close LBS: 29
    • OS Min ID: 16.4590
    • OS Min ID (Inch): 0.6480
    • OS Min Open: 32.6900
    • OS Min Open (Inch): 1.2870
    • OS Min Open LBS: 126
    • OS Solid Height: 29.0320
    • OS Solid Height (Inch): 1.1430
    • OS Total Coils: 8
    • OS Wire Diameter: 3.7590
    • OS Wire Diameter (Inch): 0.1480
    • Spring Configuration: S Single
    • UPC: 019826112972
    • Part Description: Engine Valve Spring
    More Info
  • Sealed Power Engine Valve Spring - VS-1670

    Sealed Power® Engine Valve Spring

    PartNumber: VS-1670
    Product Specifications
    • UPC: 019826218278
    • Part Description: Engine Valve Spring
  • Sealed Power Engine Valve Spring - VS-653

    Sealed Power® Engine Valve Spring

    PartNumber: VS-653
    Product Specifications
    • OS Free Height: 48.2600
    • OS Free Height (Inch): 1.9000
    • OS Max OD: 31.5470
    • OS Max OD (Inch): 1.2420
    • OS Min Close: 42.1640
    • OS Min Close (Inch): 1.6600
    • OS Min Close LBS: 56
    • OS Min ID: 22.1490
    • OS Min ID (Inch): 0.8720
    • OS Min Open: 32.2580
    • OS Min Open (Inch): 1.2700
    • OS Min Open LBS: 180
    • OS Solid Height: 29.7180
    • OS Solid Height (Inch): 1.1700
    • OS Spring Rate: 317.9
    • OS Total Coils: 6.7
    • OS Wire Diameter: 4.4960
    • OS Wire Diameter (Inch): 0.1770
    • Spring Configuration: S Single
    • UPC: 724956646821
    • Part Description: Engine Valve Spring
    More Info
  • Sealed Power Engine Valve Spring - VS-657

    Sealed Power® Engine Valve Spring

    PartNumber: VS-657
    Product Specifications
    • OS Free Height: 53.5940
    • OS Free Height (Inch): 2.1100
    • OS Max OD: 38.4050
    • OS Max OD (Inch): 1.5120
    • OS Min Close: 47.7520
    • OS Min Close (Inch): 1.8800
    • OS Min Close LBS: 96
    • OS Min ID: 27.4830
    • OS Min ID (Inch): 1.0820
    • OS Min Open: 37.0840
    • OS Min Open (Inch): 1.4600
    • OS Min Open LBS: 230
    • OS Solid Height: 34.0360
    • OS Solid Height (Inch): 1.3400
    • OS Total Coils: 6.5
    • OS Wire Diameter: 5.2580
    • OS Wire Diameter (Inch): 0.2070
    • Part Alert: Incl. damper
    • Spring Configuration: S/D Single with Damper
    • UPC: 724956646852
    • Part Description: Engine Valve Spring
    More Info
  • Sealed Power Engine Valve Spring - VS-673

    Sealed Power® Engine Valve Spring

    PartNumber: VS-673
    Product Specifications
    • OS Free Height: 65.5320
    • OS Free Height (Inch): 2.5800
    • OS Max OD: 35.3060
    • OS Max OD (Inch): 1.3900
    • OS Min Close: 47.2440
    • OS Min Close (Inch): 1.8600
    • OS Min Close LBS: 125
    • OS Min ID: 25.9080
    • OS Min ID (Inch): 1.0200
    • OS Min Open: 36.3220
    • OS Min Open (Inch): 1.4300
    • OS Min Open LBS: 200
    • OS Solid Height: 34.2900
    • OS Solid Height (Inch): 1.3500
    • OS Total Coils: 7.5
    • OS Wire Diameter: 4.6990
    • OS Wire Diameter (Inch): 0.1850
    • Spring Configuration: S Single
    • UPC: 724956646951
    • Part Description: Engine Valve Spring
    More Info
  • Sealed Power Engine Valve Spring - VS-675

    Sealed Power® Engine Valve Spring

    PartNumber: VS-675
    Product Specifications
    • Max Lift: 0.5200
    • OS Free Height: 56.6420
    • OS Free Height (Inch): 2.2300
    • OS Max OD: 37.9480
    • OS Max OD (Inch): 1.4940
    • OS Min Close: 47.2440
    • OS Min Close (Inch): 1.8600
    • OS Min Close LBS: 100
    • OS Min ID: 27.4320
    • OS Min ID (Inch): 1.0800
    • OS Min Open: 34.5440
    • OS Min Open (Inch): 1.3600
    • OS Min Open LBS: 236
    • OS Solid Height: 32.5120
    • OS Solid Height (Inch): 1.2800
    • OS Spring Rate: 272
    • OS Total Coils: 6.4
    • OS Wire Diameter: 5.2580
    • OS Wire Diameter (Inch): 0.2070
    • Part Alert: Incl. damper
    • Spring Configuration: S/D Single with Damper
    • UPC: 724956646968
    • Part Description: Engine Valve Spring
    More Info
  • Sealed Power Engine Valve Spring - VS-778

    Sealed Power® Engine Valve Spring

    PartNumber: VS-778
    Product Specifications
    • OS Free Height: 59.9440
    • OS Free Height (Inch): 2.3600
    • OS Max OD: 37.4400
    • OS Max OD (Inch): 1.4740
    • OS Min Close: 44.1960
    • OS Min Close (Inch): 1.7400
    • OS Min Close LBS: 118
    • OS Min ID: 27.1780
    • OS Min ID (Inch): 1.0700
    • OS Min Open: 33.2740
    • OS Min Open (Inch): 1.3100
    • OS Min Open LBS: 200
    • OS Solid Height: 31.6480
    • OS Solid Height (Inch): 1.2460
    • OS Spring Rate: 190.7
    • OS Total Coils: 6.8
    • OS Wire Diameter: 4.8770
    • OS Wire Diameter (Inch): 0.1920
    • Part Alert: Incl. damper
    • Spring Configuration: S/D Single with Damper
    • UPC: 724956647699
    • Part Description: Engine Valve Spring
    More Info
  • Sealed Power Engine Valve Spring - VS-786

    Sealed Power® Engine Valve Spring

    PartNumber: VS-786
    Product Specifications
    • OS Free Height: 46.3550
    • OS Free Height (Inch): 1.8250
    • OS Max OD: 33.9090
    • OS Max OD (Inch): 1.3350
    • OS Min Close: 40.6400
    • OS Min Close (Inch): 1.6000
    • OS Min Close LBS: 55
    • OS Min ID: 23.7490
    • OS Min ID (Inch): 0.9350
    • OS Min Open: 30.4800
    • OS Min Open (Inch): 1.2000
    • OS Min Open LBS: 165
    • OS Solid Height: 26.0350
    • OS Solid Height (Inch): 1.0250
    • OS Spring Rate: 275
    • OS Total Coils: 5.8
    • OS Wire Diameter: 4.6990
    • OS Wire Diameter (Inch): 0.1850
    • Spring Configuration: S Single
    • UPC: 724956647774
    • Part Description: Engine Valve Spring
    More Info
  • Sealed Power Engine Valve Spring - VS-813

    Sealed Power® Engine Valve Spring

    PartNumber: VS-813
    Product Specifications
    • OS Free Height: 44.7550
    • OS Free Height (Inch): 1.7620
    • OS Max OD: 30.2770
    • OS Max OD (Inch): 1.1920
    • OS Min Close: 41.7830
    • OS Min Close (Inch): 1.6450
    • OS Min Close LBS: 20
    • OS Min ID: 21.5900
    • OS Min ID (Inch): 0.8500
    • OS Min Open: 29.8450
    • OS Min Open (Inch): 1.1750
    • OS Min Open LBS: 122
    • OS Solid Height: 27.1270
    • OS Solid Height (Inch): 1.0680
    • OS Spring Rate: 222.3
    • OS Total Coils: 6.5
    • OS Wire Diameter: 4.2420
    • OS Wire Diameter (Inch): 0.1670
    • Spring Configuration: S Single
    • UPC: 724956647989
    • Part Description: Engine Valve Spring
    More Info
1-30 of 41 Results
< Previous
12
Next >
