Check if it fits by entering your vehicle info| Brand | brembo |

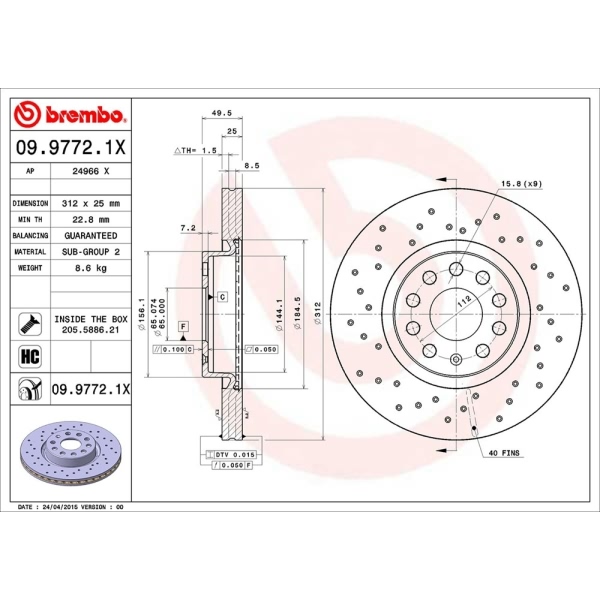

| Part Number | 09.9772.1X |

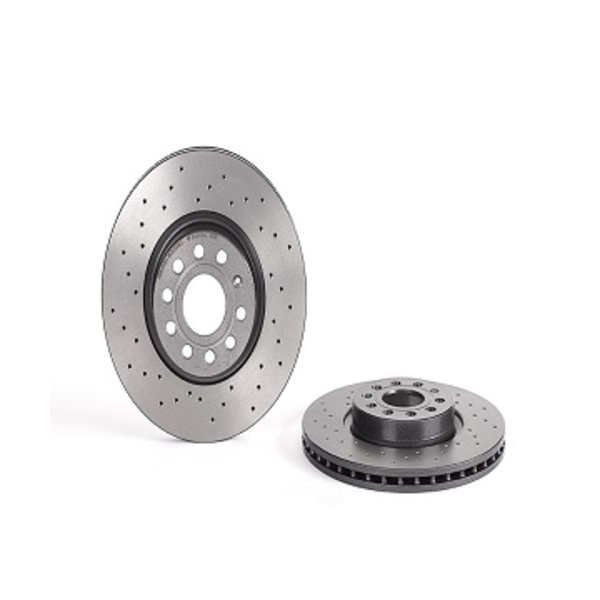

| Part Description | Premium Xtra Cross Drilled UV Coated 1-Piece Front Brake Rotors |
| Brake Surface Finish | Drilled |
| Center Diameter | 65 |
| Coated | UV Coated |
| Diameter (mm) | 312 |
| Fixing Screws | included |
| Height | 49.5 |
| Material | High Carbon |
| Minimum Thickness (mm) | 22.8 |
| Nominal Thickness (mm) | 25 |
| Number of Holes | 5 |
| OE Part Number | 5Q0 615 301 F, 1K0 615 301 AA, 5C0 615 301 B, 5C0 615 301 E, 561 615 301 B, 561 615 301 A |
| Quantity | 5 |
| Screw Material | Included |
| Solid Or Vented Type Rotor | vented |
| Torque Spec(NM) | 120 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2006-2013 Audi A3 | Base | All Engines |
| 2015-2019 Audi A3 | Premium | All Engines |
| 2015-2019 Audi A3 | Premium Plus | All Engines |
| 2015-2019 Audi A3 | Prestige | All Engines |
| 2019 Audi A3 | Titanium | All Engines |
| 2006-2013 Audi A3 Quattro | Base | All Engines |
| 2015-2018 Audi A3 Quattro | Premium | All Engines |
| 2015-2018 Audi A3 Quattro | Premium Plus | All Engines |
| 2015-2018 Audi A3 Quattro | Prestige | All Engines |
| 2016-2018 Audi A3 Sportback e-tron | Premium | All Engines |
