Vehicle Specific
Check if it fits by entering your vehicle info| Brand | brembo |

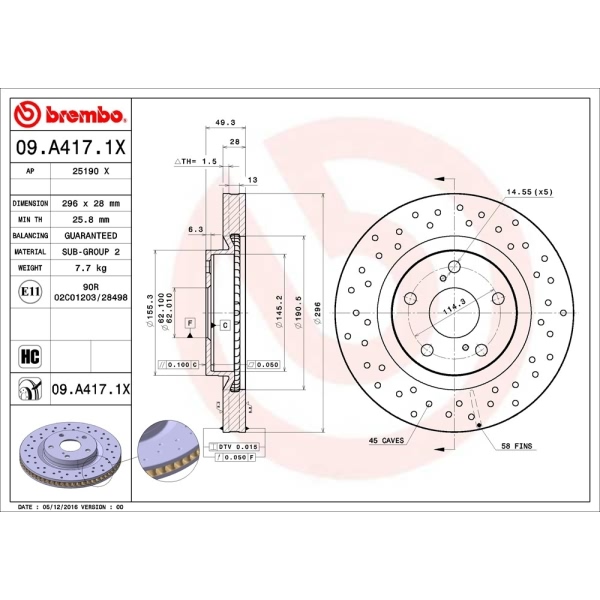

| Part Number | 09.A417.1X |

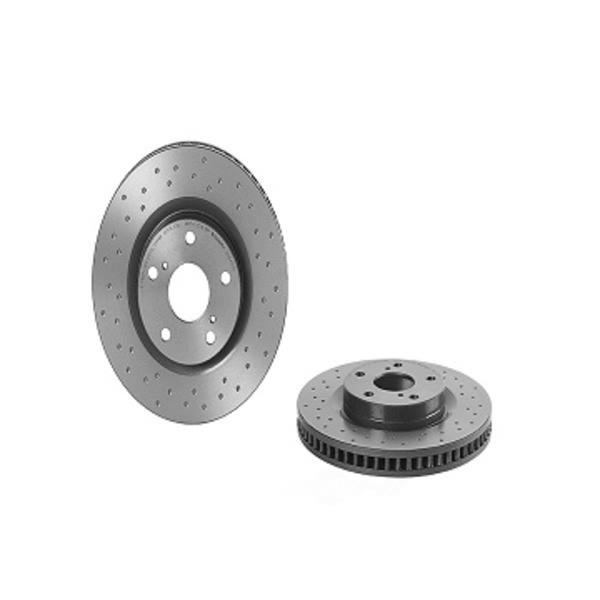

| Part Description | Premium Xtra Cross Drilled UV Coated 1-Piece Front Brake Rotors |
| Brake Surface Finish | Drilled |
| Center Diameter | 62 |
| Coated | UV Coated |
| Diameter (mm) | 296 |
| Height | 49.3 |
| Material | High Carbon |
| Minimum Thickness (mm) | 25.8 |
| Nominal Thickness (mm) | 28 |
| Number of Holes | 5 |
| Quantity | 5 |
| Solid Or Vented Type Rotor | vented |
| Torque Spec(NM) | 103 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2013-2018 Lexus ES300h | Base | All Engines |
| 2007-2018 Lexus ES350 | Base | All Engines |
| 2016 Scion iM | Base | All Engines |
| 2011-2016 Scion tC | Base | All Engines |
| 2008 Toyota Avalon | Touring | All Engines |
| 2008-2010 Toyota Avalon | XL | All Engines |
| 2008-2011 Toyota Avalon | Limited | All Engines |
| 2008-2011 Toyota Avalon | XLS | All Engines |
| 2011 Toyota Avalon | Base | All Engines |
| 2007-2008 Toyota Camry | CE | All Engines |
