Vehicle Specific
Check if it fits by entering your vehicle info| Brand | brembo |

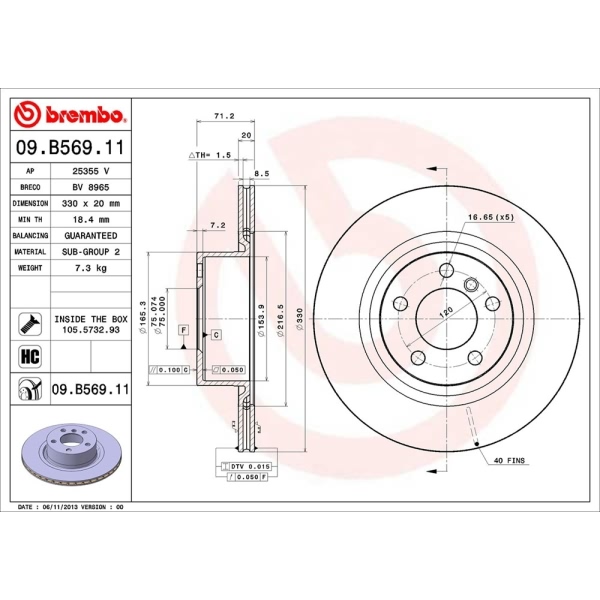

| Part Number | 09.B569.11 |

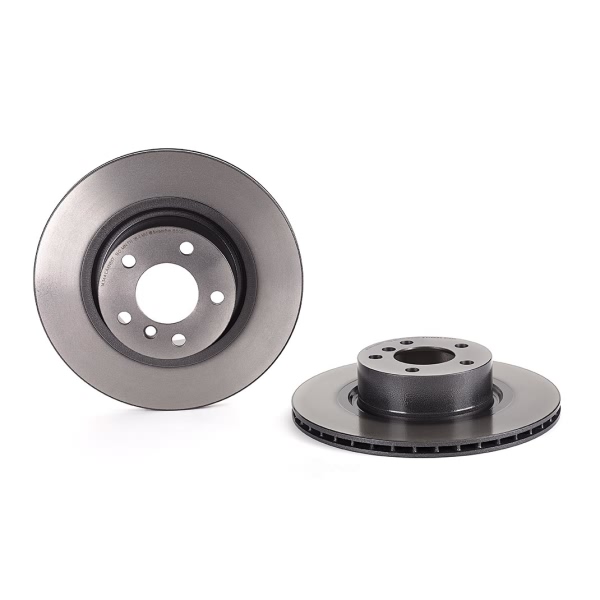

| Part Description | UV Coated Series Vented Rear Brake Rotor |
| Center Diameter | 75 |
| Coated | UV Coated |
| Diameter (mm) | 330 |
| Fixing Screws | included |
| Height | 71.2 |
| Material | High Carbon |
| Minimum Thickness (mm) | 18.4 |
| Nominal Thickness (mm) | 20 |
| Number of Holes | 5 |
| OE Part Number | 34206790362, 34 20 6 886 482, 34 20 6 868 936 |
| Quantity | 5 |
| Screw Material | Included |
| Solid Or Vented Type Rotor | vented |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2011-2017 BMW X3 | xDrive28i | All Engines |
| 2011-2017 BMW X3 | xDrive35i | All Engines |
| 2015 BMW X3 | xDrive28i X Line | All Engines |
| 2015-2017 BMW X3 | sDrive28i | All Engines |
| 2015-2017 BMW X3 | xDrive28d | All Engines |
| 2015-2016 BMW X4 | xDrive35i | All Engines |
| 2015-2018 BMW X4 | xDrive28i | All Engines |
| 2016-2018 BMW X4 | M40i | All Engines |
| 2017 BMW X4 | xDrive28i X Line | All Engines |
