Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Cardone Reman |
| Part Number | 22-1003 |

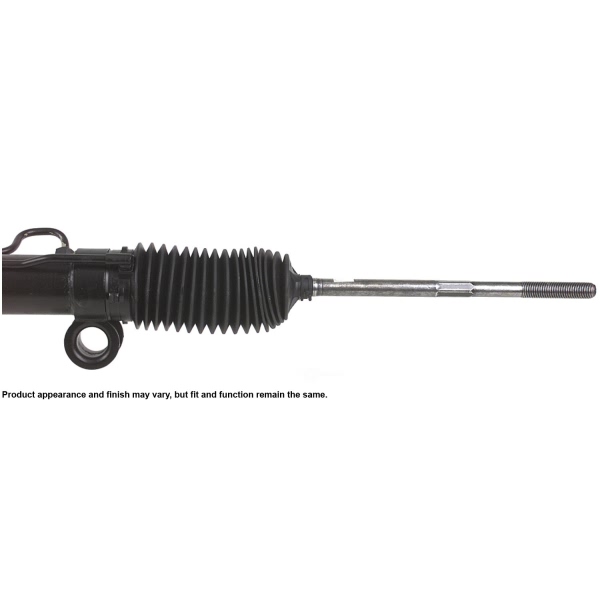

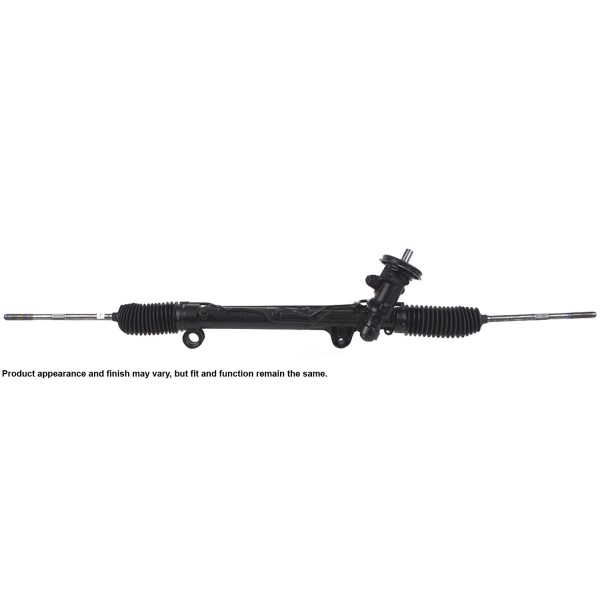

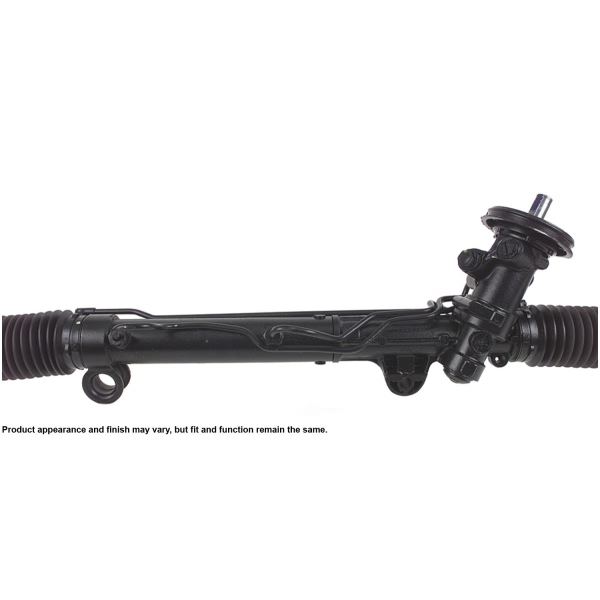

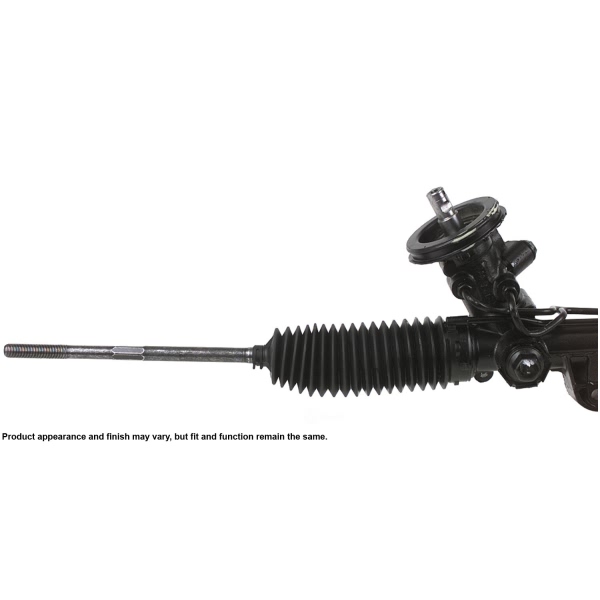

| Part Description | Remanufactured Hydraulic Power Rack and Pinion Complete Unit |
| Casting Material | Steel/Aluminum |
| Distance Between Mounting Holes (in) | 12.250" |
| Hose Port Type | O-Ring |
| Import or Domestic | Domestic |
| Input Shaft Diameter (in) | 0.783" |
| Input Shaft Length (in) | 1.875" |
| Number of Mounting Holes | 2 |
| Pressure Port Thread Size | M18 x 1.5 |
| Rack Length (in) | 49.750" |
| Return Port Thread Size | M16 x 1.5 |
| Steering Rack Finish | Black |
| Thread Length (in) | 2.354" |
| Total Turns Lock to Lock | 2.38 |
| Type | Complete Unit |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2005-2009 Buick Allure | All Trims | 6 Cyl 3.8L |
| 2003-2005 Buick Century | All Trims | All Engines |
| 2005-2009 Buick LaCrosse | All Trims | 6 Cyl 3.8L |
| 2003-2004 Buick Regal | All Trims | All Engines |
| 2000-2005 Chevrolet Impala | All Trims | All Engines |
| 2006-2007 Chevrolet Impala | All Trims | 6 Cyl 3.5L |
| 2006-2007 Chevrolet Impala | All Trims | 6 Cyl 3.9L |
| 2008-2011 Chevrolet Impala | All Trims | All Engines |
| 2000-2005 Chevrolet Monte Carlo | All Trims | All Engines |
| 2006 Chevrolet Monte Carlo | All Trims | 6 Cyl 3.9L |
