Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Cardone Reman |
| Part Number | 22-1012 |

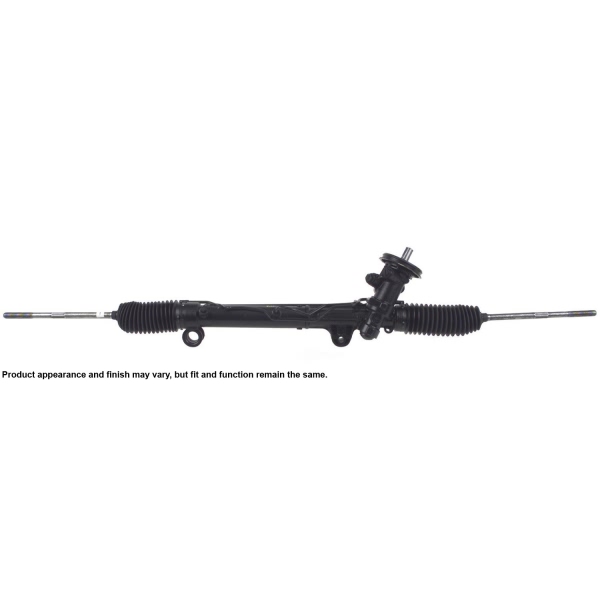

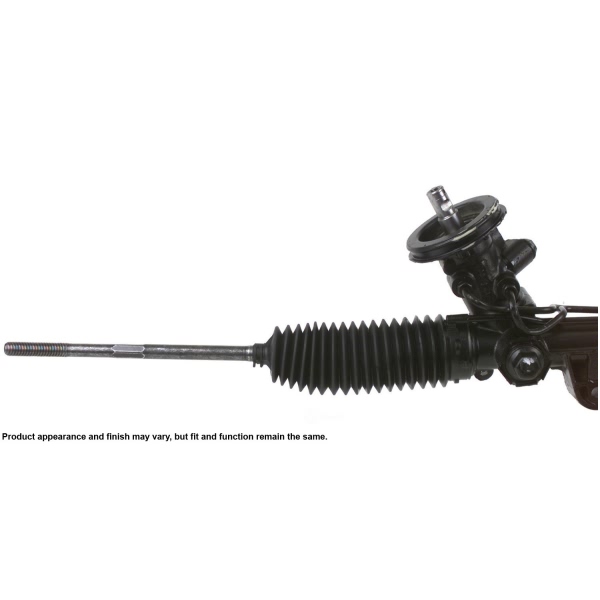

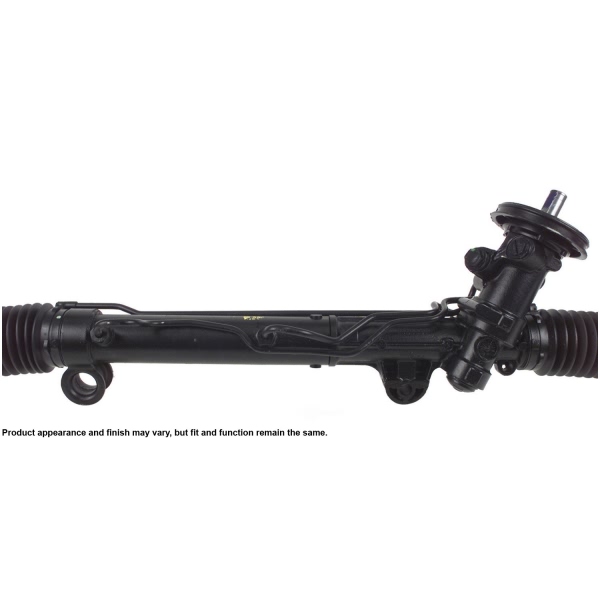

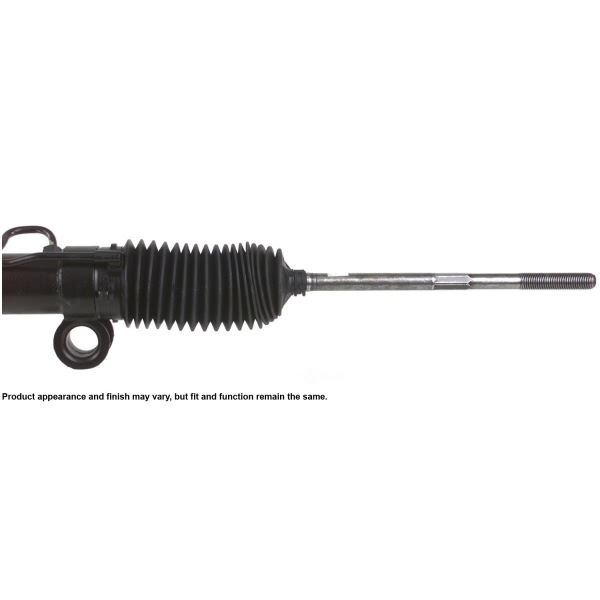

| Part Description | Remanufactured Hydraulic Power Rack and Pinion Complete Unit |
| Casting Material | Steel/Aluminum |
| Distance Between Mounting Holes (in) | 12.250" |
| Hose Port Type | O-Ring |
| Import or Domestic | Domestic |
| Input Shaft Diameter (in) | 0.785" |
| Input Shaft Length (in) | 1.75" |
| Number of Mounting Holes | 2 |
| Pressure Port Thread Size | M18 x 1.5 |
| Rack Length (in) | 48.750" |
| Return Port Thread Size | M16 x 1.5 |
| Steering Rack Finish | Black |
| Thread Length (in) | 2.444" |
| Total Turns Lock to Lock | 2.31 |
| Type | Complete Unit |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2004-2005 Chevrolet Impala | All Trims | All Engines |
| 2006-2007 Chevrolet Impala | All Trims | 8 Cyl 5.3L |
| 2008-2011 Chevrolet Impala | All Trims | All Engines |
| 2004-2005 Chevrolet Monte Carlo | All Trims | All Engines |
| 2006-2007 Chevrolet Monte Carlo | All Trims | 8 Cyl 5.3L |
