Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Cardone Reman |
| Part Number | 22-1147 |

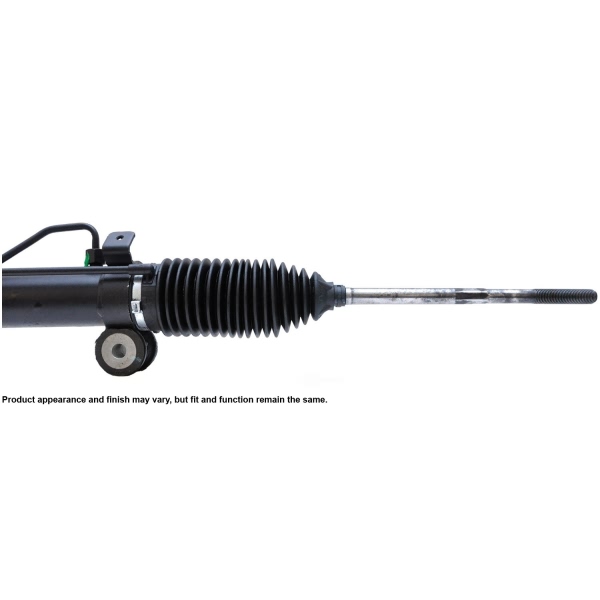

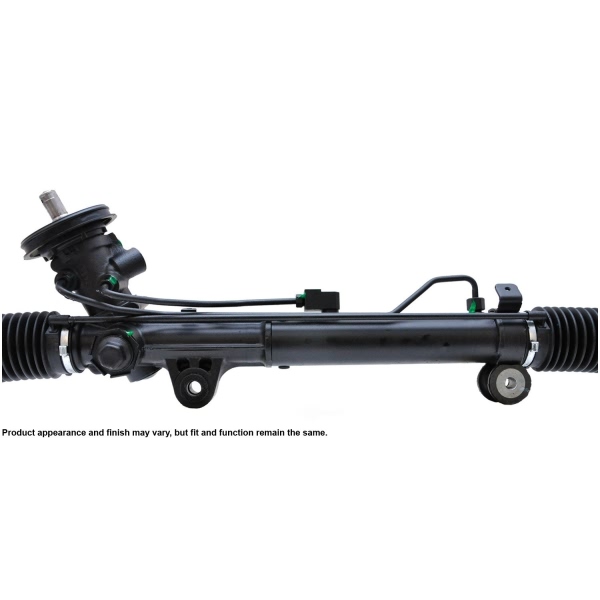

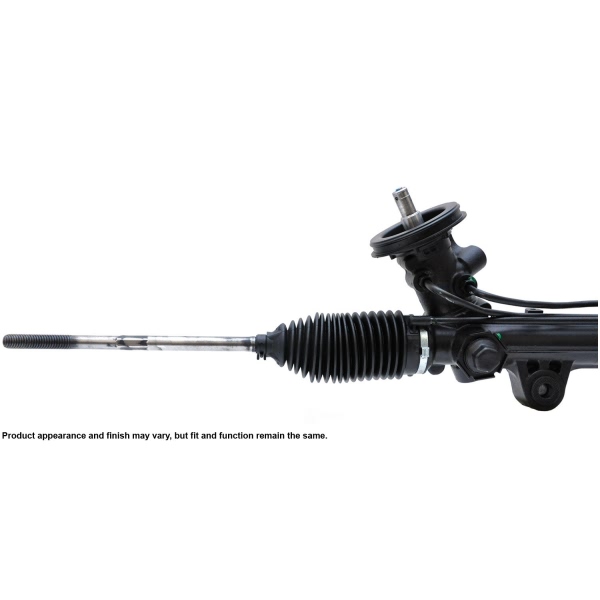

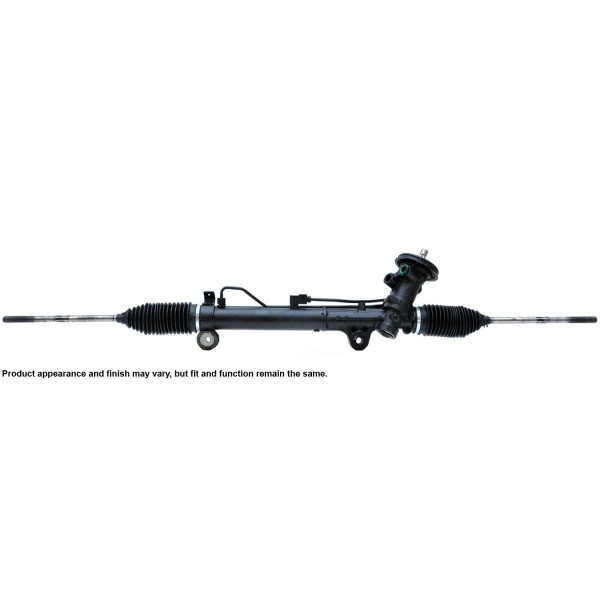

| Part Description | Remanufactured Hydraulic Power Rack and Pinion Complete Unit |
| Casting Material | Aluminum |
| Distance Between Mounting Holes (in) | 12.25" |
| Distance Between Mounting Holes (mm) | 311.15 mm |
| Hose Port Type | O-Ring |
| Input Shaft Diameter (in) | 0.784" |
| Input Shaft Diameter (mm) | 19.91 mm |
| Input Shaft Length (in) | 1.75" |
| Input Shaft Length (mm) | 44.45 mm |
| Number of Mounting Holes | 2 |
| Pressure Port Thread Size | M18 x 1.5 |
| Rack Length (in) | 49.62" |
| Rack Length (mm) | 1235.08 mm |
| Return Port Thread Size | M16 x 1.5 |
| Steering Rack Finish | Black |
| Thread Length (in) | 2.354" |
| Thread Length (mm) | 59.79 mm |
| Total Turns Lock to Lock | 2.18 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2012-2013 Chevrolet Impala | All Trims | All Engines |
| 2014-2016 Chevrolet Impala Limited | All Trims | All Engines |
