Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Cardone Reman |
| Part Number | 22-142 |

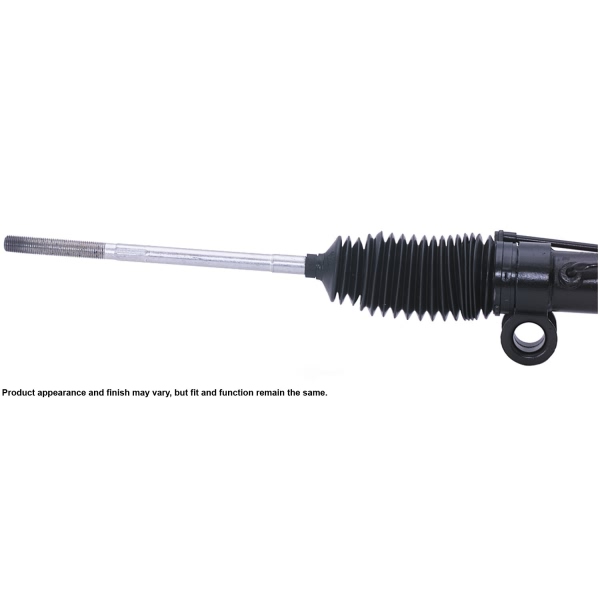

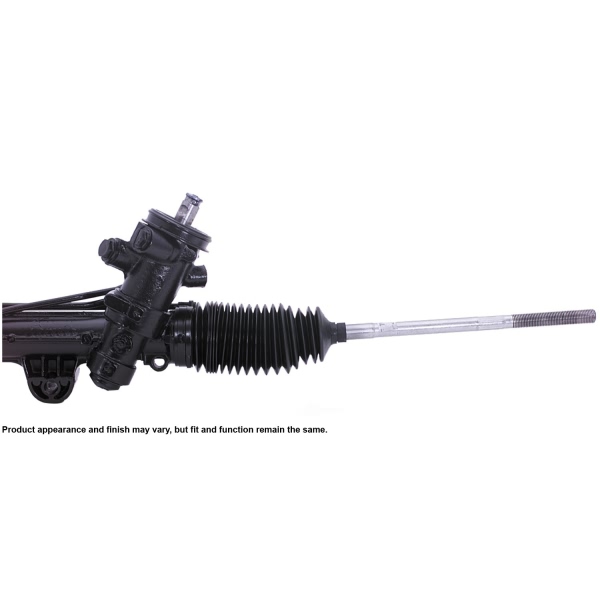

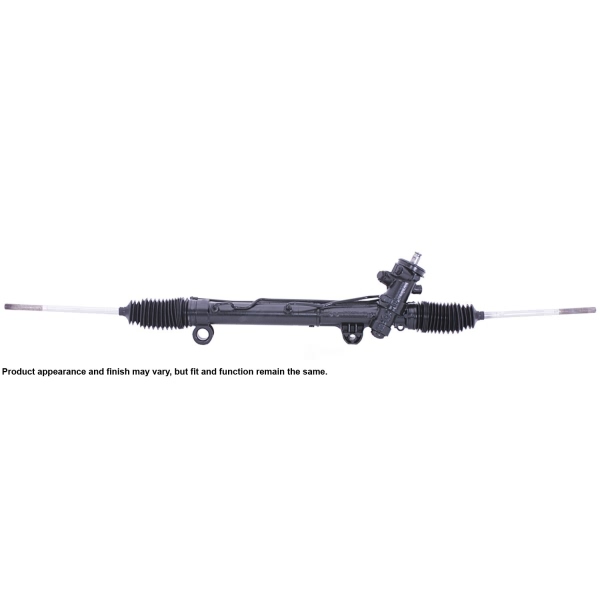

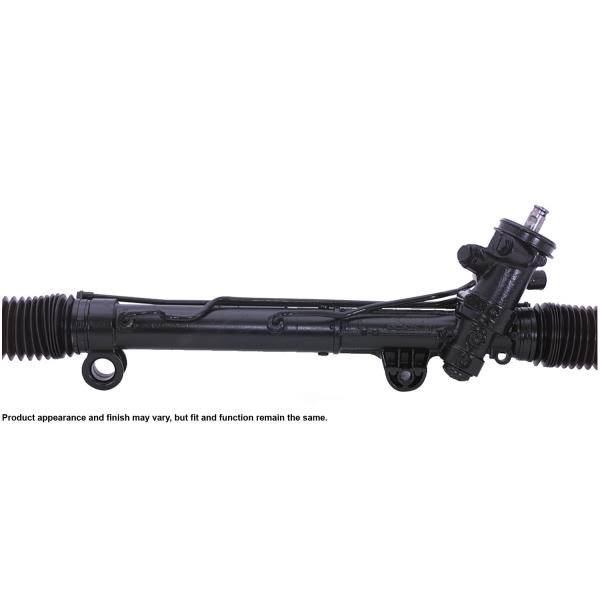

| Part Description | Remanufactured Hydraulic Power Rack and Pinion Complete Unit |
| Casting Material | Steel/Aluminum |
| Distance Between Mounting Holes (in) | 12.250" |
| Hose Port Type | O-Ring |
| Import or Domestic | Domestic |
| Input Shaft Diameter (in) | 0.658" |
| Input Shaft Length (in) | 1.125" |
| Number of Mounting Holes | 2 |
| Pressure Port Thread Size | M18 x 1.5 |
| Rack Length (in) | 48.625" |
| Return Port Thread Size | M16 x 1.5 |
| Steering Rack Finish | Black |
| Thread Length (in) | 2.5" |
| Total Turns Lock to Lock | 2.81 |
| Type | Complete Unit |
| Year Make Model | Trim | Engine |
|---|---|---|
| 1994-1996 Buick Regal | All Trims | All Engines |
| 1994 Chevrolet Lumina | Base | All Engines |
| 1994 Chevrolet Lumina | Euro | All Engines |
| 1995-1996 Chevrolet Lumina | All Trims | All Engines |
| 1995-1996 Chevrolet Monte Carlo | All Trims | All Engines |
| 1994-1996 Oldsmobile Cutlass Supreme | All Trims | All Engines |
| 1994-1995 Pontiac Grand Prix | All Trims | 6 Cyl 3.1L |
| 1994-1995 Pontiac Grand Prix | All Trims | 6 Cyl 3.4L |
| 1996 Pontiac Grand Prix | All Trims | All Engines |
