Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Cardone Reman |
| Part Number | 26-2039 |

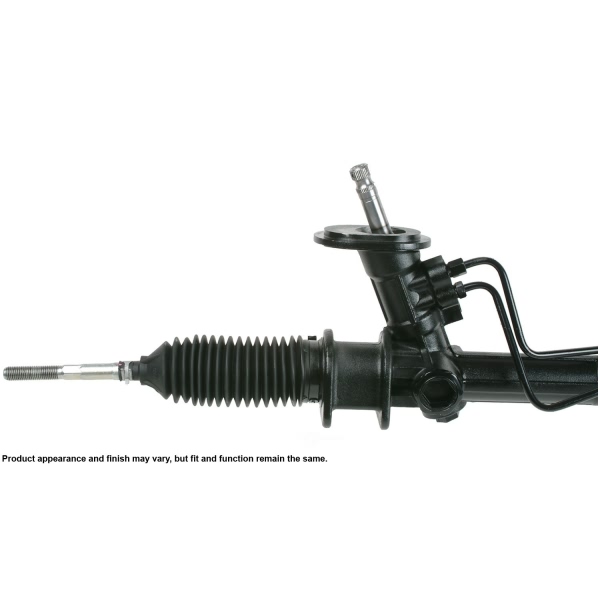

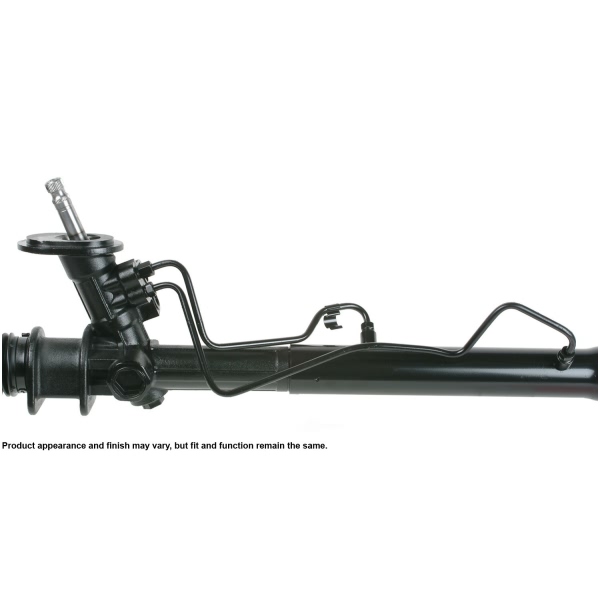

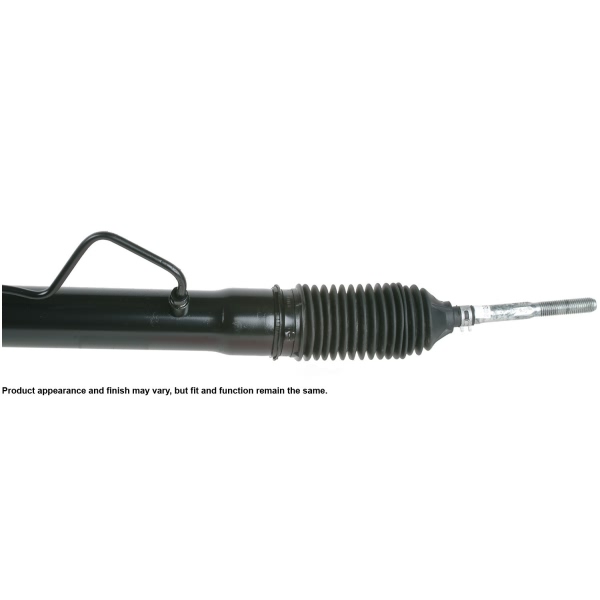

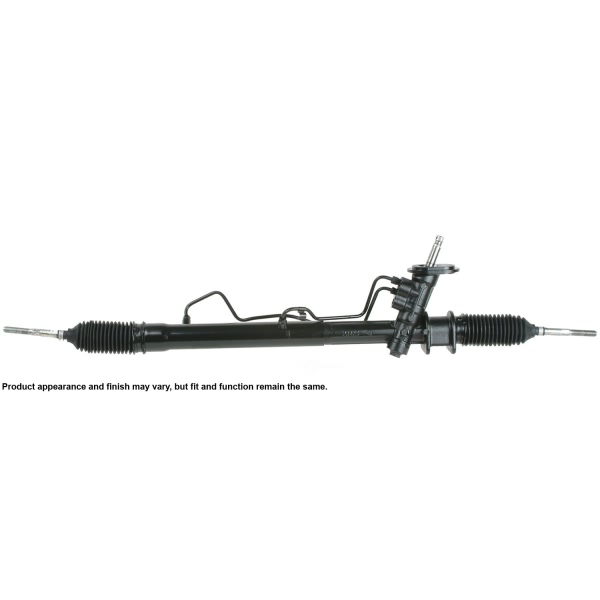

| Part Description | Remanufactured Hydraulic Power Rack and Pinion Complete Unit |
| Casting Material | Steel/Aluminum |
| Hose Port Type | O-Ring |
| Import or Domestic | Import |
| Input Shaft Diameter (in) | 0.618" |
| Input Shaft Length (in) | 2.375" |
| Number of Mounting Holes | 1 |
| Pressure Port Thread Size | M18 x 1.5 |
| Rack Length (in) | 41.063" |
| Return Port Thread Size | M16 x 1.5 |
| Steering Rack Finish | Black |
| Thread Length (in) | 1.817" |
| Total Turns Lock to Lock | 3 |
| Type | Complete Unit |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2004-2011 Chevrolet Aveo | All Trims | All Engines |
| 2006-2011 Chevrolet Aveo5 | All Trims | All Engines |
| 2007-2010 Pontiac G3 | All Trims | All Engines |
| 2009 Pontiac G3 Wave | All Trims | All Engines |
| 2005-2008 Pontiac Wave | All Trims | All Engines |
| 2005-2007 Pontiac Wave5 | All Trims | All Engines |
| 2004-2010 Suzuki Swift+ | All Trims | All Engines |
