Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Cardone Reman |
| Part Number | 26-2914 |

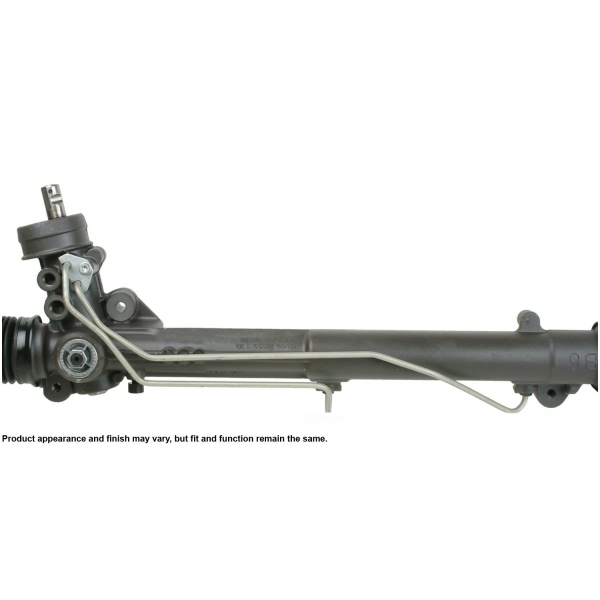

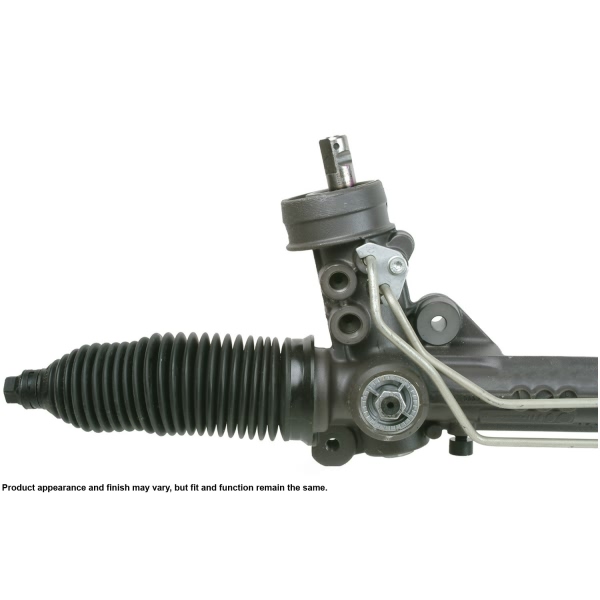

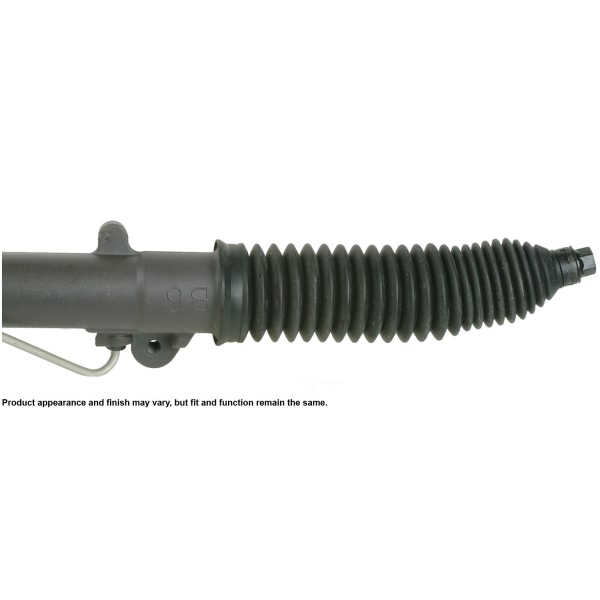

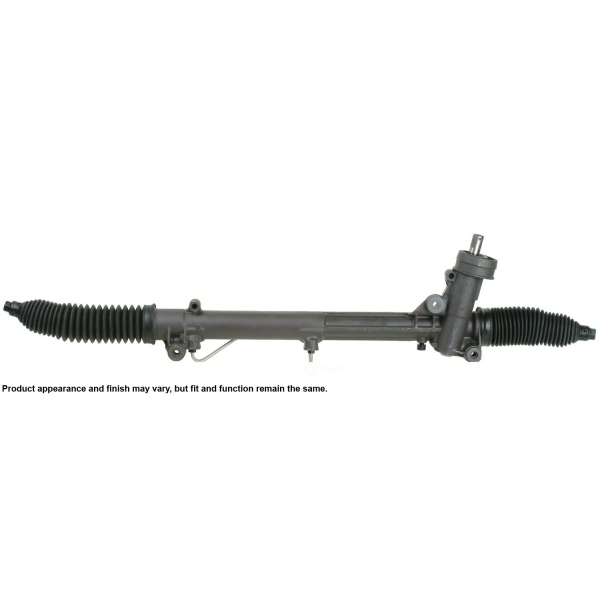

| Part Description | Remanufactured Hydraulic Power Rack and Pinion Complete Unit |
| Casting Material | Aluminum |
| Distance Between Mounting Holes (in) | 20.063" |
| Hose Port Type | Banjo/Washer |
| Import or Domestic | Import |
| Input Shaft Diameter (in) | 0.746" |
| Input Shaft Length (in) | 1.375" |
| Number of Mounting Holes | 3 |
| Pressure Port Thread Size | M14 x 1.5 |
| Rack Length (in) | 40.625" |
| Return Port Thread Size | M16 x 1.5 |
| Steering Rack Finish | Black |
| Thread Length (in) | 2" |
| Total Turns Lock to Lock | 2.81 |
| Type | Complete Unit |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2002-2003 Audi A4 | All Trims | All Engines |
| 2004 Audi A4 | Avant | All Engines |
| 2004 Audi A4 | Base | All Engines |
| 2004 Audi A4 | Cabrio | All Engines |
| 2004 Audi A4 | Confort | All Engines |
| 2004 Audi A4 | Luxury | All Engines |
| 2004 Audi A4 | S Line | All Engines |
| 2004 Audi A4 | Vangard | All Engines |
| 2005 Audi A4 | All Trims | All Engines |
| 2006 Audi A4 | All Trims | 4 Cyl 1.8L |
