Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Cardone Reman |
| Part Number | 26-2940 |

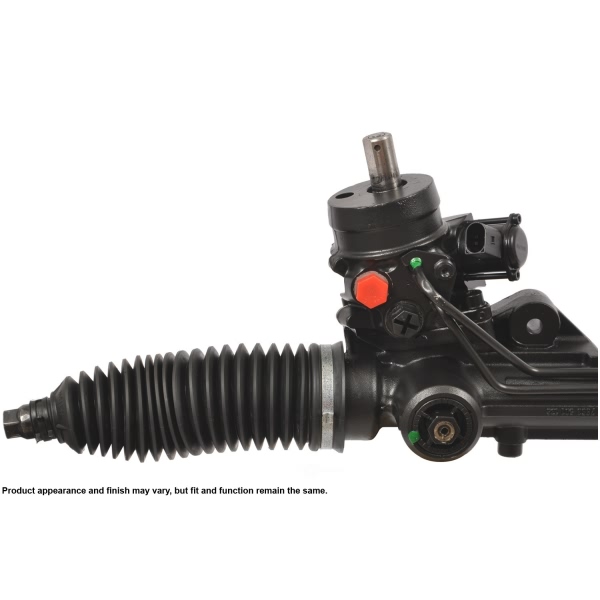

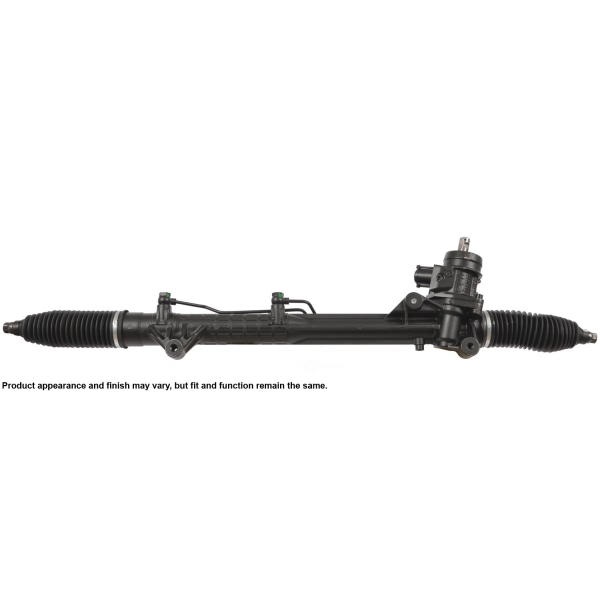

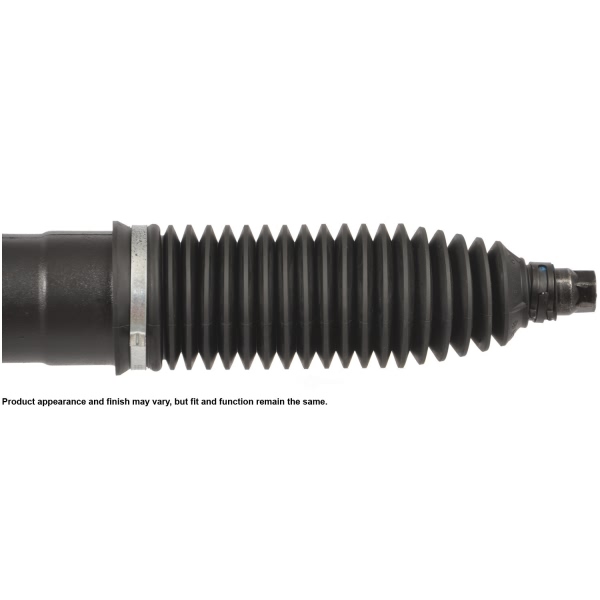

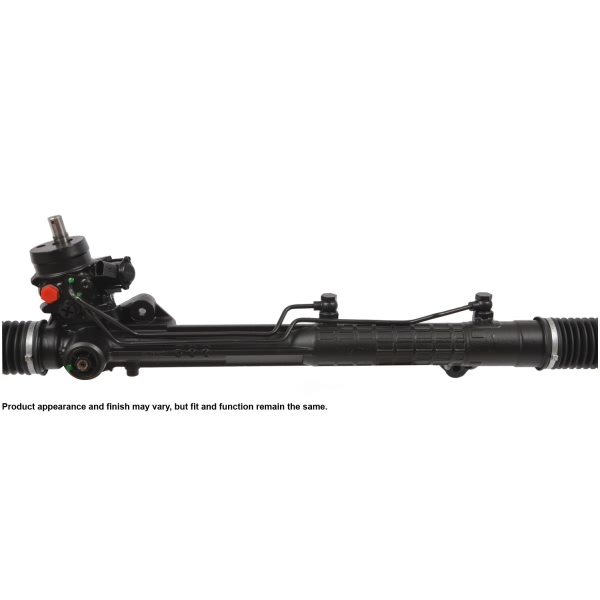

| Part Description | Remanufactured Hydraulic Power Rack and Pinion Complete Unit |
| Casting Material | Aluminum |
| Distance Between Mounting Holes (in) | 20.0" |
| Electronic Variable Orifice (EVO) | Without Rack-mounted EVO valve |
| Hose Port Type | Washer |
| Import or Domestic | Import |
| Input Shaft Diameter (in) | 0.786" |
| Input Shaft Length (in) | 1.313" |
| Number of Mounting Holes | 3 |
| Pressure Port Thread Size | M14 x 1.5 |
| Rack Length (in) | 42.125" |
| Return Port Thread Size | M16 x 1.5 |
| Steering Rack Finish | Black |
| Thread Length (in) | 1.080" |
| Total Turns Lock to Lock | 2.75 |
| Type | Complete Unit |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2006-2011 Audi A6 | All Trims | All Engines |
| 2005-2006 Audi A6 Quattro | All Trims | 6 Cyl 3.0L |
| 2005-2009 Audi A6 Quattro | All Trims | 6 Cyl 3.2L |
| 2008 Audi A6 Quattro | All Trims | All Engines |
| 2009-2011 Audi A6 Quattro | All Trims | 6 Cyl 3.0L |
