Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Cardone Reman |
| Part Number | 1G-1814 |

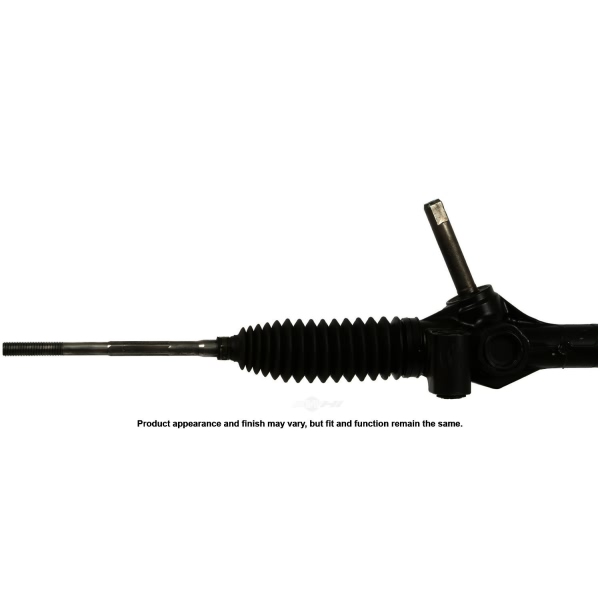

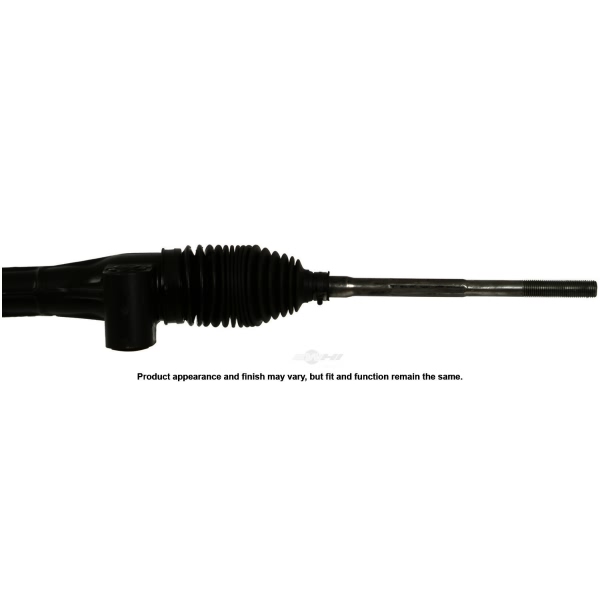

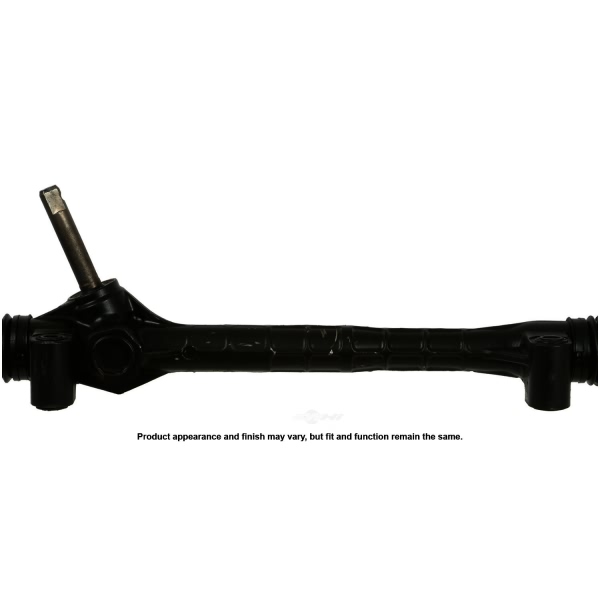

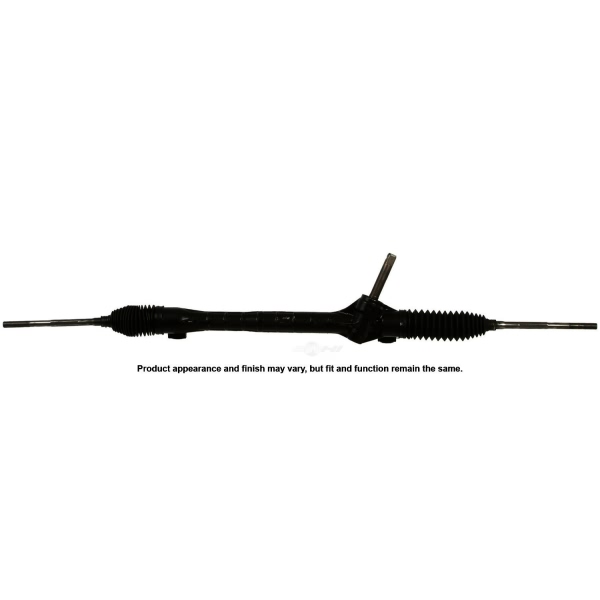

| Part Description | Remanufactured EPS Manual Rack and Pinion |
| Casting Material | Aluminum |
| Distance Between Mounting Holes (in) | 17.125" |
| Distance Between Mounting Holes (mm) | 434.98 mm |
| Input Shaft Diameter (in) | 0.747" |
| Input Shaft Diameter (mm) | 18.97 mm |
| Input Shaft Length (in) | 3.875" |
| Input Shaft Length (mm) | 98.43 mm |
| Number of Mounting Holes | 2 |
| Rack Length (in) | 47.500" |
| Rack Length (mm) | 1206.50 mm |
| Steering Rack Finish | Black |
| Thread Length (in) | 2.220" |
| Thread Length (mm) | 56.39 mm |
| Total Turns Lock to Lock | 3.50 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2006-2007 Chevrolet HHR | LS | All Engines |
| 2008-2009 Chevrolet HHR | All Trims | All Engines |
| 2010 Chevrolet HHR | LS | All Engines |
| 2010 Chevrolet HHR | LS Panel | All Engines |
| 2010 Chevrolet HHR | LT | All Engines |
| 2010 Chevrolet HHR | LT Panel | All Engines |
| 2011 Chevrolet HHR | All Trims | All Engines |
