Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Cardone Reman |
| Part Number | 1G-2694 |

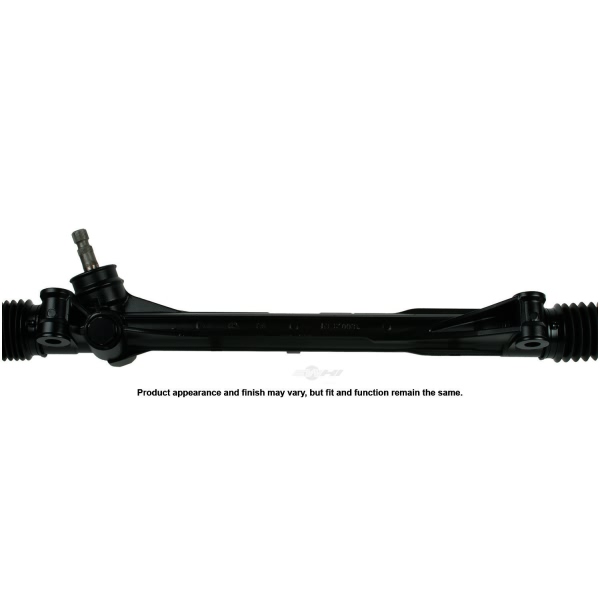

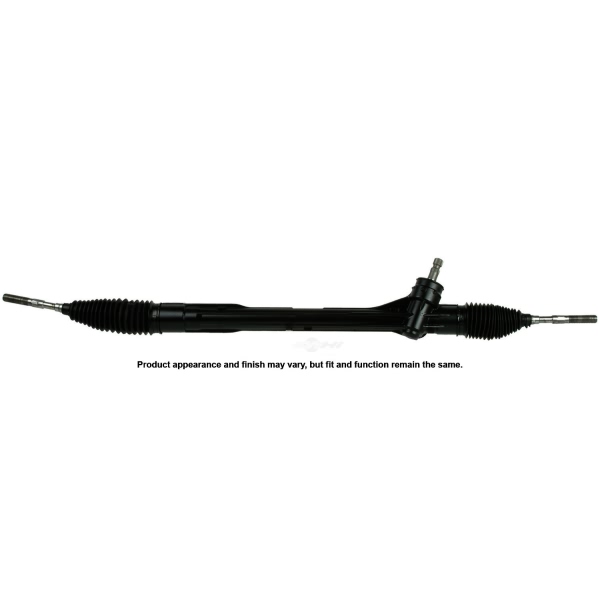

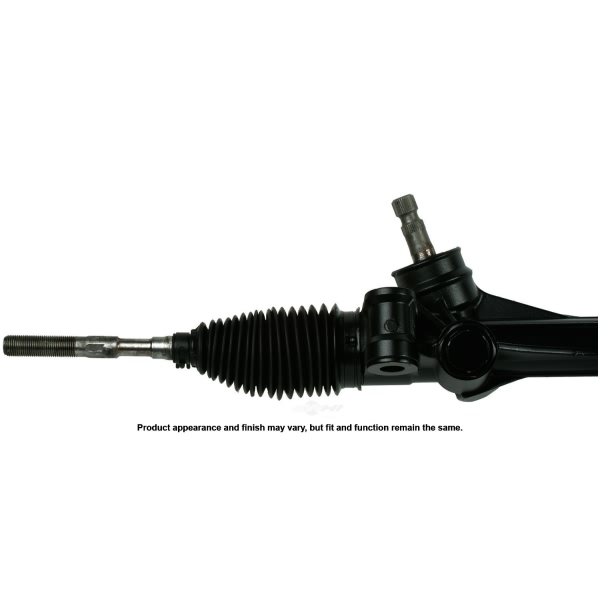

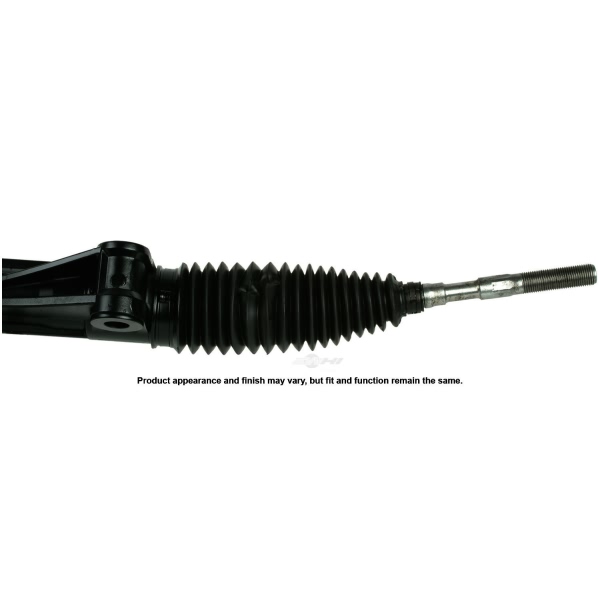

| Part Description | Remanufactured EPS Manual Rack and Pinion |
| Casting Material | Aluminum |
| Distance Between Mounting Holes (in) | 19.750" |
| Distance Between Mounting Holes (mm) | 501.65 mm |
| Input Shaft Diameter (in) | 0.748" |
| Input Shaft Diameter (mm) | 19.00 mm |
| Input Shaft Length (in) | 5.188" |
| Input Shaft Length (mm) | 131.76 mm |
| Number of Mounting Holes | 2 |
| Rack Length (in) | 43.688" |
| Rack Length (mm) | 1109.66 mm |
| Steering Rack Finish | Black |
| Thread Length (in) | 2.043" |
| Thread Length (mm) | 51.89 mm |
| Total Turns Lock to Lock | 2.813 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2006-2008 Toyota RAV4 | Base | 4 Cyl 2.4L |
| 2006-2008 Toyota RAV4 | Limited | 4 Cyl 2.4L |
| 2009-2010 Toyota RAV4 | Sport | 4 Cyl 2.5L |
| 2009-2012 Toyota RAV4 | Base | 4 Cyl 2.5L |
| 2009-2012 Toyota RAV4 | Limited | 4 Cyl 2.5L |
| 2013-2014 Toyota RAV4 | EV | All Engines |
