Vehicle Specific
Check if it fits by entering your vehicle info| Brand | CSF |
| Part Number | 10524 |

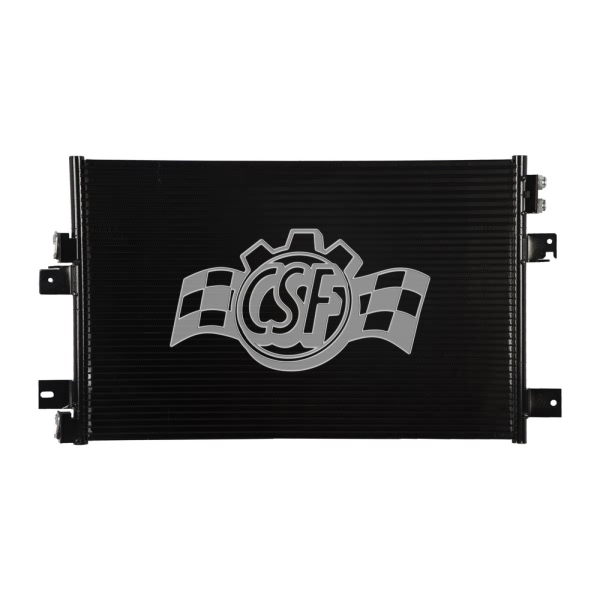

| Part Description | A/C Condenser |
| Box Height (in) | 3 3/4 |
| Box Length (in) | 34 |
| Box Weight (lbs) | 9 5/6 |
| Box Width (in) | 20 1/2 |
| Construction | parallel flow |
| Core Length | 25 |
| Core Thickness | 5/7 |
| Core Width | 16 4/5 |
| Hazardous Material | No |
| Inlet Tube | Block Fitting |
| UPC | 710353105245 |
| OE Part Number | 5191277AA, 68004053AA, CH3030228 |
| Outlet Tube | Block Fitting |
| Tech Note | Supplied with SUB COOL Design Technology & built-in Trans. Oil Cooler |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2011-2014 Chrysler 200 | All Trims | 4 Cyl 2.4L |
| 2011-2014 Chrysler 200 | All Trims | 6 Cyl 3.6L |
| 2007-2010 Chrysler Sebring | All Trims | 4 Cyl 2.4L |
| 2007-2010 Chrysler Sebring | All Trims | 6 Cyl 2.7L |
| 2007-2010 Chrysler Sebring | All Trims | 6 Cyl 3.5L |
| 2008-2010 Dodge Avenger | All Trims | 6 Cyl 2.7L |
| 2008-2010 Dodge Avenger | All Trims | 6 Cyl 3.5L |
| 2008-2014 Dodge Avenger | All Trims | 4 Cyl 2.4L |
| 2007-2009 Dodge Caliber | All Trims | 4 Cyl 1.8L |
| 2007-2009 Dodge Caliber | All Trims | 4 Cyl 2.0L |
