Vehicle Specific
Check if it fits by entering your vehicle info| Brand | CSF |
| Part Number | 3627 |

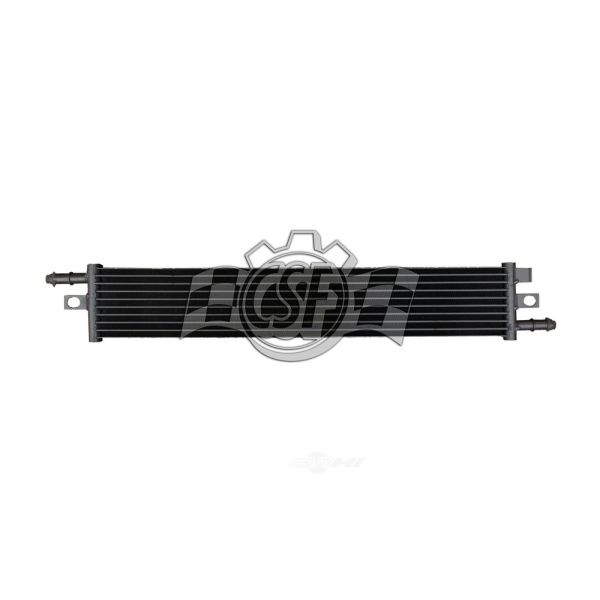

| Part Description | Drive Motor Inverter Cooler |
| Bottom Hose Fitting (in) | 5/8 Left |
| Box Height (in) | 8 |
| Box Length (in) | 32 7/8 |
| Box Weight (lbs) | 3 1/4 |
| Box Width (in) | 3 1/7 |
| Construction | parallel flow |
| Core Length | 24 |
| Core Material | Aluminum |
| Core Thickness | 10/16 |
| Core Width | 4 9/16 |
| Cross-flow/ Down-flow | Cross Flow |
| Hazardous Material | No |
| Inlet Length (in) | 4 7/8 |
| Inlet Tube | tube |
| Inlet Width (in) | 13/16 |
| No. Of Rows | 1 |
| Outlet Length(in) | 4 7/8 |
| Outlet Tube | tube |
| Outlet Width | 13/16 |
| Radiator Cap Supplied | No |
| Tank Material | Aluminum |
| Tech Note | O.E.M. style All Aluminum tanks & core model. |
| Top Hose Fitting (in) | 5/8 Right |
| UPC | 710353036273 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2010 Buick Allure | All Trims | 4 Cyl 2.4L |
| 2010-2016 Buick LaCrosse | All Trims | 4 Cyl 2.4L |
| 2012-2016 Buick Regal | All Trims | 4 Cyl 2.4L |
| 2014 Chevrolet Impala | All Trims | 4 Cyl 2.4L |
| 2013-2014 Chevrolet Malibu | All Trims | 4 Cyl 2.4L |
