Vehicle Specific
Check if it fits by entering your vehicle info| Brand | CSF |
| Part Number | 2314 |

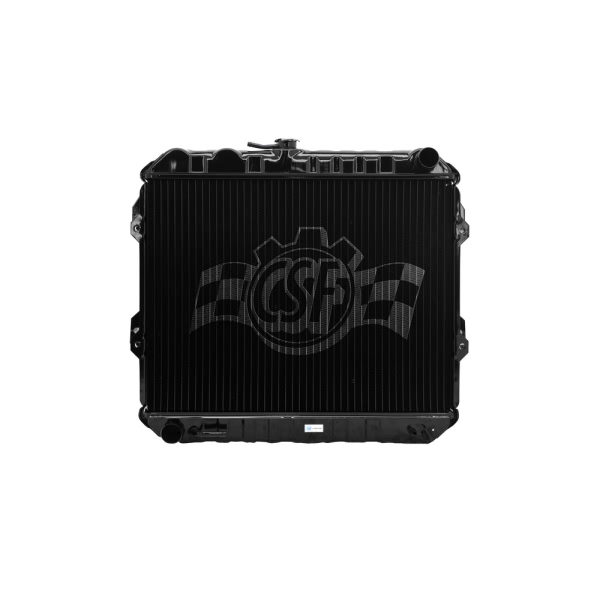

| Part Description | Engine Coolant Radiator |
| Bottom Hose Fitting (in) | 1 3/8 Left |
| Box Height (in) | 4 14/16 |
| Box Length (in) | 22 9/16 |
| Box Weight (lbs) | 16 |
| Box Width (in) | 25 5/16 |
| Core Length | 15 3/4 |
| Core Material | Copper |
| Core Thickness | 1 11/16 |
| Core Width | 20 13/16 |
| Cross-flow/ Down-flow | Down Flow |
| Csf Cap Number | 4502 |
| Hazardous Material | No |
| Inlet Length (in) | 20 11/16 |
| Inlet Width (in) | 2 1/4 |
| No. Of Rows | 3 |
| UPC | 710353023143 |
| OE Part Number | 1935, CU945, 16400-35360 (HD), 8010945 |
| Oil Cooler (in) | 14 3/4 (high-effeciency Concentric Type) |
| Outlet Length(in) | 20 11/16 |
| Outlet Width | 2 1/4 |
| Radiator Cap Supplied | No |
| Tank Material | Brass |
| Tech Note | Rugged ALL METAL model. |
| Top Hose Fitting (in) | 1 3/8 Right |
| Year Make Model | Trim | Engine |
|---|---|---|
| 1984-1988 Toyota 4Runner | All Trims | 4 Cyl 2.4L |
| 1992-1995 Toyota 4Runner | All Trims | 4 Cyl 2.4L |
| 1986-1995 Toyota Pickup | All Trims | 4 Cyl 2.4L |
