Vehicle Specific
Check if it fits by entering your vehicle info| Brand | CSF |
| Part Number | 2468 |

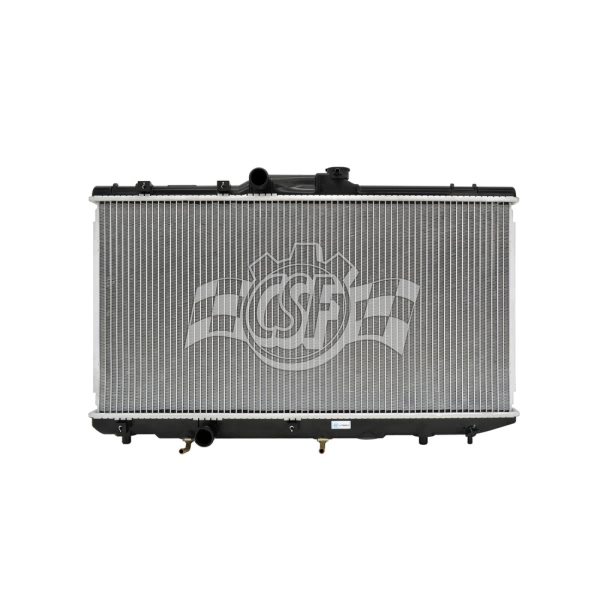

| Part Description | Engine Coolant Radiator |
| Bottom Hose Fitting (in) | 1 1/4 Left |
| Box Height (in) | 4 1/2 |
| Box Length (in) | 30 1/16 |
| Box Weight (lbs) | 9 |
| Box Width (in) | 20 3/16 |
| Core Length | 13 13/16 |
| Core Material | Aluminum |
| Core Thickness | 7/8 |
| Core Width | 27 1/16 |
| Cross-flow/ Down-flow | Down Flow |
| Csf Cap Number | 4514 |
| Hazardous Material | No |
| Inlet Length (in) | 27 15/16 |
| Inlet Width (in) | 1 5/8 |
| No. Of Rows | 1 |
| UPC | 710353024683 |
| OE Part Number | 52460777, 52460779, 52461723, 52461724, 52472193, 52472194, 94853501, 94853504, 94853505, 16400-15530, CU1409, 16400-02150, 16400-02110, 16400-16441, 221-3108, 16400-02141, 16400-16430, 8011409, 16400-02101, 16400-02100, 16400-02140, 16400-16440 |
| Oil Cooler (in) | 8 7/8 (high-effeciency Concentric Type) |
| Outlet Length(in) | 27 15/16 |
| Outlet Width | 1 5/8 |
| Radiator Cap Supplied | No |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core. |
| Top Hose Fitting (in) | 1 1/4 Centre |
| Year Make Model | Trim | Engine |
|---|---|---|
| 1993-1997 Geo Prizm | All Trims | 4 Cyl 1.6L |
| 1994-1997 Geo Prizm | All Trims | 4 Cyl 1.8L |
| 1993-1997 Toyota Corolla | All Trims | 4 Cyl 1.6L |
| 1993-1997 Toyota Corolla | All Trims | 4 Cyl 1.8L |
