Vehicle Specific
Check if it fits by entering your vehicle info| Brand | CSF |
| Part Number | 2469 |

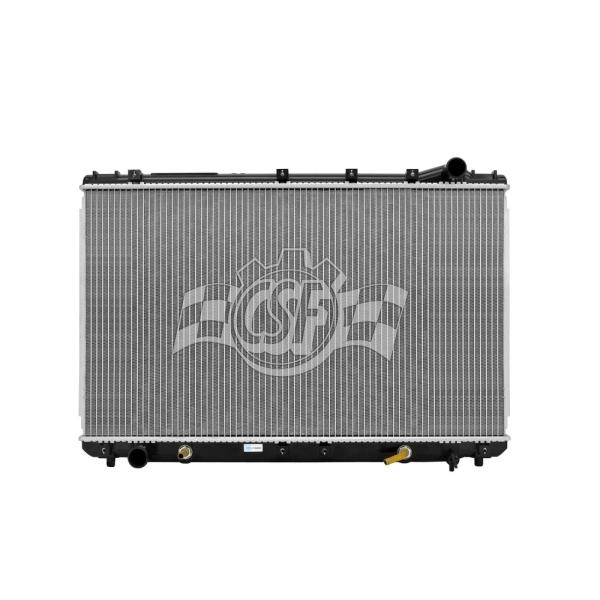

| Part Description | Engine Coolant Radiator |
| Bottom Hose Fitting (in) | 1 5/16 Left |
| Box Height (in) | 5 1/16 |
| Box Length (in) | 30 7/8 |
| Box Weight (lbs) | 10 |
| Box Width (in) | 22 9/16 |
| Core Length | 16 3/4 |
| Core Material | Aluminum |
| Core Thickness | 7/8 |
| Core Width | 28 1/4 |
| Cross-flow/ Down-flow | Down Flow |
| Hazardous Material | No |
| Inlet Length (in) | 28 11/16 |
| Inlet Width (in) | 1 5/8 |
| No. Of Rows | 1 |
| UPC | 710353024690 |
| OE Part Number | 16400-0A022, 16400-20040, 16400-0A010, 8011746, CU1746, 221-3109, 16400-0A040, 16400-20050, 16400-0A020 |
| Oil Cooler (in) | 14 3/4 (high-effeciency Concentric Type) |
| Outlet Length(in) | 28 11/16 |
| Outlet Width | 1 5/8 |
| Radiator Cap Supplied | No |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core. |
| Top Hose Fitting (in) | 1 5/16 Right |
| Year Make Model | Trim | Engine |
|---|---|---|
| 1994-1996 Lexus ES300 | All Trims | 6 Cyl 3.0L |
| 1995-1999 Toyota Avalon | All Trims | 6 Cyl 3.0L |
| 1994 Toyota Camry | All Trims | 4 Cyl 2.2L |
| 1994-1996 Toyota Camry | All Trims | 6 Cyl 3.0L |
