Vehicle Specific
Check if it fits by entering your vehicle info| Brand | CSF |
| Part Number | 2473 |

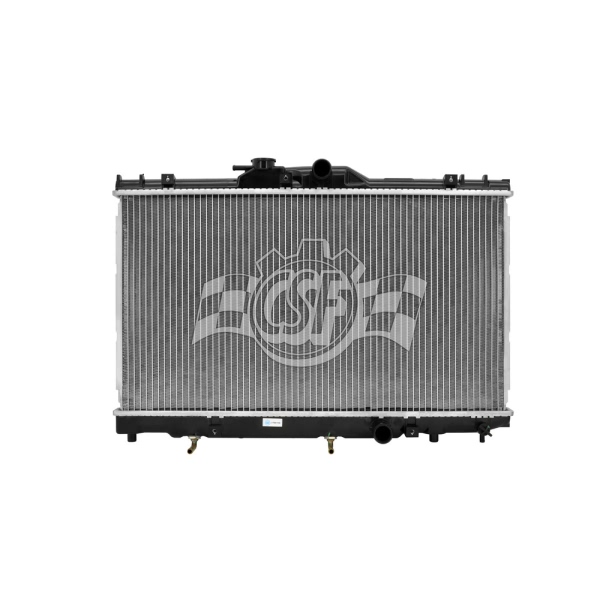

| Part Description | Engine Coolant Radiator |
| Bottom Hose Fitting (in) | 1 1/4 Right |
| Box Height (in) | 4 11/16 |
| Box Length (in) | 27 11/16 |
| Box Weight (lbs) | 7 |
| Box Width (in) | 20 3/16 |
| Core Length | 13 3/4 |
| Core Material | Aluminum |
| Core Thickness | 5/8 |
| Core Width | 24 3/4 |
| Cross-flow/ Down-flow | Down Flow |
| Csf Cap Number | 4514 |
| Hazardous Material | No |
| Inlet Length (in) | 25 1/2 |
| Inlet Width (in) | 1 5/8 |
| No. Of Rows | 1 |
| UPC | 710353024737 |
| OE Part Number | 16400-0D030, 52474582, 94856862, 2219, 16400-0D040, 8012198, CU2198, 8012219, 221-0515 |
| Oil Cooler (in) | 8 7/8 (high-effeciency Concentric Type) |
| Outlet Length(in) | 25 1/2 |
| Outlet Width | 1 5/8 |
| Radiator Cap Supplied | No |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core. |
| Top Hose Fitting (in) | 1 1/4 Centre |
| Year Make Model | Trim | Engine |
|---|---|---|
| 1998-2002 Chevrolet Prizm | All Trims | 4 Cyl 1.8L |
| 1998-2002 Toyota Corolla | All Trims | 4 Cyl 1.8L |
