Vehicle Specific
Check if it fits by entering your vehicle info| Brand | CSF |
| Part Number | 2576 |

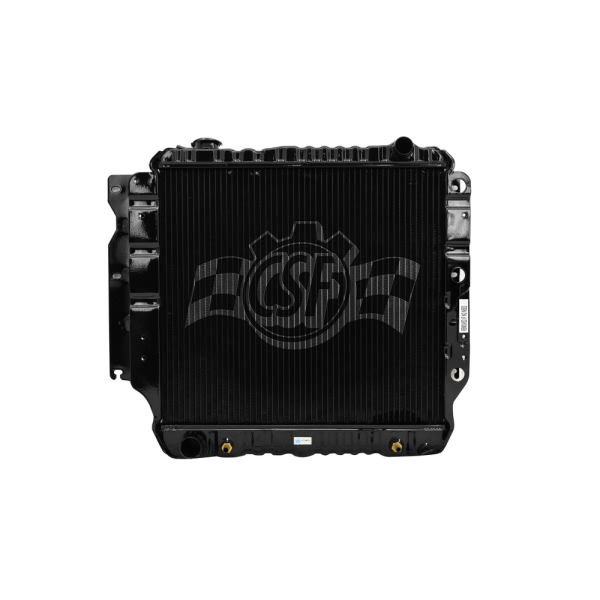

| Part Description | Engine Coolant Radiator |
| Bottom Hose Fitting (in) | 1 1/2 Left |
| Box Height (in) | 5 11/16 |
| Box Length (in) | 28 1/16 |
| Box Weight (lbs) | 19 |
| Box Width (in) | 25 5/16 |
| Core Length | 18 1/8 |
| Core Material | Copper |
| Core Thickness | 1 1/4 |
| Core Width | 20 |
| Cross-flow/ Down-flow | Down Flow |
| Csf Cap Number | 4501 |
| Hazardous Material | No |
| Inlet Length (in) | 20 1/16 |
| Inlet Width (in) | 2 |
| No. Of Rows | 2 |
| UPC | 710353025765 |
| OE Part Number | 52004781, 52006122, 52006123, 52006124, 52006125, 52006126, 52007227, 52007228, 52028112, 52028114, 52028120, 52029160, 52040229, 52040285, 52040286, 52040287, 52040288, 8952040229, 8952040285, 8952040286, 8952040287, 8952040288, 52080181, 8011682, 801101 |
| Oil Cooler (in) | 12 (high-effeciency Concentric Type) |
| Outlet Length(in) | 20 1/16 |
| Outlet Width | 2 |
| Radiator Cap Supplied | No |
| Tank Material | Brass |
| Tech Note | Rugged ALL METAL Multifit model; Supplied with snap-on & push-on oil cooler fittings; Removable bracket for applications with A/C. |
| Top Hose Fitting (in) | 1 1/4 Right |
| Year Make Model | Trim | Engine |
|---|---|---|
| 1987-1995 Jeep Wrangler | All Trims | 4 Cyl 2.5L |
| 1991-1995 Jeep Wrangler | All Trims | 6 Cyl 4.0L |
| 1997-2002 Jeep Wrangler | All Trims | 4 Cyl 2.5L |
| 1997-2002 Jeep Wrangler | All Trims | 6 Cyl 4.0L |
