Check if it fits by entering your vehicle info| Brand | CSF |
| Part Number | 2602 |

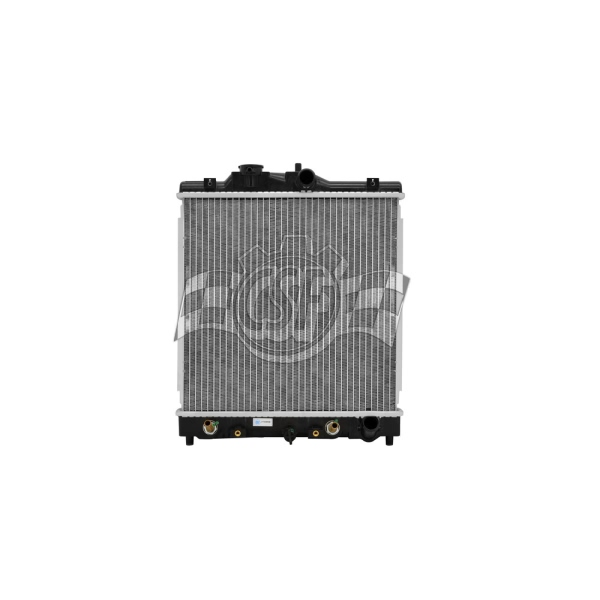

| Part Description | Engine Coolant Radiator |
| Bottom Hose Fitting (in) | 1 1/8 Right |
| Box Height (in) | 5 1/16 |
| Box Length (in) | 16 1/2 |
| Box Weight (lbs) | 5 |
| Box Width (in) | 19 13/16 |
| Core Length | 13 3/4 |
| Core Material | Aluminum |
| Core Thickness | 7/8 |
| Core Width | 13 11/16 |
| Cross-flow/ Down-flow | Down Flow |
| Csf Cap Number | 4513 |
| Hazardous Material | No |
| Inlet Length (in) | 14 3/8 |
| Inlet Width (in) | 1 5/8 |
| No. Of Rows | 1 |
| UPC | 710353026021 |
| OE Part Number | 19010-P2R-A51, 19010-P2J-902, 221-3208, 8012274, 19010-P2R-A01, 19010-P2K-014, 19010-P2K-013, 8011328 |
| Oil Cooler (in) | 7 7/8 (high-effeciency Concentric Type) |
| Outlet Length(in) | 14 3/8 |
| Outlet Width | 1 5/8 |
| Radiator Cap Supplied | No |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core;Multifit model to accommodate various fan shrouds. |
| Top Hose Fitting (in) | 1 1/8 Centre |
| Year Make Model | Trim | Engine |
|---|---|---|
| 1996-2000 Honda Civic | EX | 4 Cyl 1.6L |
| 1996-2000 Honda Civic | HX | 4 Cyl 1.6L |
| 1998-2000 Honda Civic | GX | 4 Cyl 1.6L |
| 1996-1997 Honda Civic del Sol | Si | 4 Cyl 1.6L |
