Vehicle Specific
Check if it fits by entering your vehicle info| Brand | CSF |
| Part Number | 2603 |

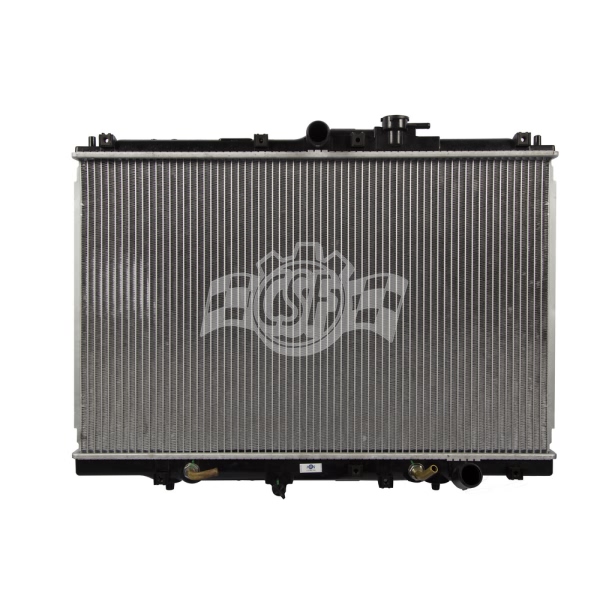

| Part Description | Engine Coolant Radiator |
| Bottom Hose Fitting (in) | 1 1/4 Right |
| Box Height (in) | 5 4/16 |
| Box Length (in) | 29 7/16 |
| Box Weight (lbs) | 12 |
| Box Width (in) | 23 1/8 |
| Core Length | 16 3/4 |
| Core Material | Aluminum |
| Core Thickness | 7/8 |
| Core Width | 26 11/16 |
| Cross-flow/ Down-flow | Down Flow |
| Csf Cap Number | 4514 |
| Hazardous Material | No |
| Inlet Length (in) | 27 1/4 |
| Inlet Width (in) | 1 5/8 |
| No. Of Rows | 1 |
| UPC | 710353026038 |
| OE Part Number | 5-86206-020-0, CU1815, 8011815, 19010-P1E-A51, 5-86202-357-0, 19010-PEA-901, 221-3203 |
| Oil Cooler (in) | 12 13/16 (high-effeciency Concentric Type) |
| Outlet Length(in) | 27 1/4 |
| Outlet Width | 1 5/8 |
| Radiator Cap Supplied | No |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core. |
| Top Hose Fitting (in) | 1 1/4 Centre |
| Year Make Model | Trim | Engine |
|---|---|---|
| 1995-1997 Honda Odyssey | All Trims | 4 Cyl 2.2L |
| 1998 Honda Odyssey | All Trims | 4 Cyl 2.3L |
| 1996-1997 Isuzu Oasis | All Trims | 4 Cyl 2.2L |
| 1998-1999 Isuzu Oasis | All Trims | 4 Cyl 2.3L |
