Vehicle Specific
Check if it fits by entering your vehicle info| Brand | CSF |
| Part Number | 2628 |

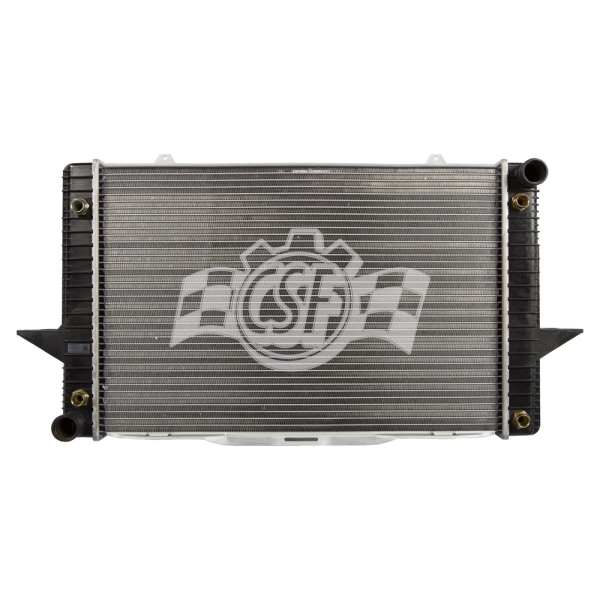

| Part Description | Engine Coolant Radiator |
| Bottom Hose Fitting (in) | 1 3/8 Left |
| Box Height (in) | 6 |
| Box Length (in) | 37 |
| Box Weight (lbs) | 15 |
| Box Width (in) | 24 |
| Core Length | 23 1/4 |
| Core Material | Aluminum |
| Core Thickness | 1 5/8 |
| Core Width | 15 5/16 |
| Cross-flow/ Down-flow | Cross Flow |
| Hazardous Material | No |
| Inlet Length (in) | 15 7/8 |
| Inlet Width (in) | 1 13/16 |
| No. Of Rows | 1 |
| Oil Cooler (in) | 11 (high-effeciency Plate Type); 12 5/8 (high-effeciency Plate Type) |
| Outlet Length(in) | 15 7/8 |
| Outlet Width | 1 3/4 |
| Radiator Cap Supplied | No |
| Tank Material | Plastic |
| Tech Note | O.E.M style Plastic tanks & Aluminum core;Multifit model with 2 oil coolers & quick connect oil coolers fittings. |
| Top Hose Fitting (in) | 1 3/8 Right |
| Year Make Model | Trim | Engine |
|---|---|---|
| 1994-1997 Volvo 850 | All Trims | 5 Cyl 2.3L |
| 1997 Volvo 850 | All Trims | 5 Cyl 2.4L |
| 1998 Volvo C70 | All Trims | 5 Cyl 2.3L |
| 1998 Volvo C70 | All Trims | 5 Cyl 2.4L |
| 1998 Volvo S70 | All Trims | 5 Cyl 2.3L |
| 1998 Volvo S70 | All Trims | 5 Cyl 2.4L |
| 1998 Volvo V70 | All Trims | 5 Cyl 2.3L |
| 1998 Volvo V70 | All Trims | 5 Cyl 2.4L |
