Vehicle Specific
Check if it fits by entering your vehicle info| Brand | CSF |
| Part Number | 2670 |

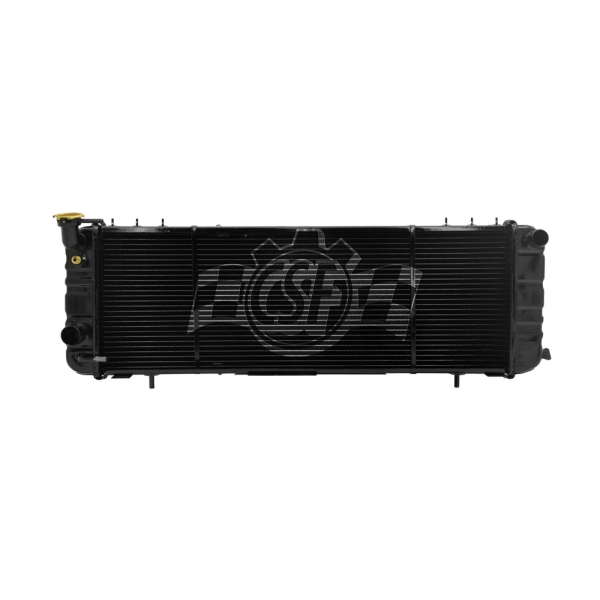

| Part Description | Engine Coolant Radiator |
| Bottom Hose Fitting (in) | 1 1/2 Left |
| Box Height (in) | 8 5/8 |
| Box Length (in) | 38 3/4 |
| Box Weight (lbs) | 16 |
| Box Width (in) | 16 1/16 |
| Core Length | 31 |
| Core Material | Copper |
| Core Thickness | 1 1/4 |
| Core Width | 10 15/16 |
| Cross-flow/ Down-flow | Cross Flow |
| Csf Cap Number | 4501 |
| Hazardous Material | No |
| Inlet Length (in) | 11 1/8 |
| Inlet Width (in) | 2 1/2 |
| No. Of Rows | 2 |
| UPC | 710353026700 |
| OE Part Number | 52004921, 52006341, 52028131, 52028134, 52030000, 52079682, 52079693, 52080104, 52080115, 53007135, 895 2004 917, 8011193, 895 2029 045, CU1193 |
| Oil Cooler (in) | 7 1/2 (high-effeciency Concentric Type) |
| Outlet Length(in) | 11 1/8 |
| Outlet Width | 2 1/2 |
| Radiator Cap Supplied | No |
| Tank Material | Brass |
| Tech Note | Rugged ALL METAL model; Condenser mounts on top bracket, bumper side. |
| Top Hose Fitting (in) | 1 1/4 Right |
| Year Make Model | Trim | Engine |
|---|---|---|
| 1991-2001 Jeep Cherokee | All Trims | 6 Cyl 4.0L |
| 1998 Jeep Cherokee | All Trims | 4 Cyl 2.5L |
| 2000 Jeep Cherokee | All Trims | 4 Cyl 2.5L |
