Vehicle Specific
Check if it fits by entering your vehicle info| Brand | CSF |
| Part Number | 2708 |

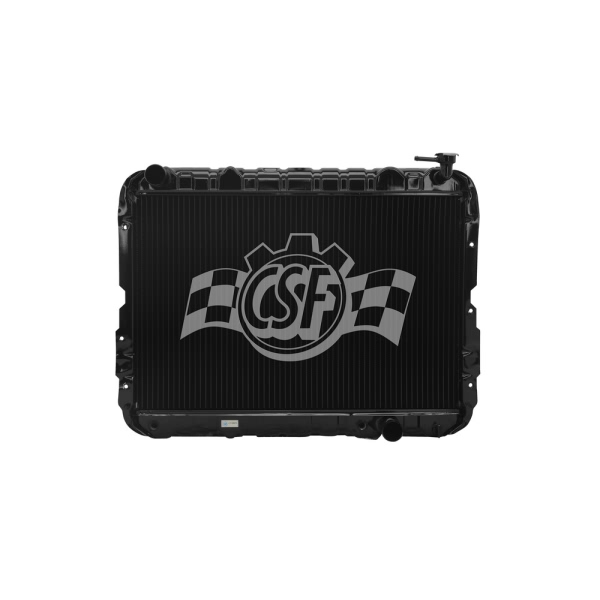

| Part Description | Engine Coolant Radiator |
| Bottom Hose Fitting (in) | 1 1/2 Right |
| Box Height (in) | 7 4/16 |
| Box Length (in) | 22 3/4 |
| Box Weight (lbs) | 26 |
| Box Width (in) | 28 11/16 |
| Core Length | 15 3/4 |
| Core Material | Copper |
| Core Thickness | 2 5/16 |
| Core Width | 23 15/16 |
| Cross-flow/ Down-flow | Down Flow |
| Csf Cap Number | 4502 |
| Hazardous Material | No |
| Inlet Length (in) | 23 15/16 |
| Inlet Width (in) | 2 13/16 |
| No. Of Rows | 4 |
| UPC | 710353027080 |
| OE Part Number | 16400-61051, 12, CU12 |
| Oil Cooler (in) | 15 3/8 (high-effeciency Concentric Type) |
| Outlet Length(in) | 23 15/16 |
| Outlet Width | 2 13/16 |
| Radiator Cap Supplied | No |
| Tank Material | Brass |
| Tech Note | Rugged ALL METAL model. |
| Top Hose Fitting (in) | 1 1/2 Left |
| Year Make Model | Trim | Engine |
|---|---|---|
| 1981-1987 Toyota Land Cruiser | All Trims | 4 Cyl 3.4L |
| 1981-1987 Toyota Land Cruiser | All Trims | 6 Cyl 4.2L |
| 1987 Toyota Land Cruiser | All Trims | 4 Cyl 2.4L |
