Vehicle Specific
Check if it fits by entering your vehicle info| Brand | CSF |
| Part Number | 2804 |

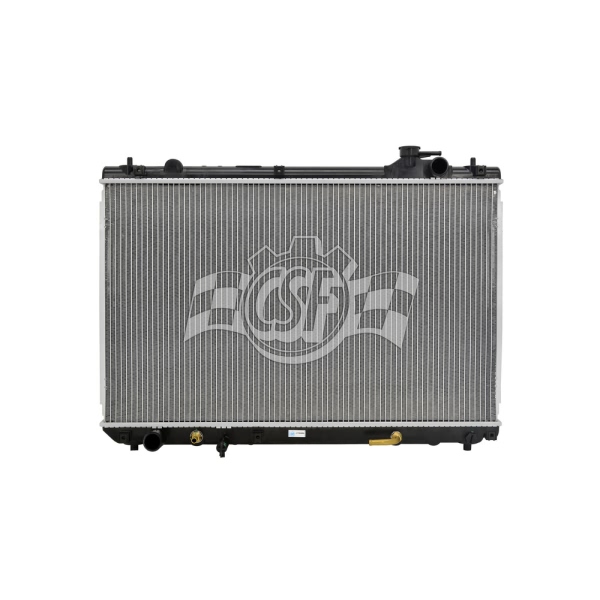

| Part Description | Engine Coolant Radiator |
| Bottom Hose Fitting (in) | 1 3/8 Left |
| Box Height (in) | 5 14/16 |
| Box Length (in) | 31 5/8 |
| Box Weight (lbs) | 13 |
| Box Width (in) | 24 5/16 |
| Core Length | 17 11/16 |
| Core Material | Aluminum |
| Core Thickness | 7/8 |
| Core Width | 29 1/16 |
| Cross-flow/ Down-flow | Down Flow |
| Csf Cap Number | 4514 |
| Hazardous Material | No |
| Inlet Length (in) | 29 1/2 |
| Inlet Width (in) | 1 5/8 |
| No. Of Rows | 1 |
| UPC | 710353028049 |
| OE Part Number | 2542, 16400-20190, CU2543, 2543, 16400-20200, 221-3166, 8012272 |
| Oil Cooler (in) | 14 3/4 (high-effeciency Concentric Type) |
| Outlet Length(in) | 29 1/2 |
| Outlet Width | 1 5/8 |
| Radiator Cap Supplied | No |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core. |
| Top Hose Fitting (in) | 1 3/8 Right |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2002-2003 Lexus RX300 | All Trims | 6 Cyl 3.0L |
